Top End Piston Kit 81-81 Yamaha It 250 70mm Standard Vintco KTY44-00

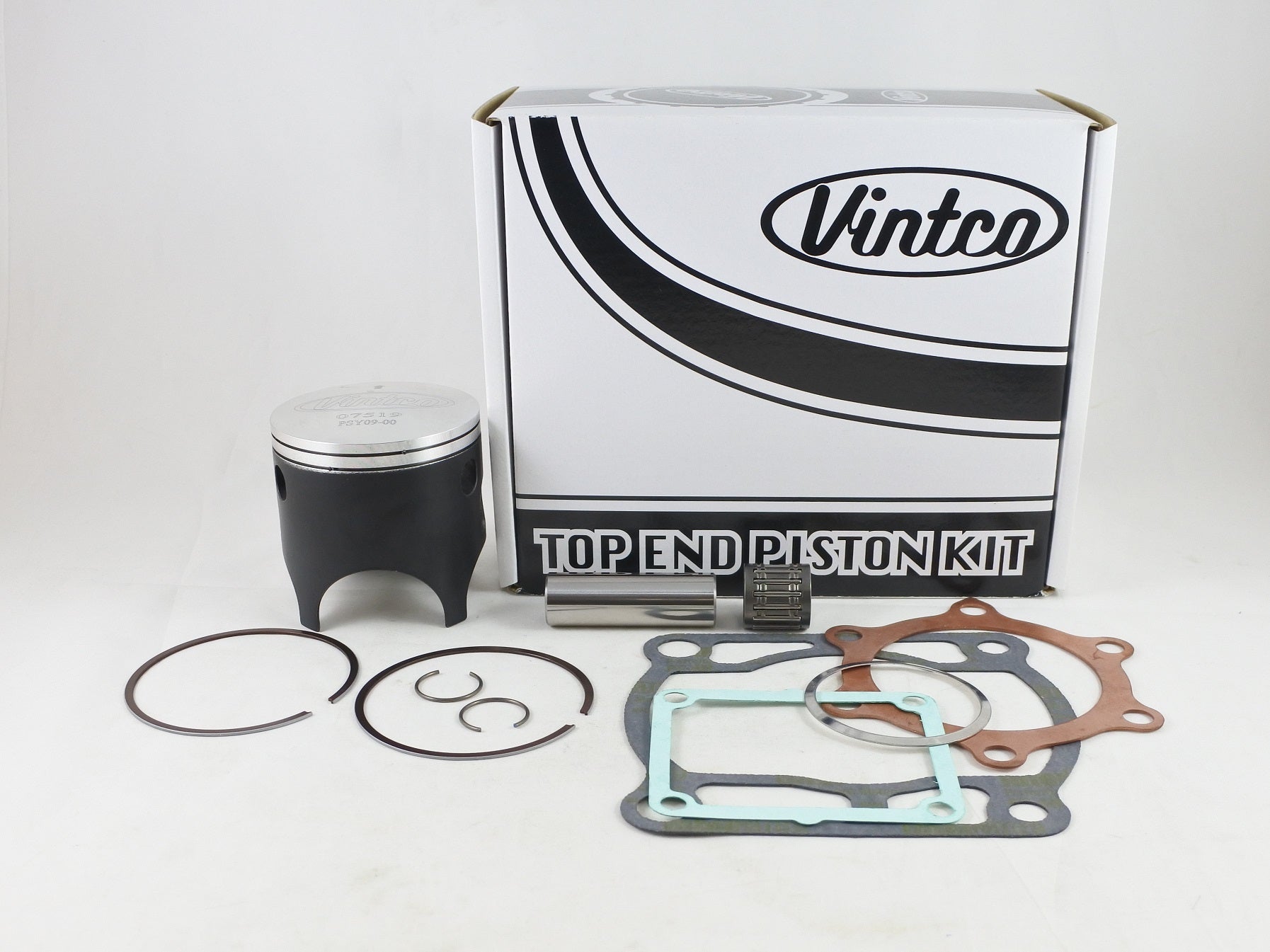

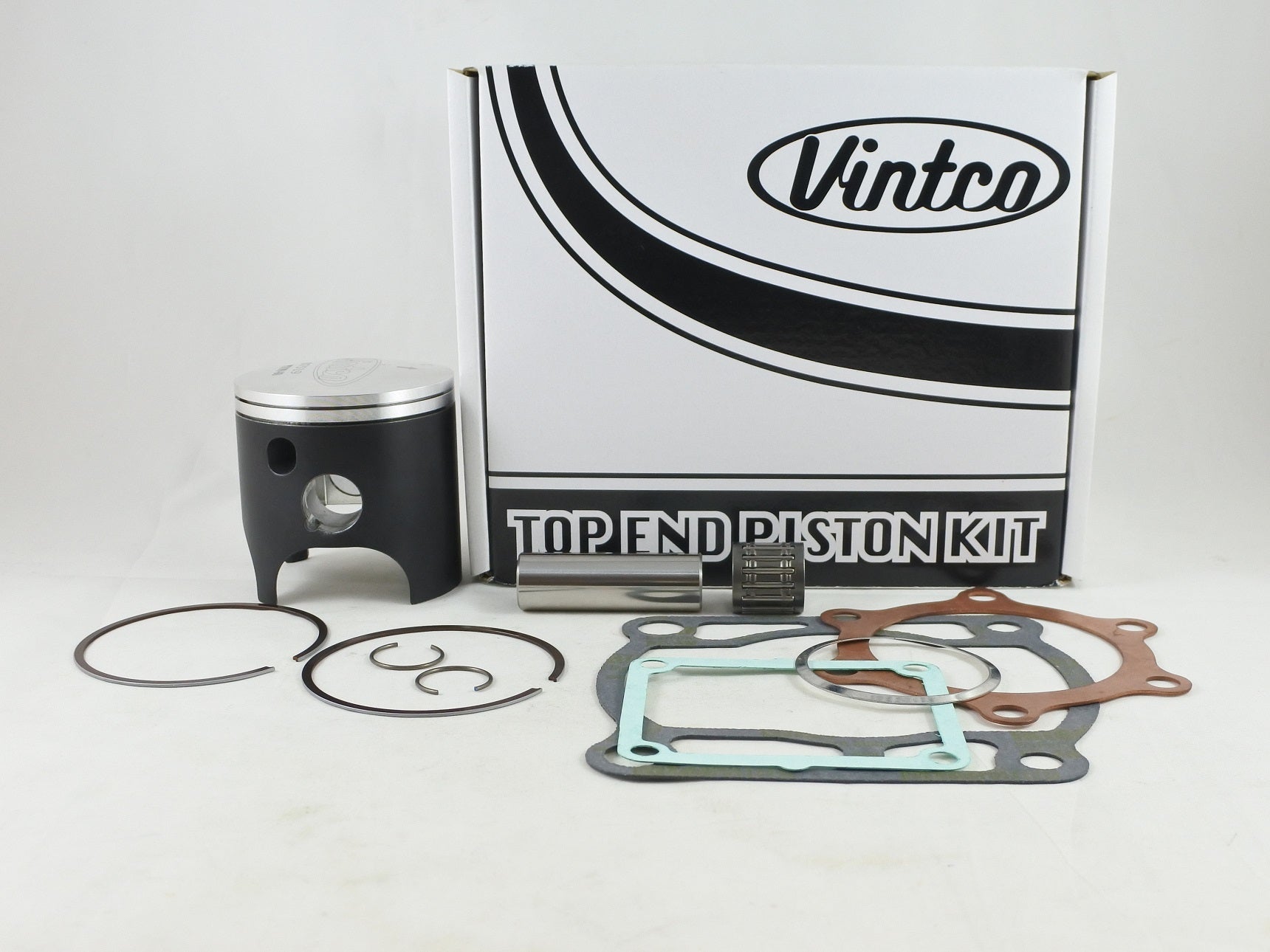

Top end piston kit for the 1981 Yamaha IT250, supplied as a standard-size 70 mm package containing the piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket and wrist pin bearing. The kit price includes a 10% discount compared with purchasing the items individually.

Features

• Complete top end piston kit
• Includes piston, key top end gaskets and wrist pin bearing
• Includes cylinder head, cylinder base, intake and exhaust pipe gaskets
• Suitable for standard-bore top end servicing

Specifications

• VintCo Part Number: KTY44-00
• Nominal piston size: 70 mm standard
• Piston diameter: 69.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MOS2 break-in coating
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 1W3-11181-00-00
• Cylinder base gasket: 3R4-11351-01-00
• Intake gasket: 80L-13621-01-00
• Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

• 1981 Yamaha IT250
