TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5
  • TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5
TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5

TOP END PISTON KIT 81-81 YAMAHA IT 250 70.5mm +0.5mm OVER VINTCO KTY44-0.5

£246.51 GBP
Taxes included. Shipping calculated at checkout.

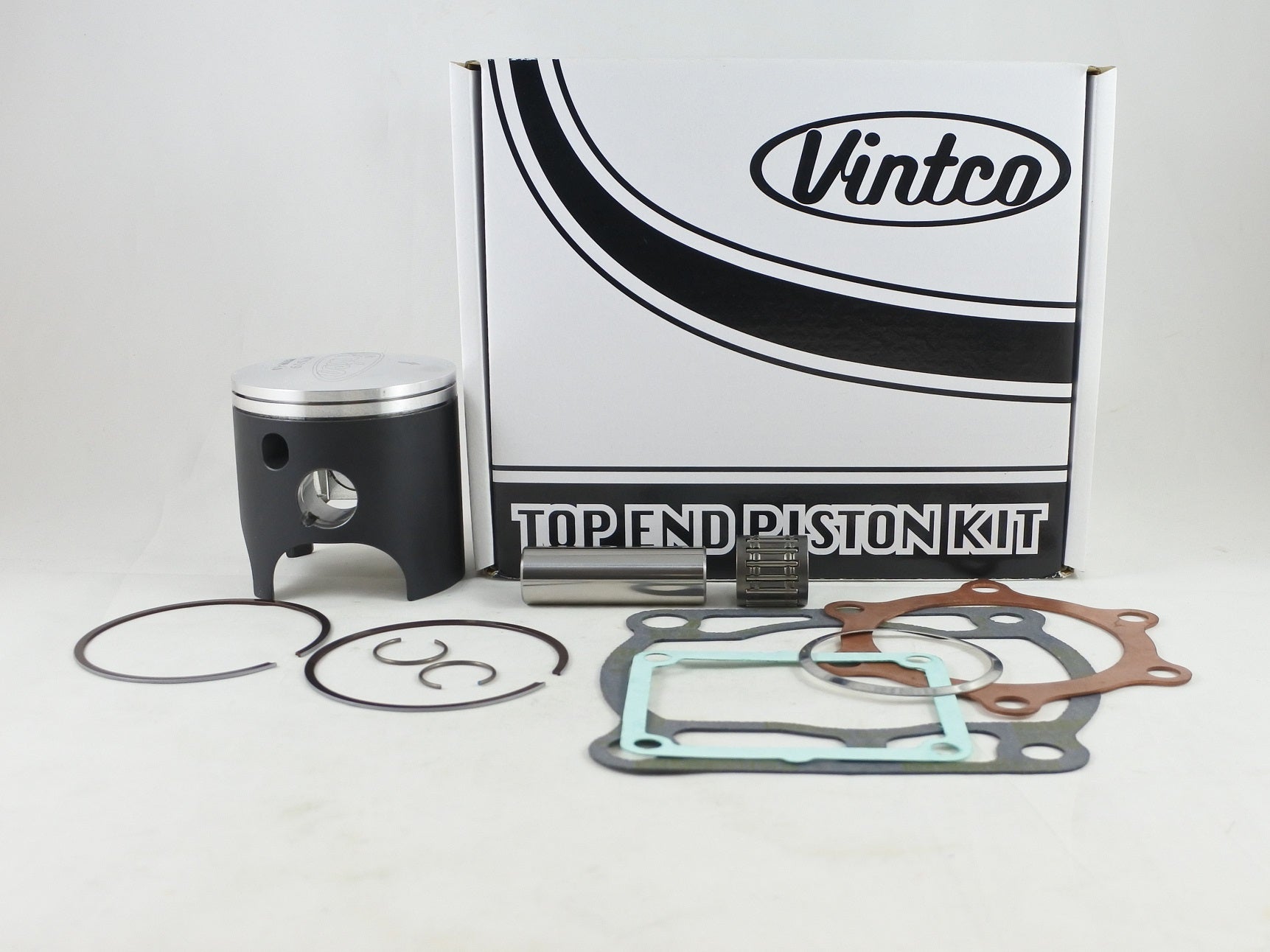

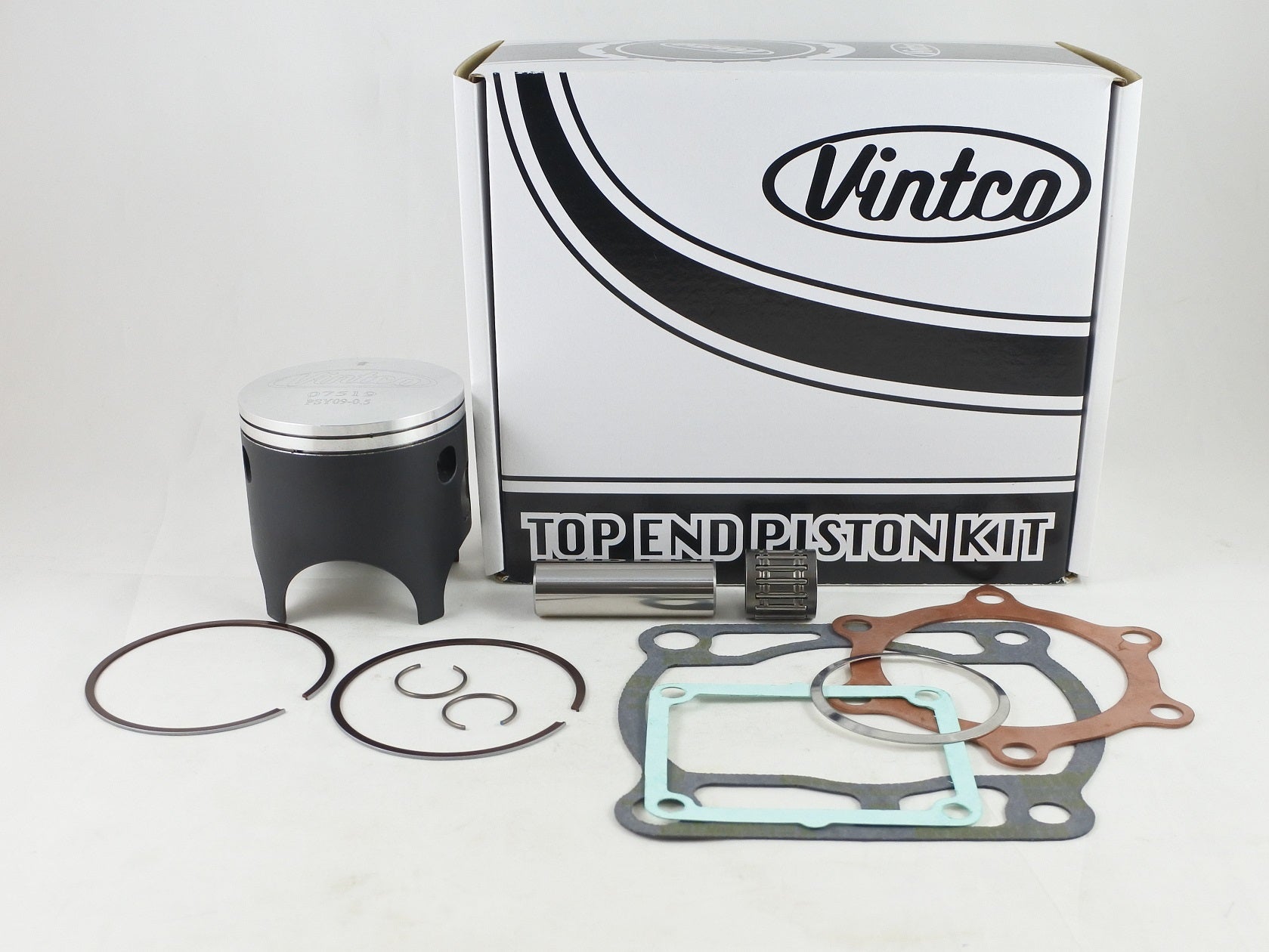

This top end piston kit is designed for the 1981 Yamaha IT250 and combines the main components required for a top-end rebuild in one package. The kit includes a forged piston made in Germany with an MOS2 coating for break-in, a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, and a wrist pin bearing. Kit pricing is 10% lower than purchasing the items individually.

Features

  • Complete top end piston kit
  • Forged piston made in Germany
  • MOS2-coated piston for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY44-0.5
  • Piston size: 70.5 mm
  • Oversize: +0.5 mm
  • Piston diameter: 70.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 1W3-11181-00-00
  • Cylinder base gasket: 3R4-11351-01-00
  • Intake gasket: 80L-13621-01-00
  • Exhaust pipe gasket: 3R4-14613-00-00

Vehicle Fitments

  • 1981 Yamaha IT250
