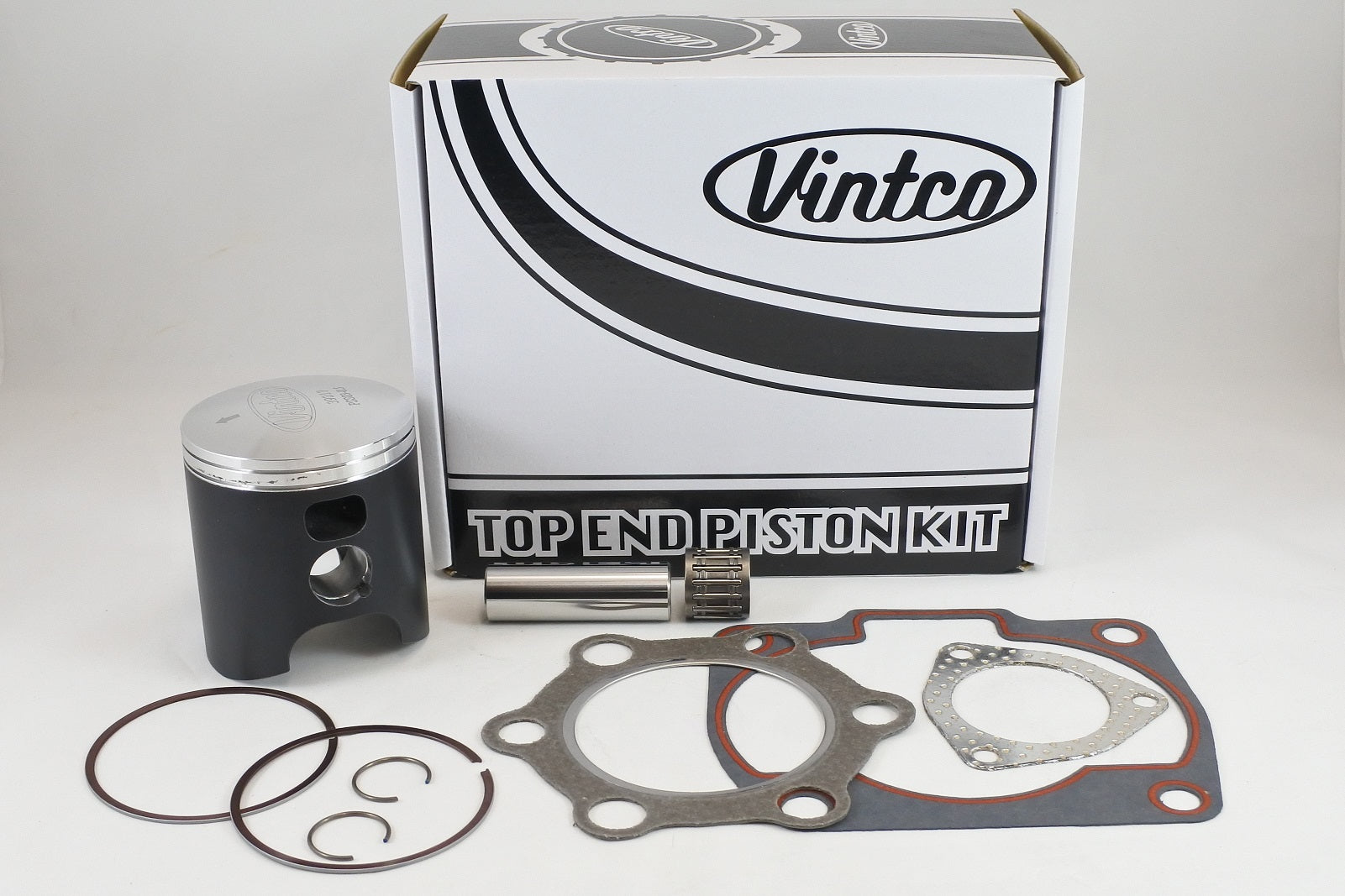

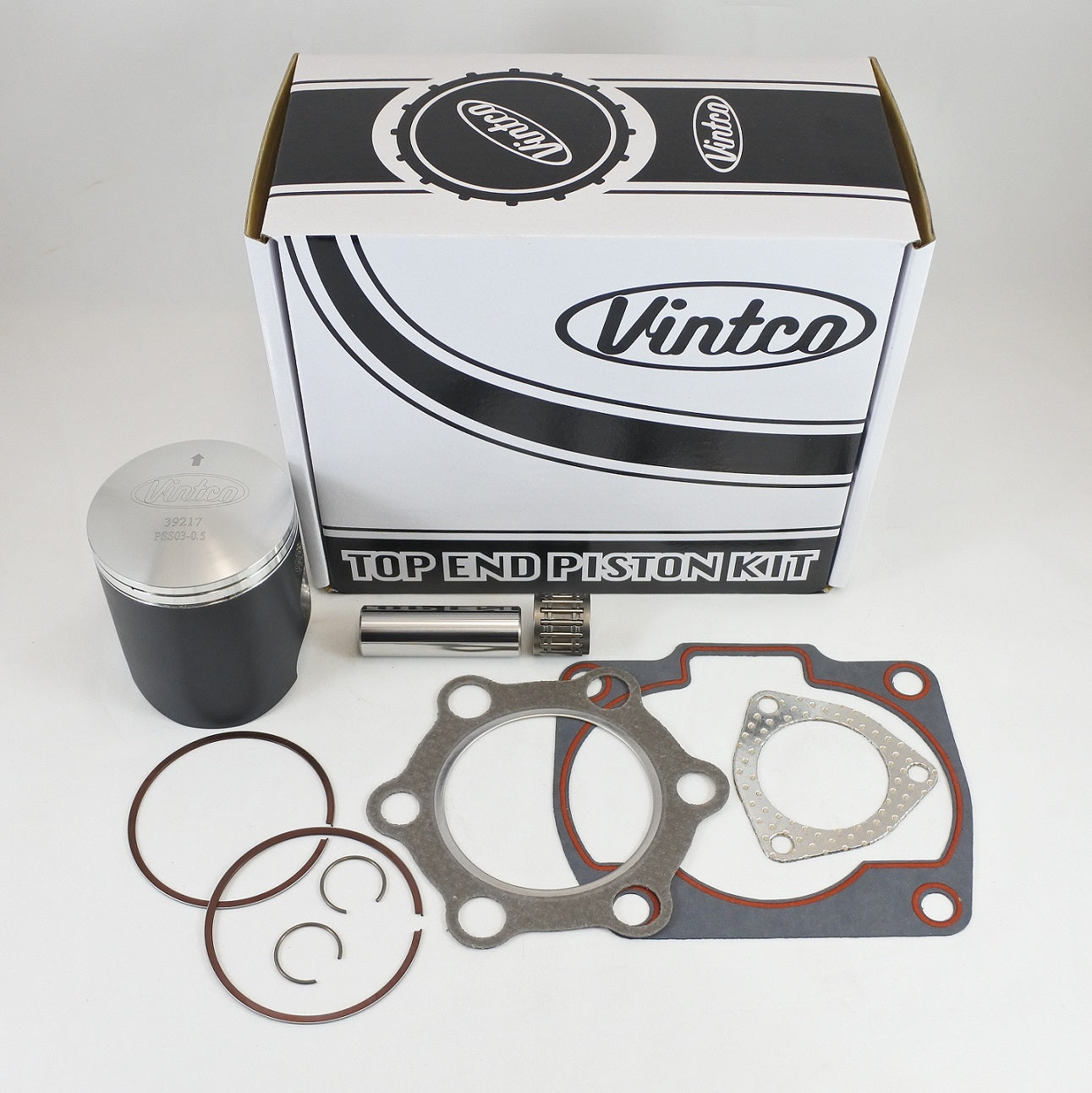

TOP END PISTON KIT 81-81 SUZUKI RM 250 67.5mm 0.5mm OVER VINTCO KTS05-0.5

This top end piston kit is a complete rebuild set for the 1981 Suzuki RM250 with a 67.5 mm piston size in +0.5 mm oversize. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit with head, base, intake and exhaust gaskets. The components are manufactured using modern materials and production methods for OEM-equivalent fitment and performance. The kit price is 10% lower than purchasing the items individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Intended for 1981 Suzuki RM250 applications
• OEM-equivalent fitment and performance
• Additional size options available
• Kit price includes a 10% saving compared with individual items

Specifications

• VintCo Part Number: KTS05-0.5
• Nominal piston size: 67.5 mm
• Oversize: +0.5 mm
• Piston diameter: 67.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-40312-050
• Head gasket: 11141-14202
• Base gasket: 11241-14201
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18014

Vehicle Fitments

• 1981 Suzuki RM250
