TOP END PISTON KIT 81-81 SUZUKI RM 250 67.0mm STANDARD VINTCO KTS05-00

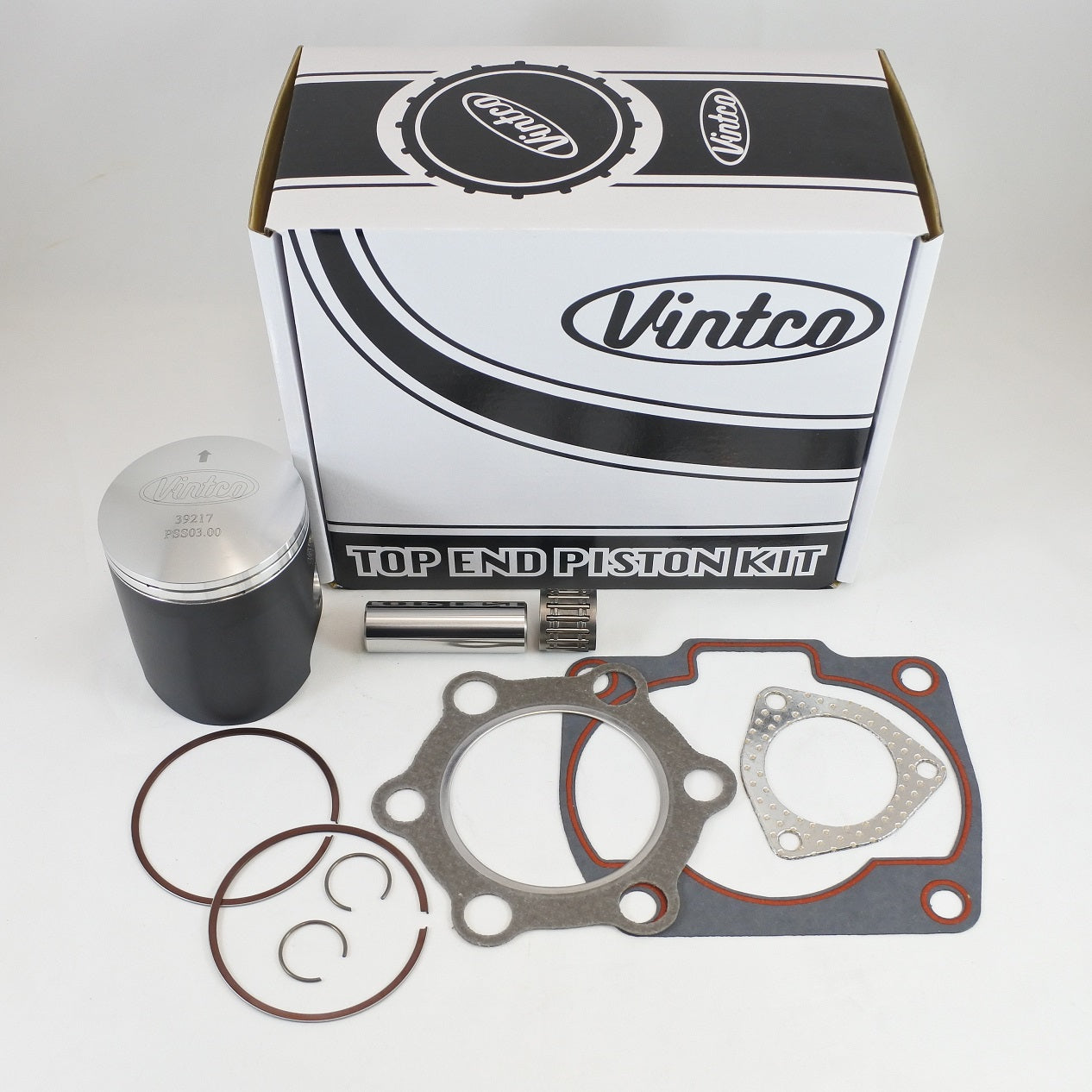

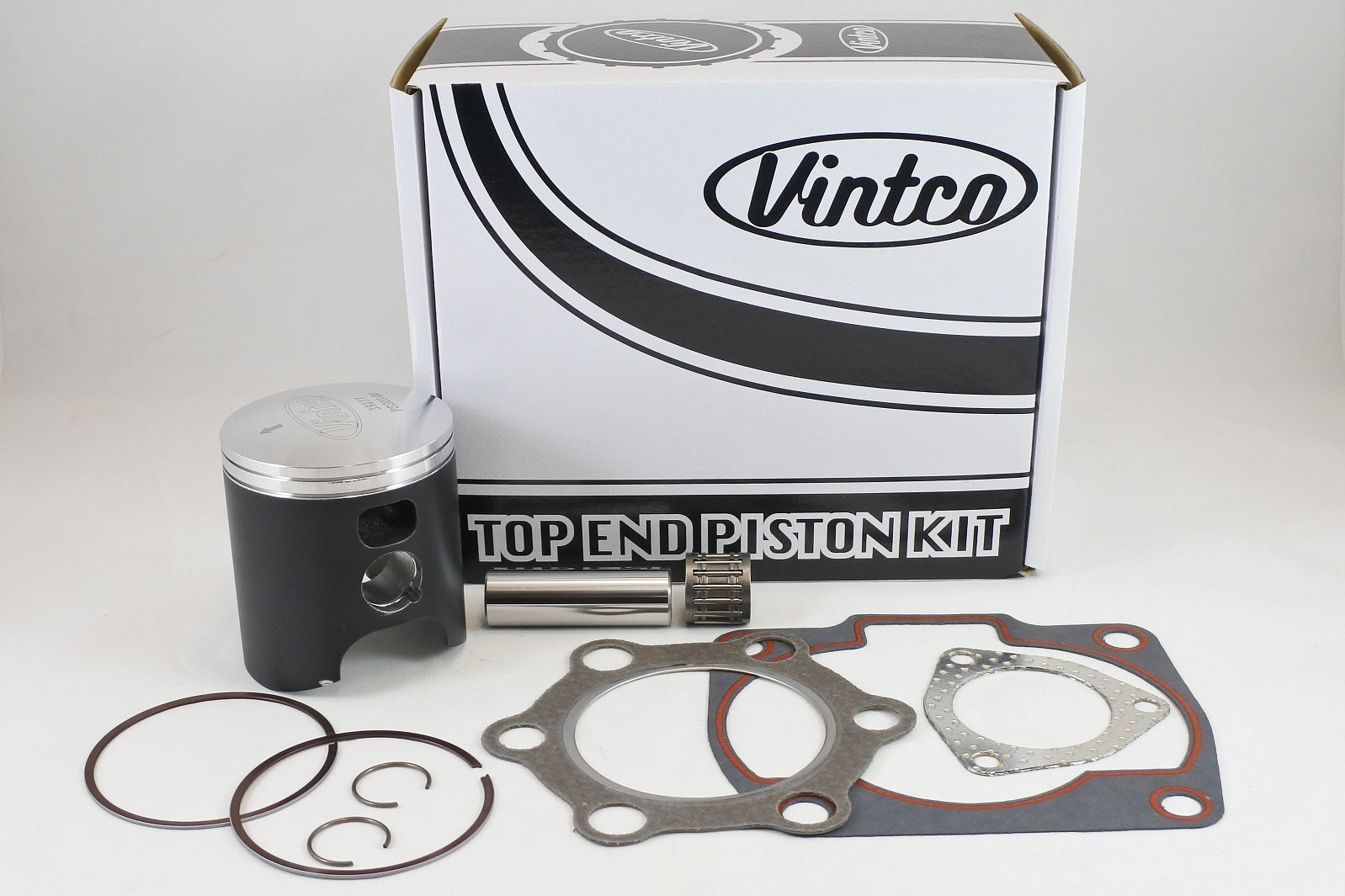

VintCo top end piston kit KTS05-00 is a complete rebuild kit for the 1981 Suzuki RM250 with a 67.0 mm standard bore. It includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The kit is produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance, with OEM part numbers provided for fitment verification.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• OEM-equivalent fitment and performance
• OEM part numbers supplied for exact fitment reference
• Kit price includes a 10% discount compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS05-00
• Standard bore size: 67.0 mm
• Piston diameter: 66.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-40312
• Head gasket: 11141-14202
• Base gasket: 11241-14201
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18014

Vehicle Fitments

• 1981 Suzuki RM250
