Top End Piston Kit 81-81 Suzuki RM 125 56.00mm Vintco KTS15-2.0

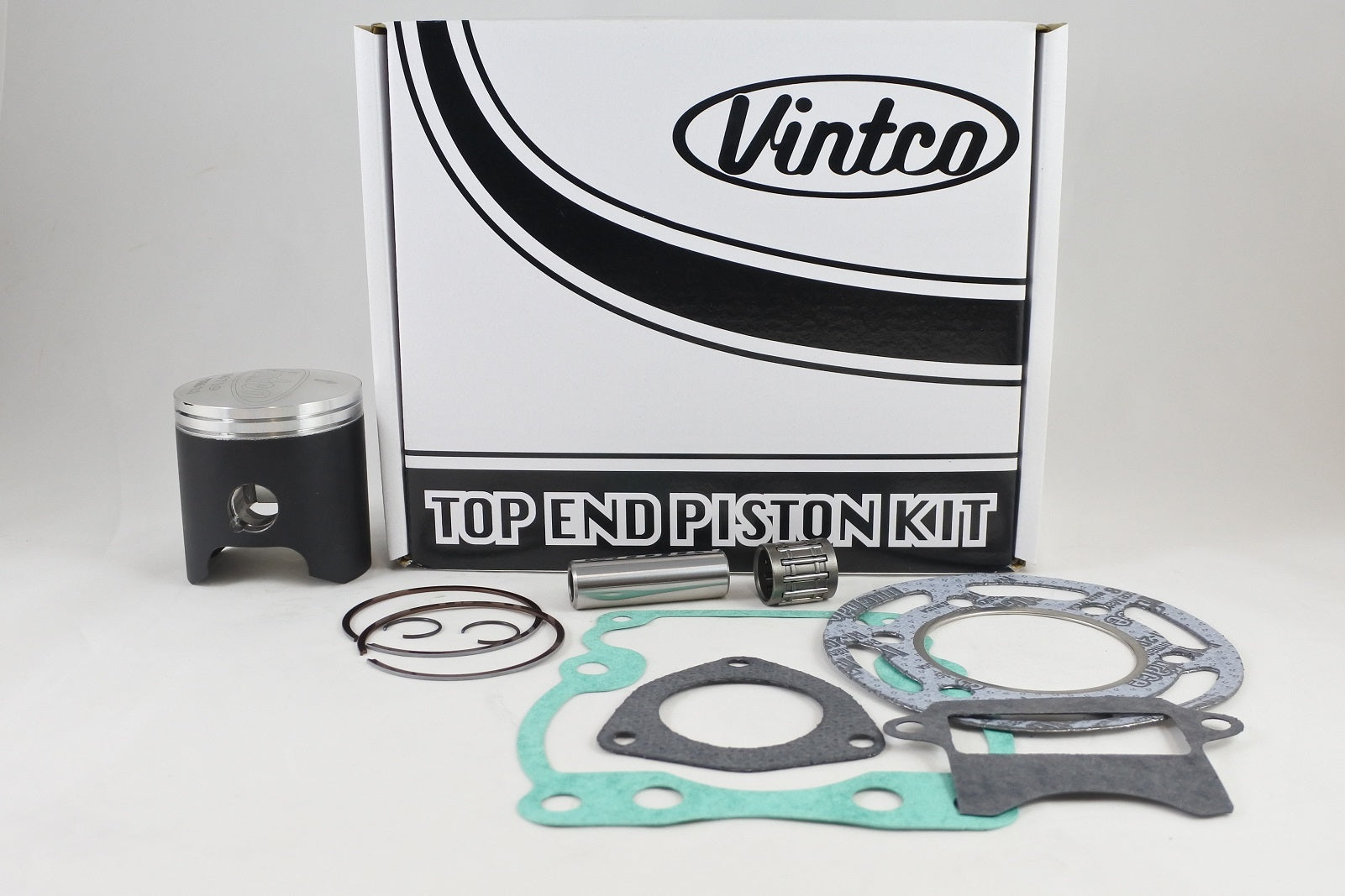

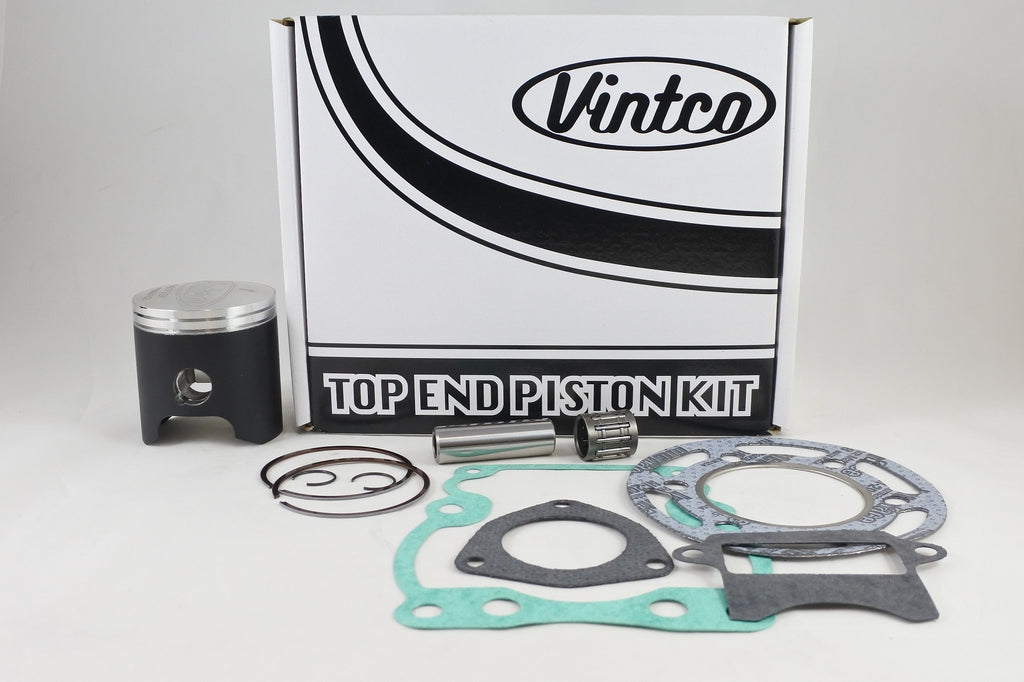

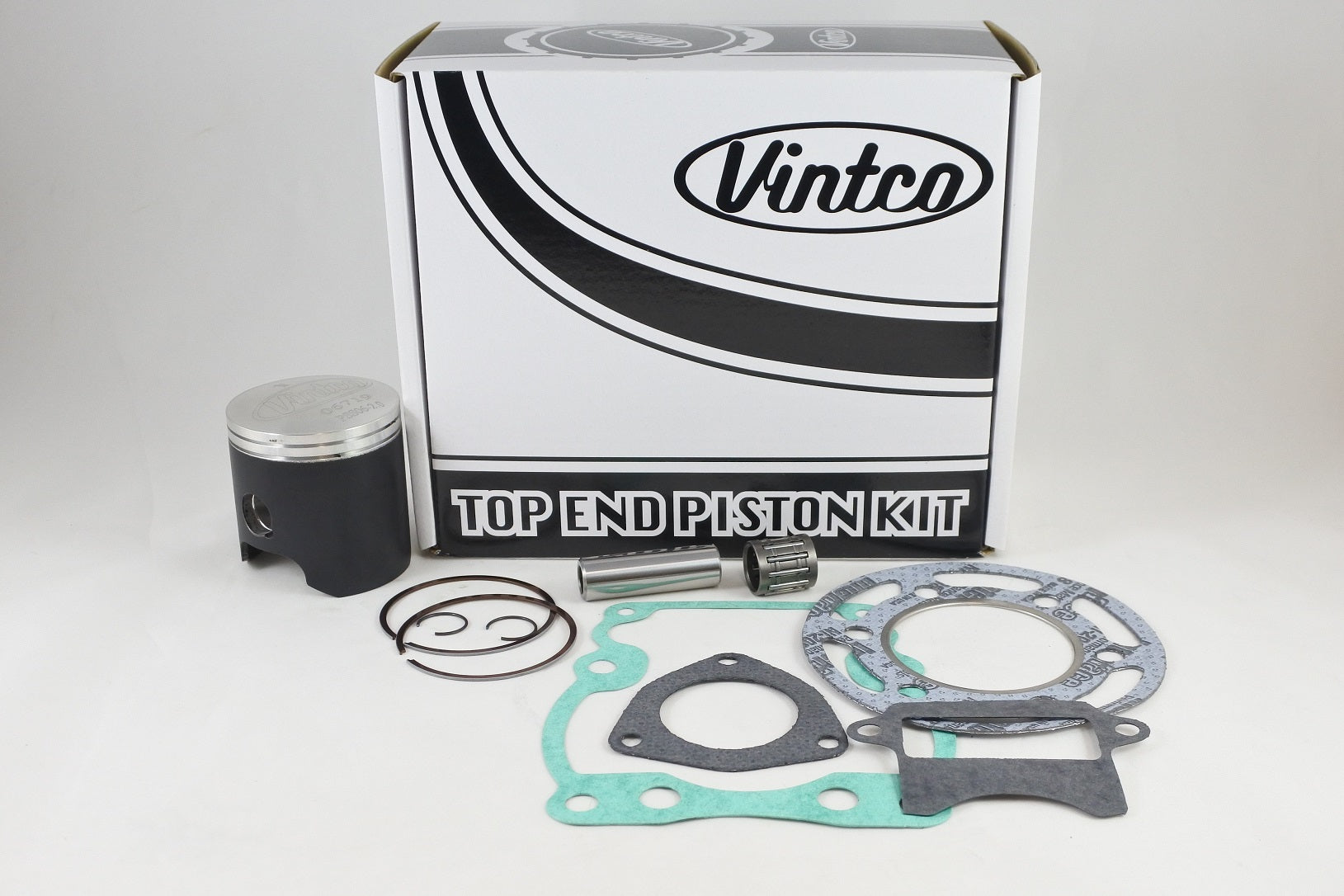

VintCo top end piston kit KTS15-2.0 is a complete rebuild kit for the 1981 Suzuki RM125, supplied with the core piston components, a top end bearing and a full top-end gasket set. The components are manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit price represents a 10% saving compared with purchasing the parts individually. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes VintCo piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Gasket set includes head gasket, base gasket, intake/reed valve gasket and exhaust gasket
• Intended to simplify rebuild work
• OEM part numbers are provided for exact fitment reference

Specifications

• VintCo Part Number: KTS15-2.0
• Product type: Top End Piston Kit
• Nominal size: 56.00 mm
• Piston size: 55.94 mm
• Oversize: +2.0 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: German MoS2-coated for break-in

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14102-H17
• Base gasket: 11241-14101-H17
• Reed valve gasket: 13156-14101-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1981 Suzuki RM125
