TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0
TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0

TOP END PISTON KIT 80-81 YAMAHA IT 175 67mm 1.0mm OVER VINTCO KTY28-1.0

£246.51 GBP
Taxes included. Shipping calculated at checkout.

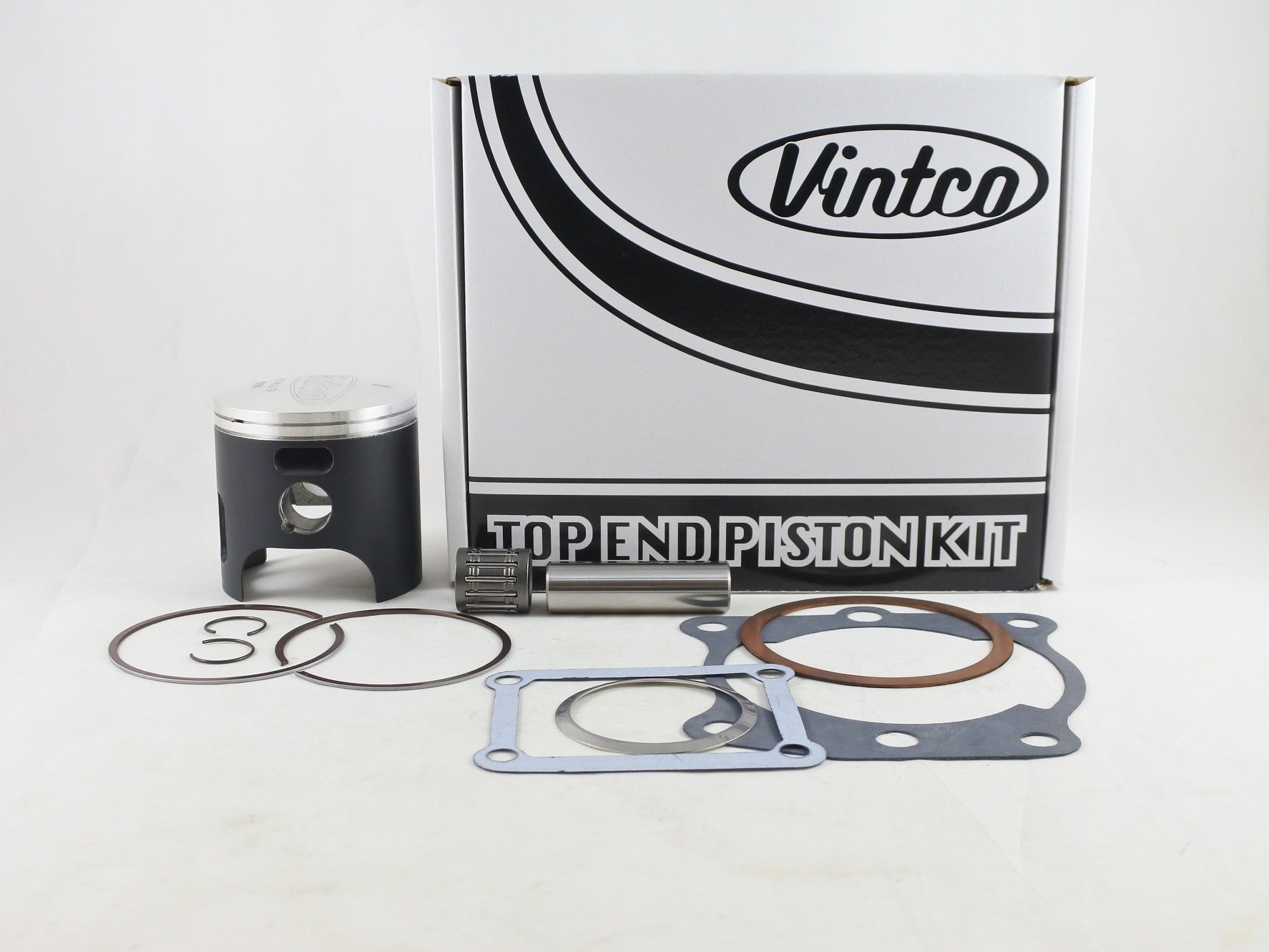

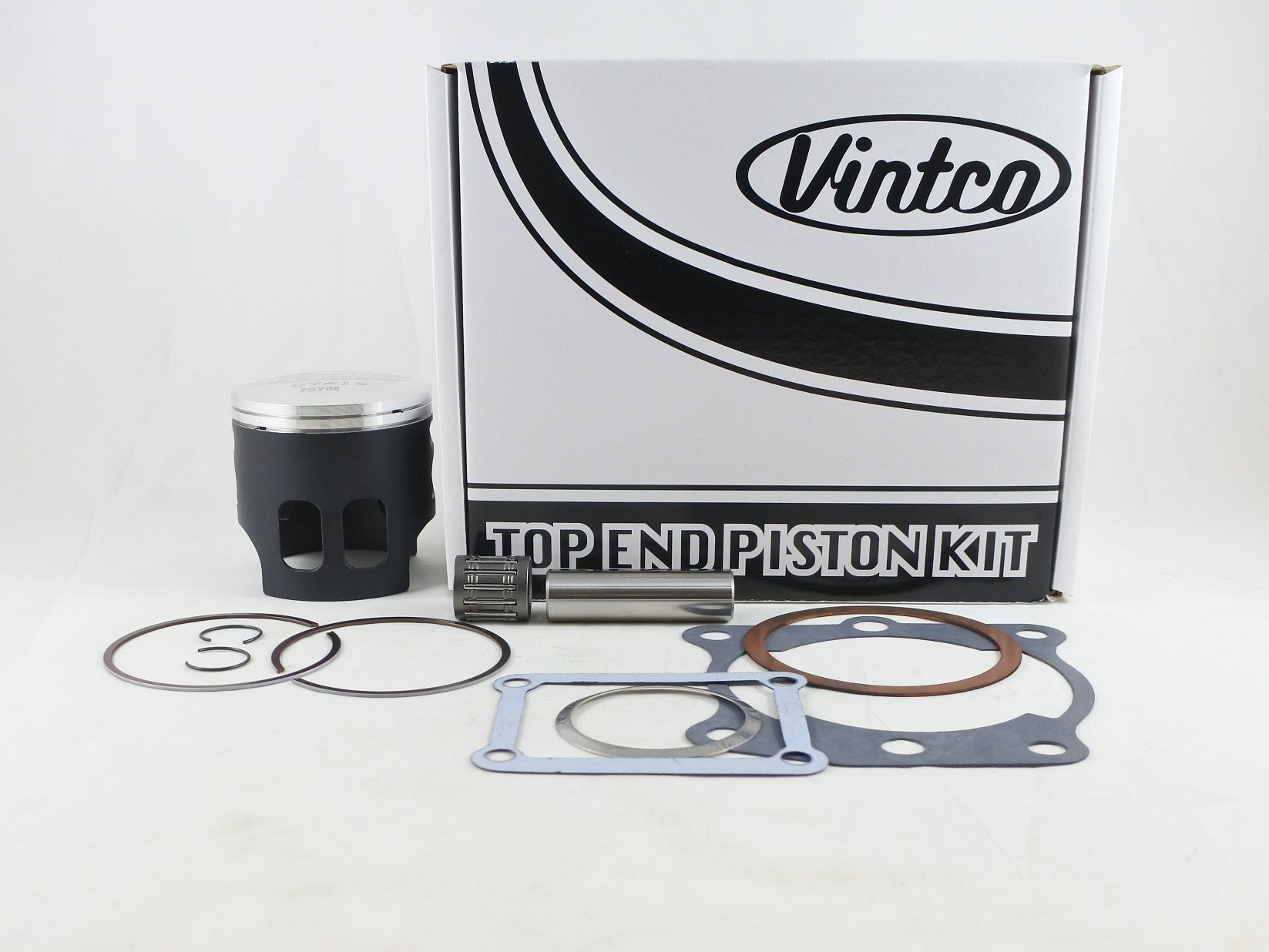

This top end piston kit is designed for 1980-1981 Yamaha IT175 models and is supplied in a 67 mm, 1.0 mm oversize configuration for top end service work. The kit includes a forged piston made in Germany with MOS2 coating for running-in, together with cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing is 10% lower than the combined price of the individual items.

Features

  • Complete top end piston kit
  • Includes piston, wrist pin bearing and gasket set
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Suitable for top end service on Yamaha IT175 models

Specifications

  • VintCo Part Number: KTY28-1.0
  • Piston size: 67 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 66.94 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 3R6-11181-00-00
  • Cylinder base gasket: 3R3-11351-01-00
  • Intake gasket: 3R3-13621-01-00
  • Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

  • 1980 Yamaha IT175
  • 1981 Yamaha IT175
