TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00
TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00

TOP END PISTON KIT 80-81 YAMAHA IT 175 66mm STANDARD VINTCO KTY28-00

£246.51 GBP
Taxes included. Shipping calculated at checkout.

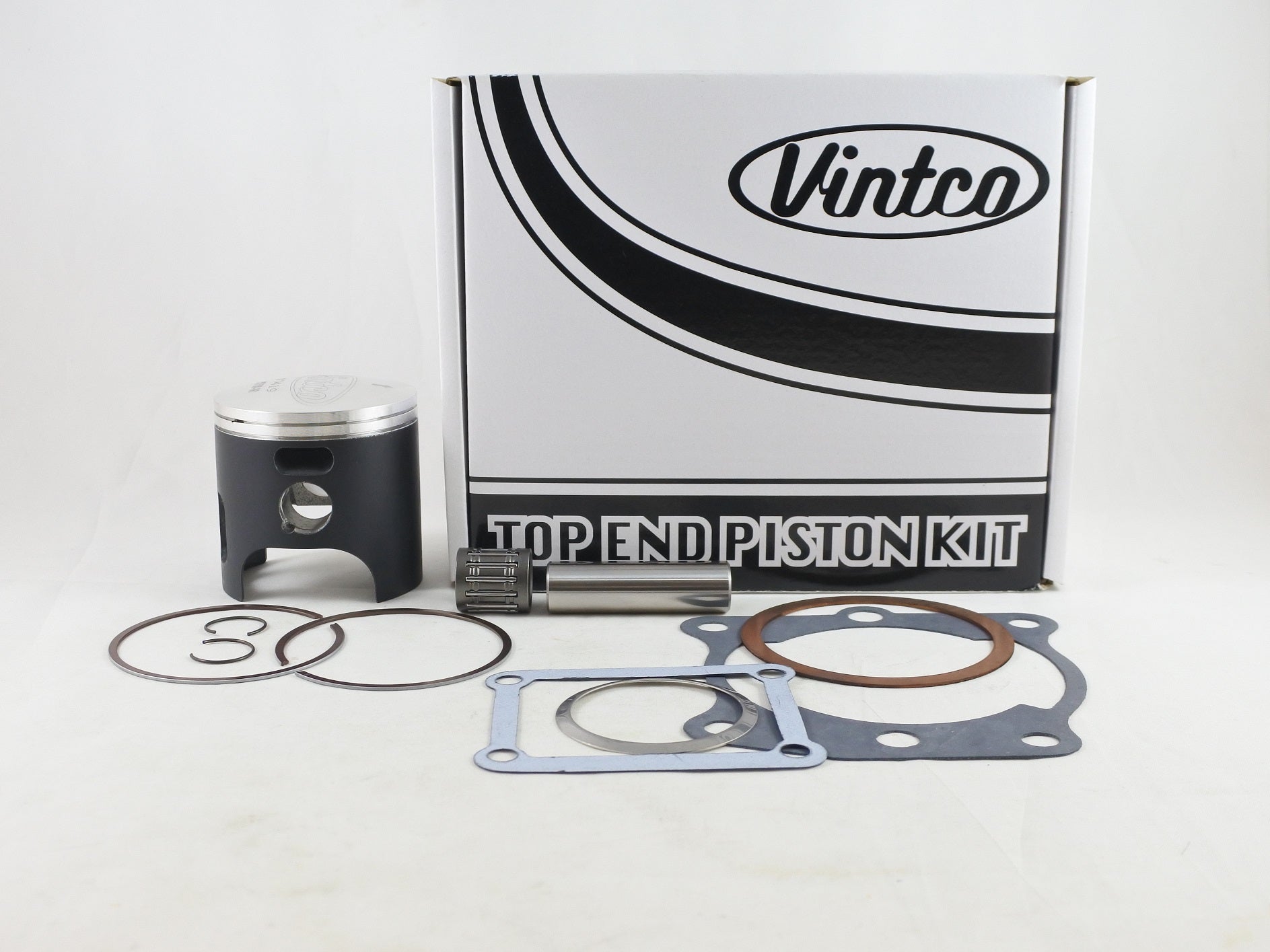

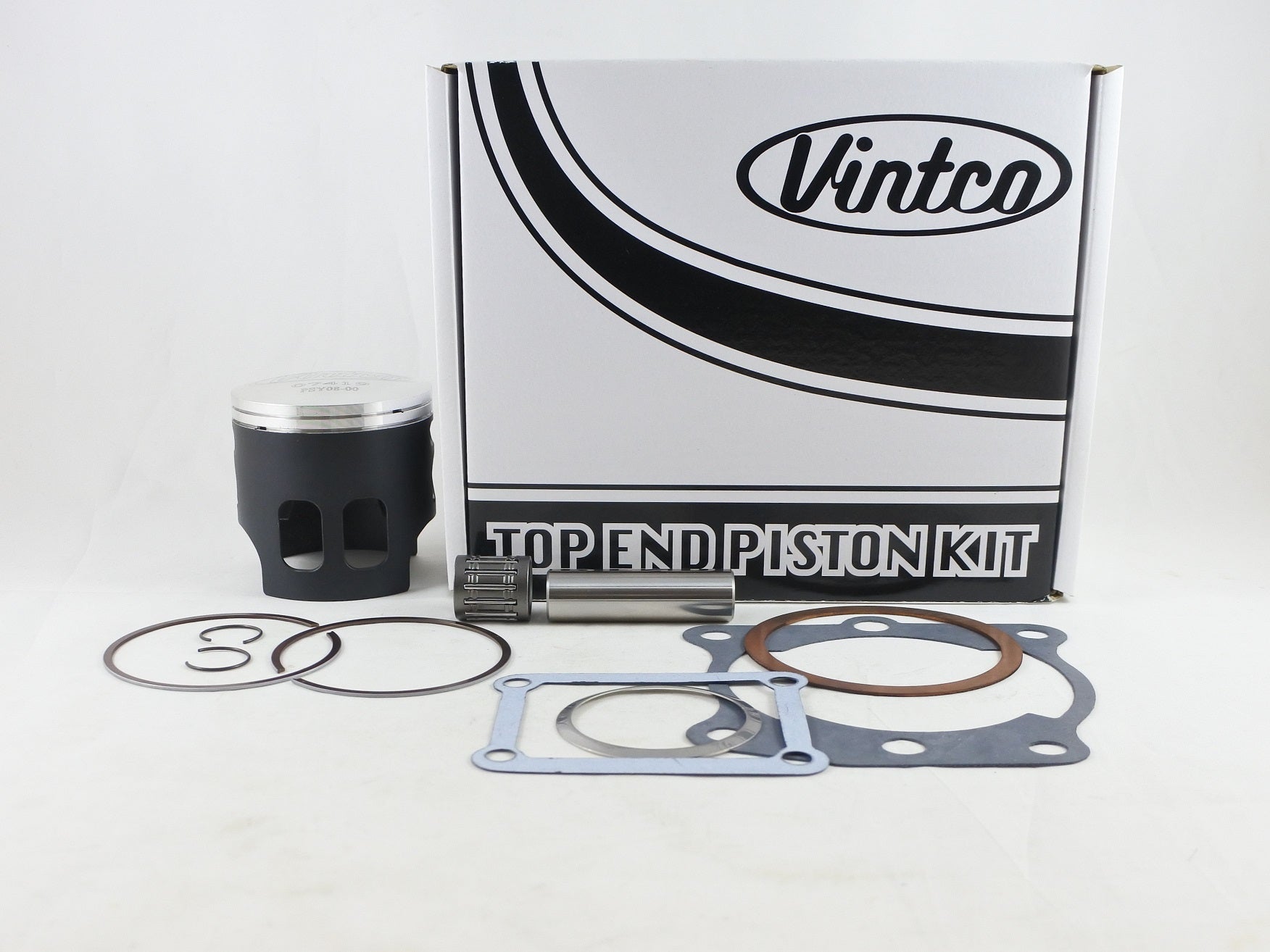

VintCo KTY28-00 is a top end piston kit for 1980 to 1981 Yamaha IT175 models in standard 66 mm size. The kit includes a forged piston with an MOS2 coating for break-in, together with the required cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the components individually.

Features

  • Complete top end piston kit
  • Forged piston
  • MOS2 coated for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Kit price includes a 10% discount over individual items

Specifications

  • VintCo Part Number: KTY28-00
  • Standard size: 66 mm
  • Piston size: 65.94 mm
  • Clearance: 0.06 mm
  • Made in Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 3R6-11181-00-00
  • Cylinder base gasket: 3R3-11351-01-00
  • Intake gasket: 3R3-13621-01-00
  • Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

  • 1980 Yamaha IT175
  • 1981 Yamaha IT175
