TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5
  • TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5
TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5

TOP END PISTON KIT 80-81 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY28-0.5

£246.51 GBP
Taxes included. Shipping calculated at checkout.

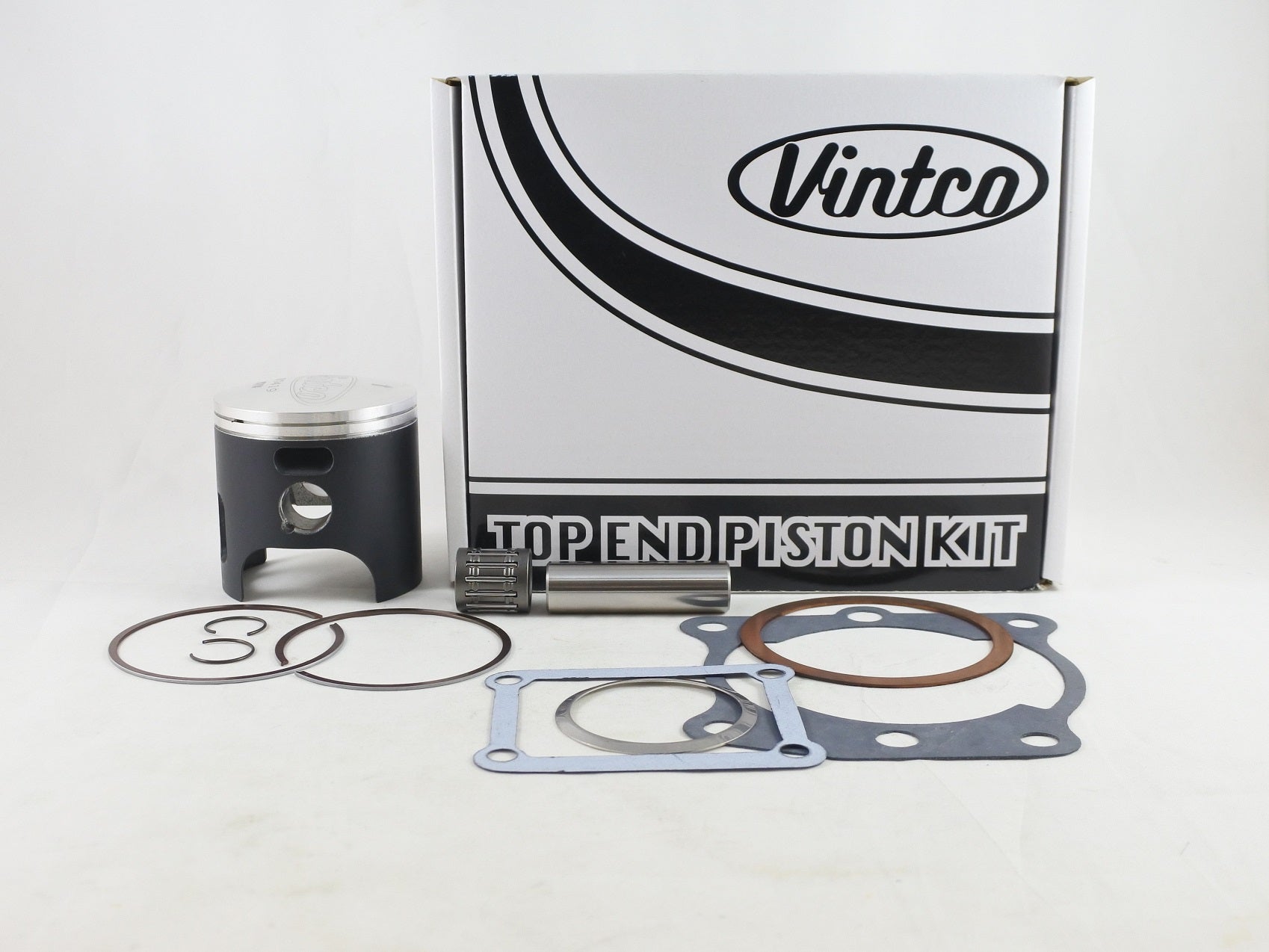

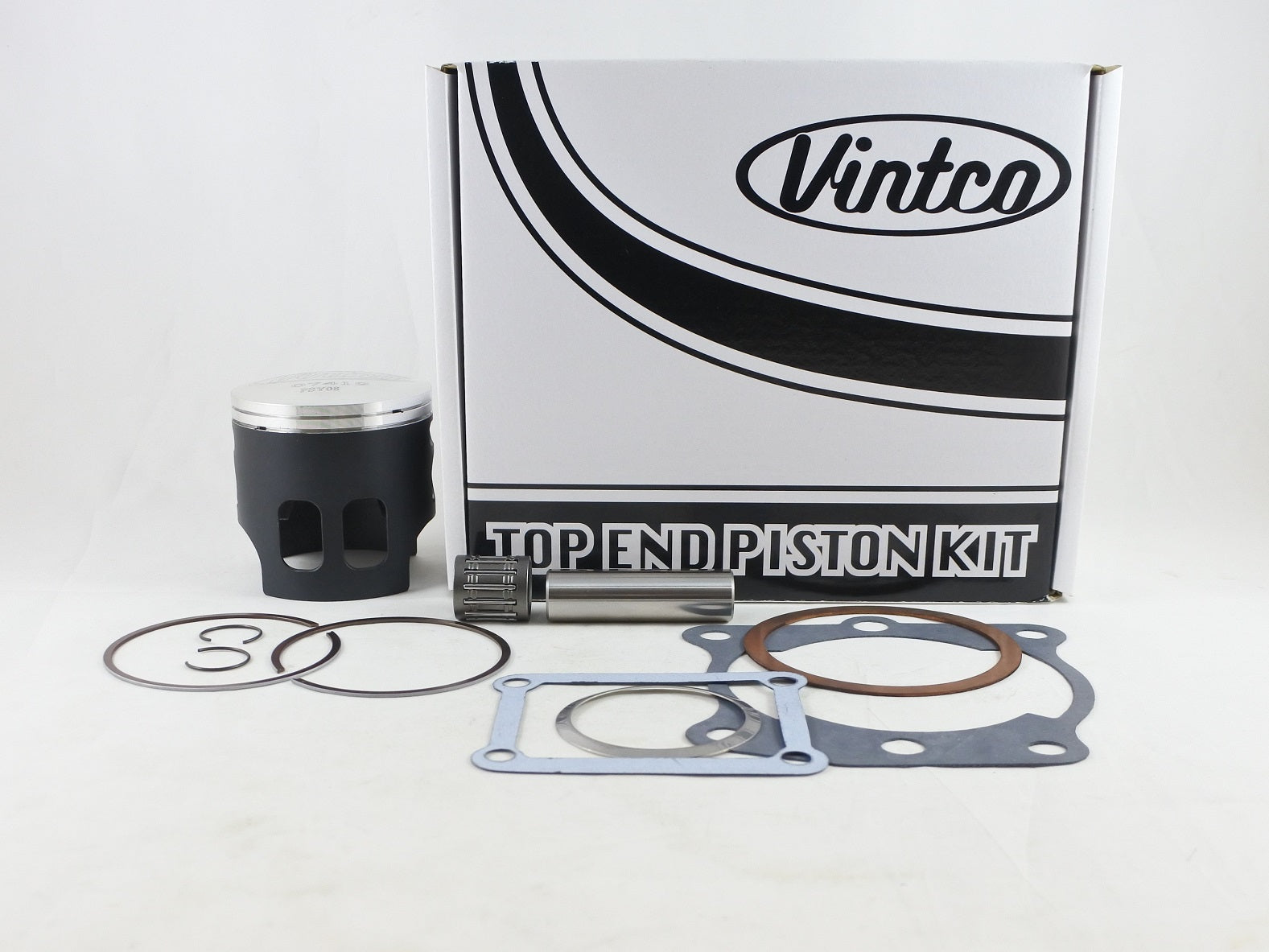

This top-end piston kit is designed for 1980–1981 Yamaha IT175 models and is supplied in a 66.5 mm, 0.5 mm oversize configuration. The kit includes a German-made forged piston with MOS2 coating for break-in, cylinder head, cylinder base, intake and exhaust pipe gaskets, and a wrist pin bearing. Kit price includes a 10% discount compared with the individual items.

Features

  • Complete top-end piston kit for Yamaha IT175 models
  • Suitable for top-end service work
  • Forged piston
  • MOS2 coating for break-in
  • Made in Germany
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY28-0.5
  • Piston size: 66.5 mm
  • Oversize: 0.5 mm over
  • Piston measurement: 66.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 3R6-11181-00-00
  • Cylinder base gasket: 3R3-11351-01-00
  • Intake gasket: 3R3-13621-01-00
  • Exhaust pipe gasket: 3R6-14613-01-00

Vehicle Fitments

  • 1980 Yamaha IT175
  • 1981 Yamaha IT175
