Top End Piston Kit 80-81 Kawasaki KX 250 71.0mm 1.0mm Over Vintco KTK08-1.0

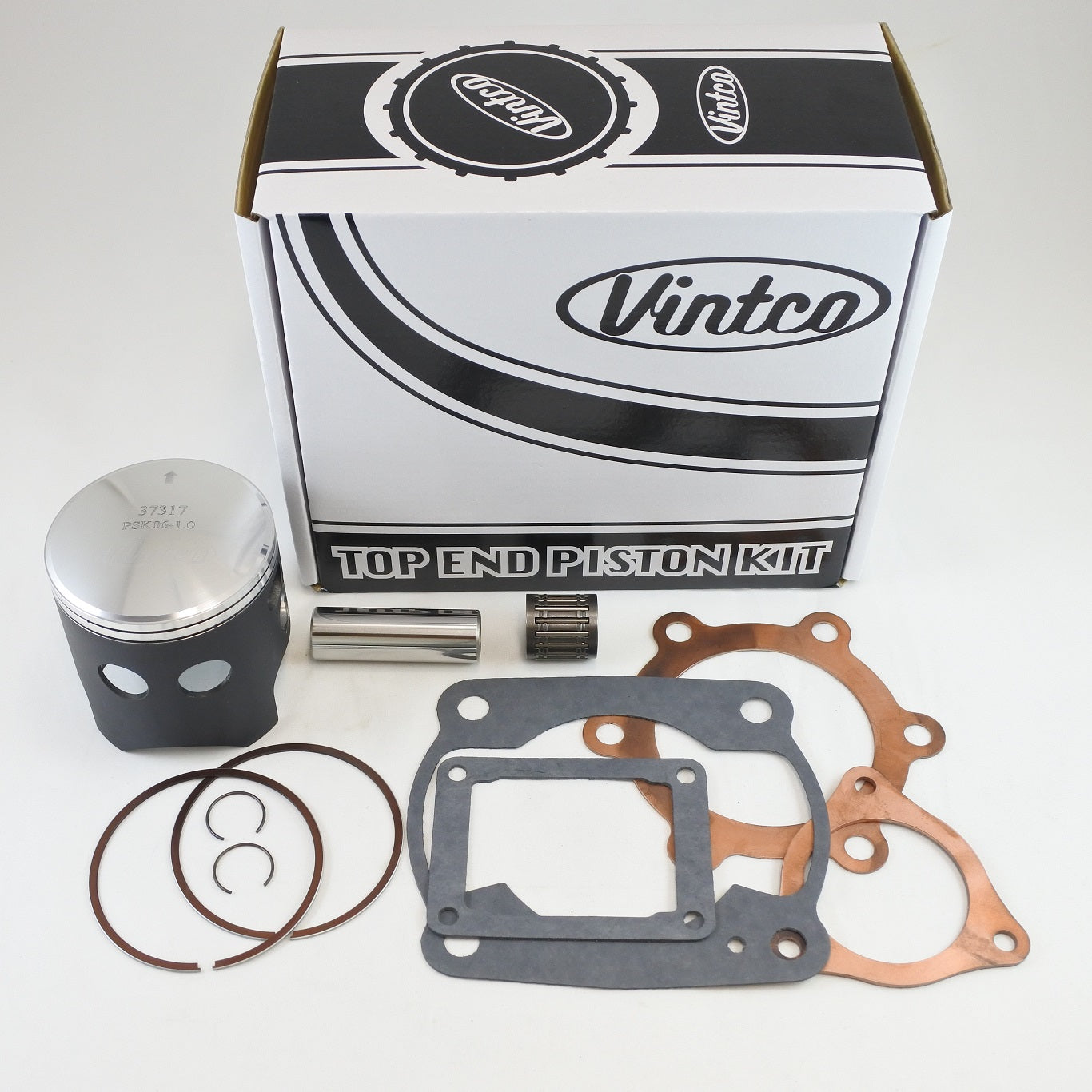

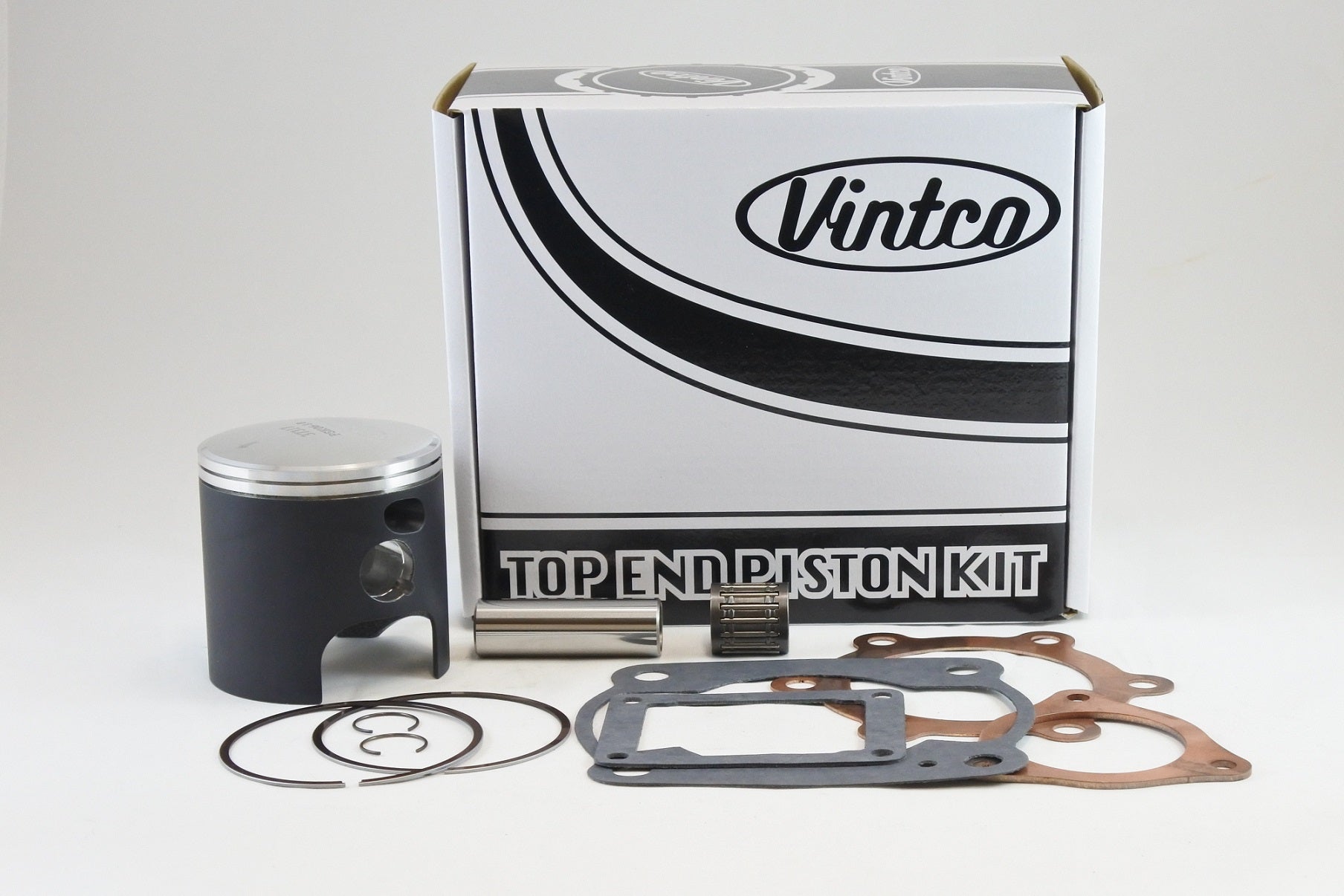

VintCo KTK08-1.0 is a complete top end piston kit for 1980-1981 Kawasaki KX250 models. The kit is supplied with a piston assembly including piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The components are manufactured using modern materials and production techniques for OEM-equivalent or better fitment and performance, and the kit price includes a 10% saving compared with purchasing the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended for 1980-1981 Kawasaki KX250 applications
• Manufactured for OEM-equivalent or better fitment and performance
• Additional size options are available
• Kit price includes a 10% saving compared with purchasing the components individually

Specifications

• VintCo Part Number: KTK08-1.0
• Product Type: Top End Piston Kit
• Piston Type: Forged
• Piston Manufacture: Made in Germany
• Piston Coating: MoS2 break-in coating
• Nominal Size: 71.0 mm
• Oversize: 1.0 mm
• Piston Size: 70.94 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head Gasket: 11004-1012
• Base Gasket: 11009-038
• Intake Gasket: 11009-1018
• Exhaust Gasket: 11009-1017
• Wrist Pin Bearing: 13033-1010

Vehicle Fitments

• 1980 Kawasaki KX250
• 1981 Kawasaki KX250
