Top End Piston Kit 80-81 Husqvarna CR WR or 250 71.0mm 1.5mm Over Vintco KTU03-1.5

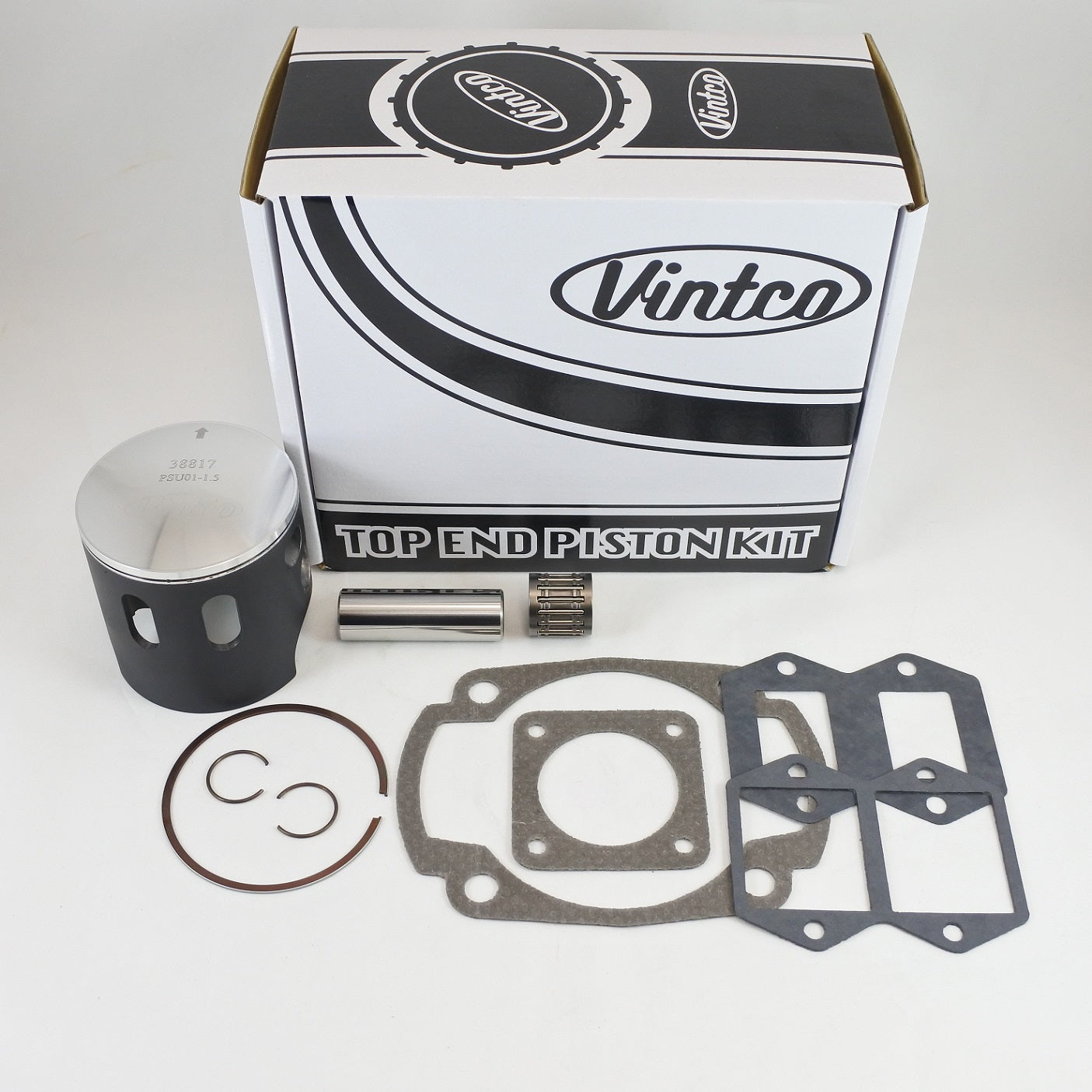

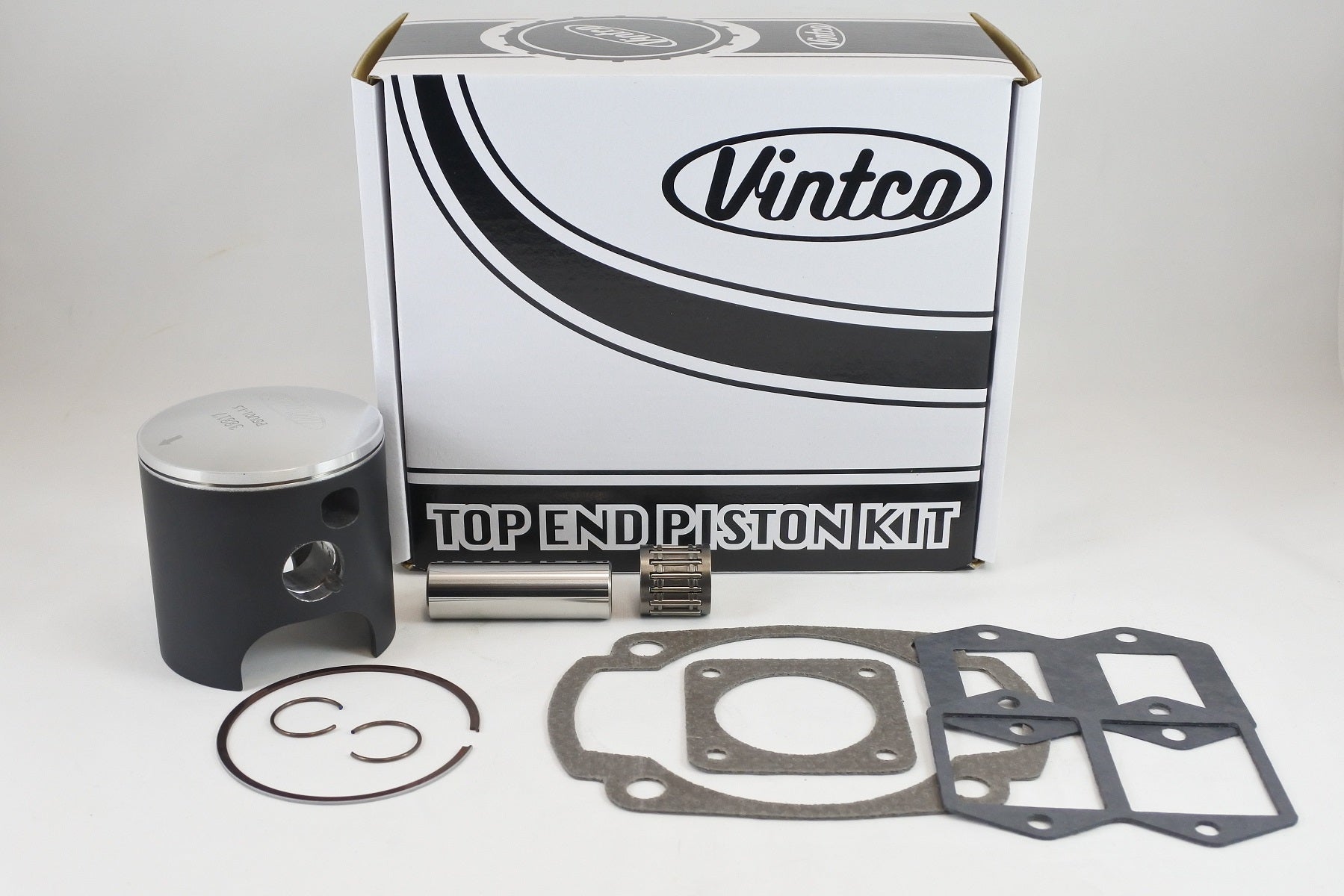

This VintCo top end piston kit is a complete rebuild kit for 1980–1981 Husqvarna CR250 and WR250 models, and the 1980 OR250, supplied in a 71.0 mm nominal size with 1.5 mm oversize. The kit includes the piston assembly, top end bearing and full top-end gasket set to support a straightforward and cost-effective top end rebuild, with components manufactured to provide OEM-equivalent fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with base gasket, intake gaskets and exhaust gasket
• Intended to simplify top end rebuild work
• Manufactured with modern materials and production methods for OEM-equivalent fitment and performance
• Kit pricing reflects a 10% saving compared with purchasing the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTU03-1.5
• Product type: Top End Piston Kit
• Piston size: 71.0 mm nominal
• Oversize: +1.5 mm
• Piston measured size: 70.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 coated
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Base gasket: 1 16 11 648-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 396-01
• Exhaust gasket: 1 16 10 912-01
• Wrist pin bearing: 16 10 933-01

Vehicle Fitments

• 1980 Husqvarna CR250
• 1980 Husqvarna OR250
• 1980 Husqvarna WR250
• 1981 Husqvarna CR250
• 1981 Husqvarna WR250
