Top End Piston Kit 80-81 Husqvarna CR WR or 250 70.0mm 0.5mm Over Vintco KTU03-0.5

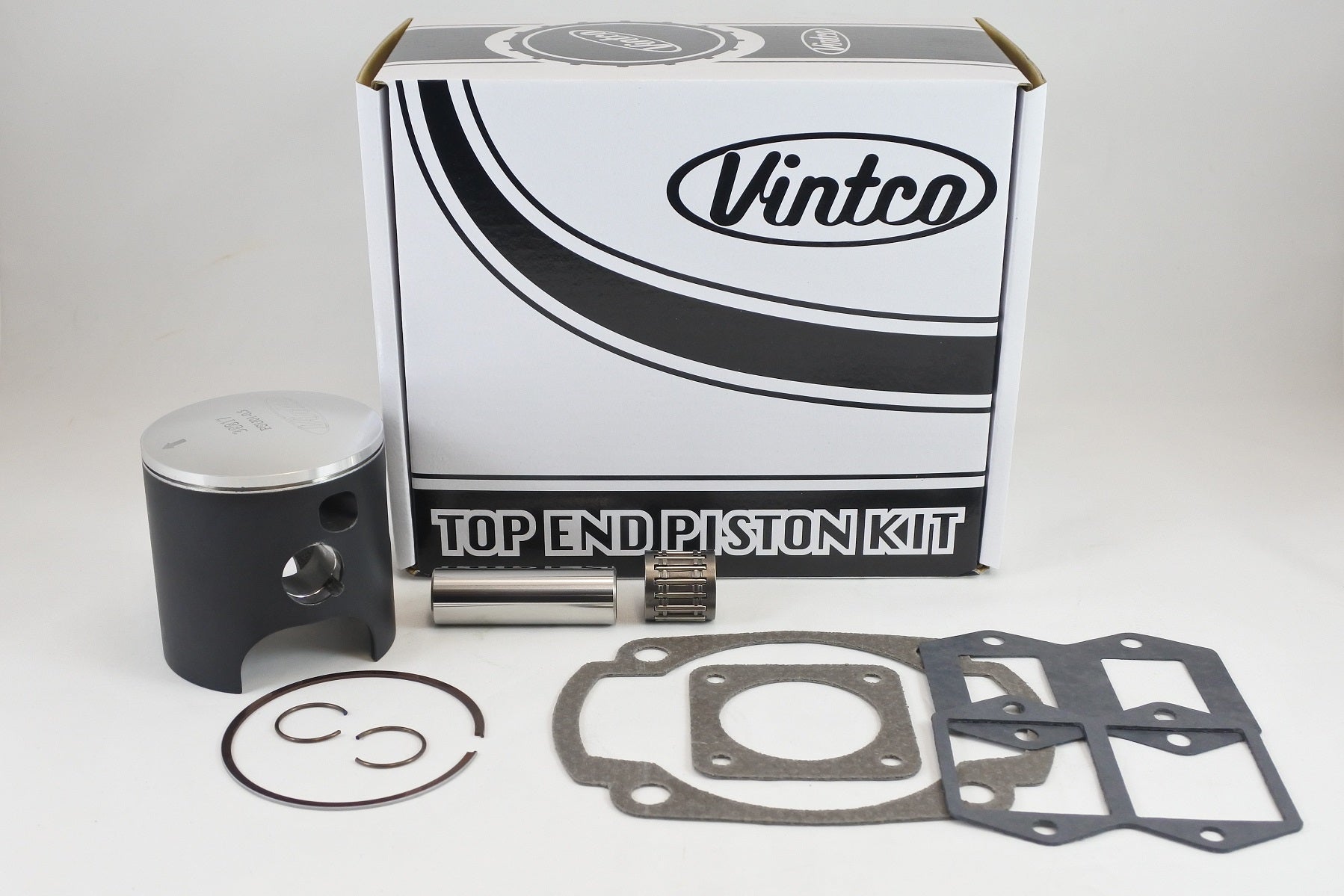

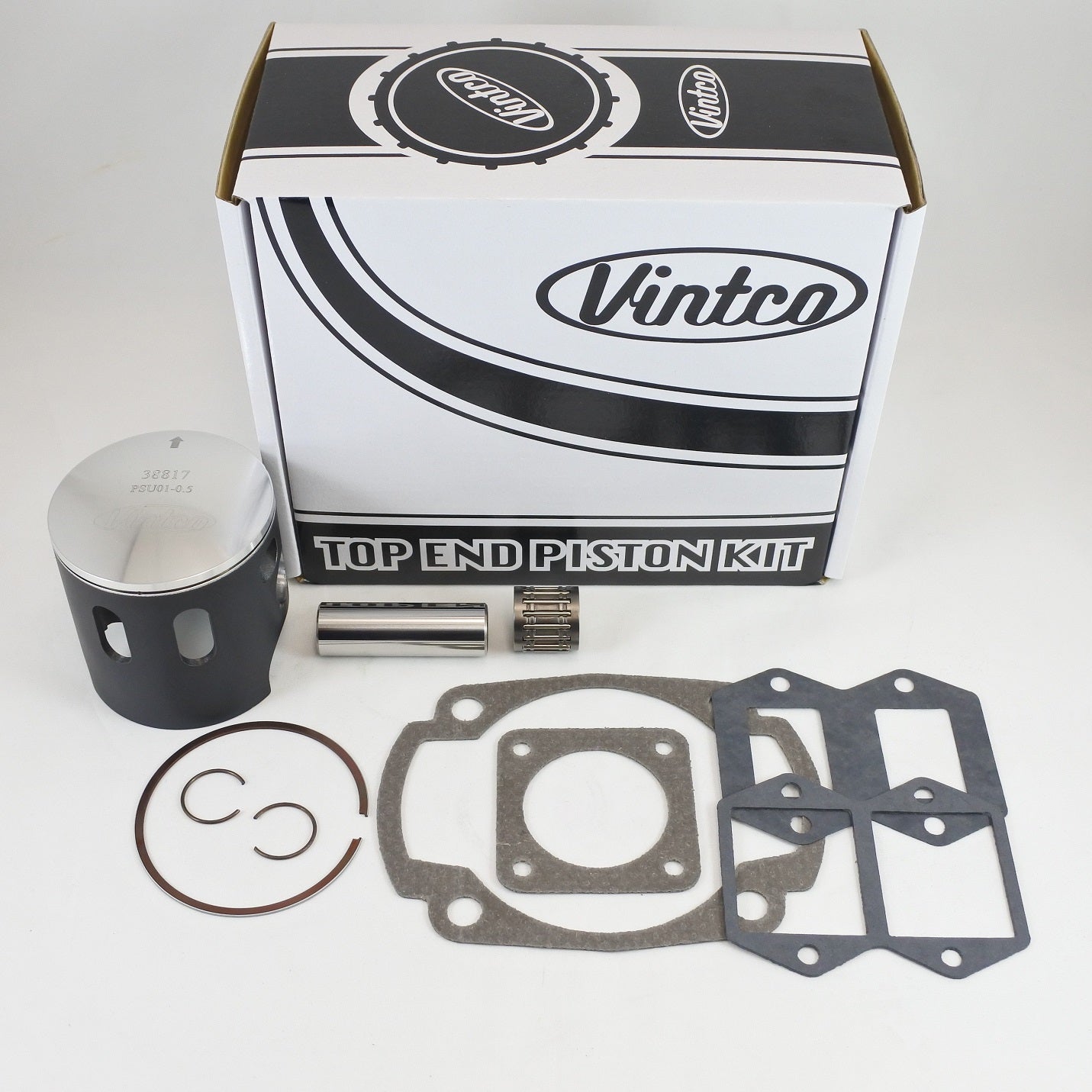

VintCo top end piston kit for 1980-1981 Husqvarna CR250 and WR250 models, and 1980 OR250 models, in 70.0 mm size with a +0.5 mm oversize. This complete top end rebuild kit includes a piston, rings, pin, clips, top end bearing, and a full top-end gasket set with base, intake, and exhaust gaskets, and is produced using modern materials and manufacturing techniques for OEM-equivalent or better fit and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Base gasket included
• Intake gaskets included
• Exhaust gasket included
• Intended for straightforward and cost-effective rebuild work
• Provides a 10% saving compared with purchasing the components individually
• OEM part numbers supplied for exact fitment reference
• Additional size options available

Specifications

• VintCo Part Number: KTU03-0.5
• Bore size: 70.0 mm
• Oversize: +0.5 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany
• Piston OE reference size: 69.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Piston: 16 10 376-03
• Base gasket: 1 16 11 648-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 396-01
• Exhaust gasket: 1 16 10 912-01
• Wrist pin bearing: 16 10 933-01

Vehicle Fitments

• 1980 Husqvarna CR250
• 1980 Husqvarna OR250
• 1980 Husqvarna WR250
• 1981 Husqvarna CR250
• 1981 Husqvarna WR250
