Top End Piston Kit 80-81 Husqvarna CR or WR 250 69.5mm Standard Vintco KTU03-00

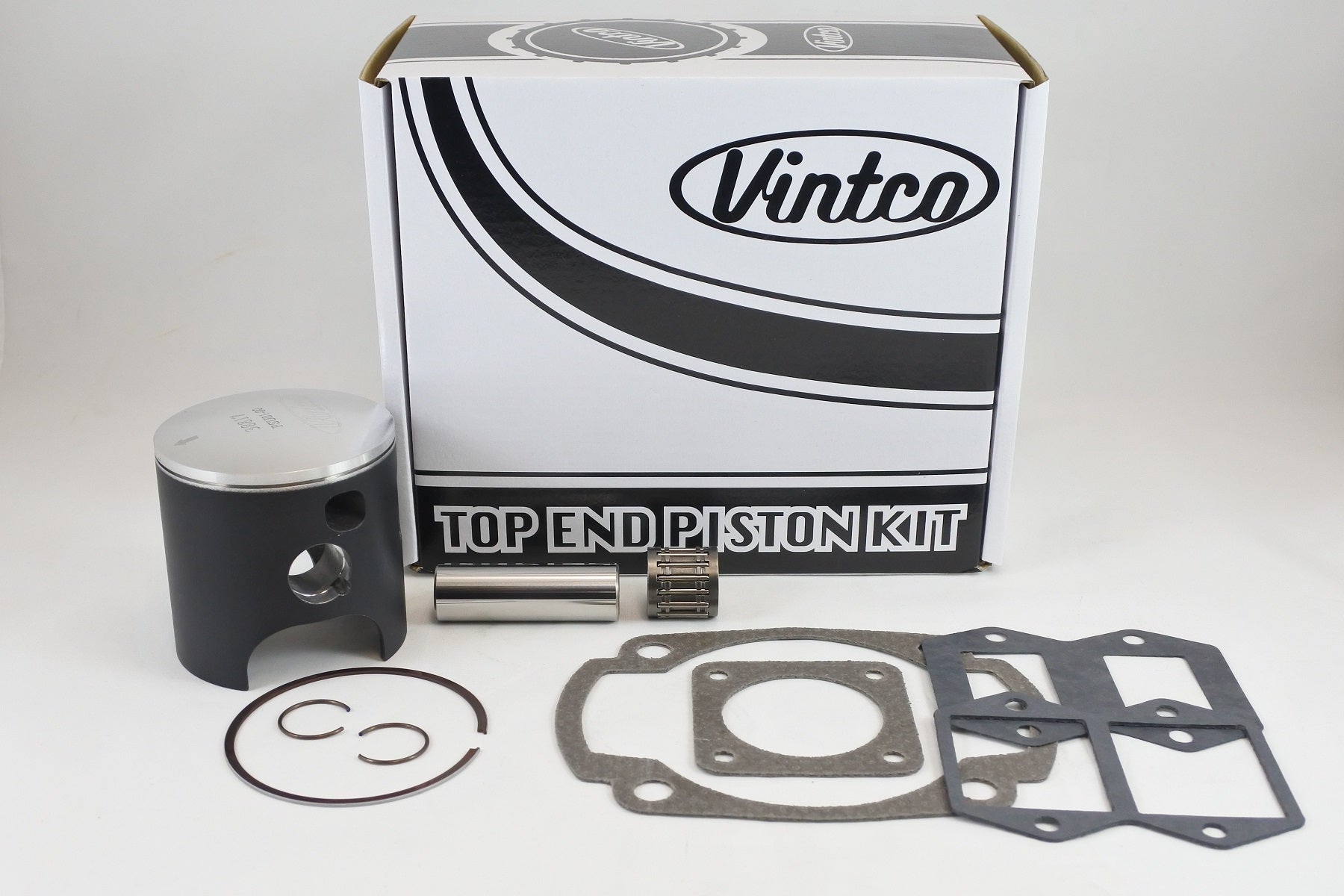

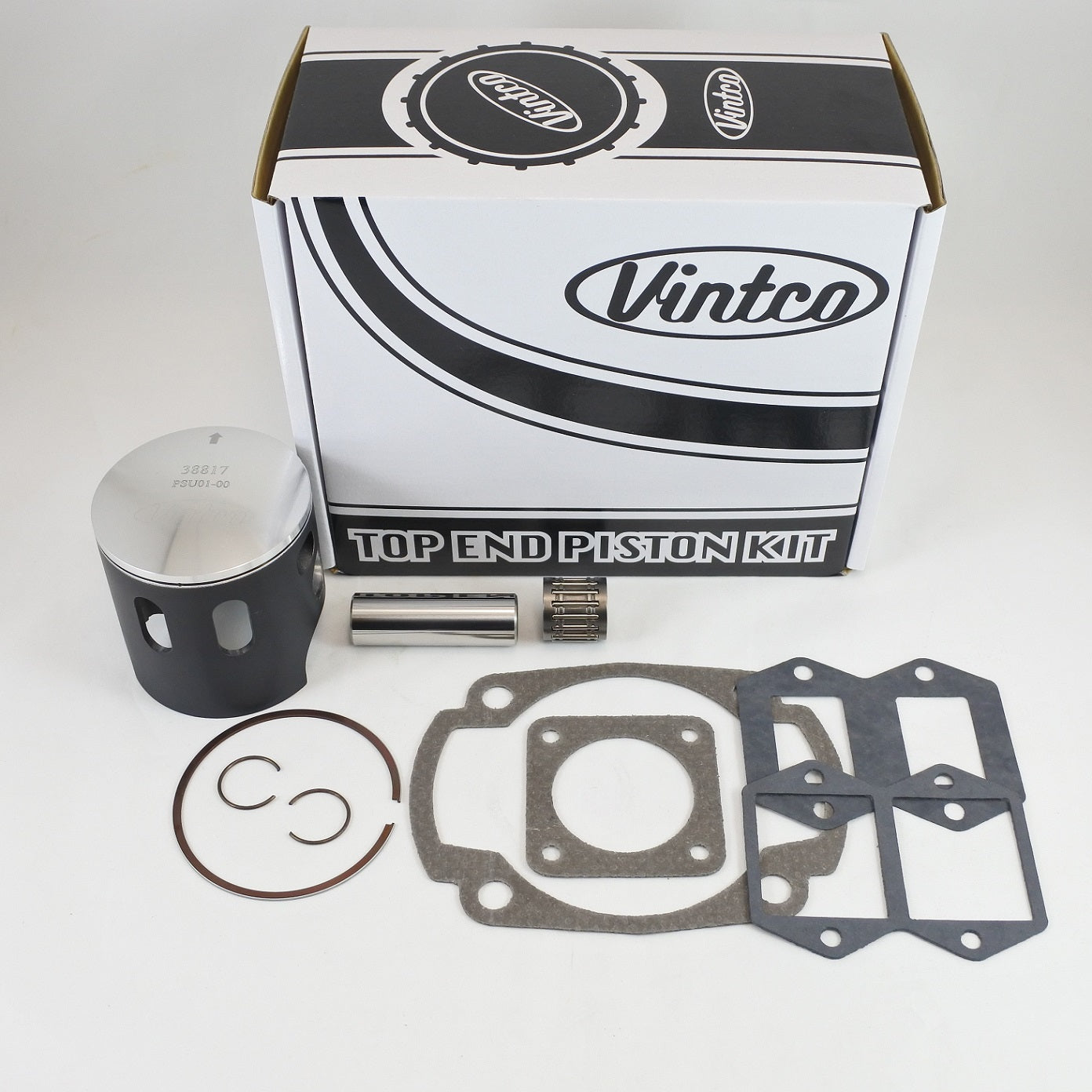

This VintCo top end piston kit is a complete rebuild kit for Husqvarna CR250, WR250 and OR250 models. It includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit with base, intake and exhaust gaskets. The kit is produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance, and is supplied in a standard 69.5 mm bore size for the listed 1980–1981 applications.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes base gasket, two intake gaskets and exhaust gasket
• OEM part numbers provided for exact fitment reference
• Kit pricing is 10% lower than purchasing the listed components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTU03-00
• Product type: Top End Piston Kit
• Standard bore size: 69.5 mm
• Piston diameter: 69.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 break-in coating
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 16 10 376-01
• Base gasket: 1 16 11 648-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 396-01
• Exhaust gasket: 1 16 10 912-01
• Wrist pin bearing: 16 10 933-01

Vehicle Fitments

• 1980 Husqvarna CR250
• 1980 Husqvarna OR250
• 1980 Husqvarna WR250
• 1981 Husqvarna CR250
• 1981 Husqvarna WR250
