Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5
Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5

Top End Piston Kit 80-80 Yamaha YZ 80 49.5mm 0.5mm Over Vintco KTY24-0.5

£165.24 GBP
Taxes included. Shipping calculated at checkout.

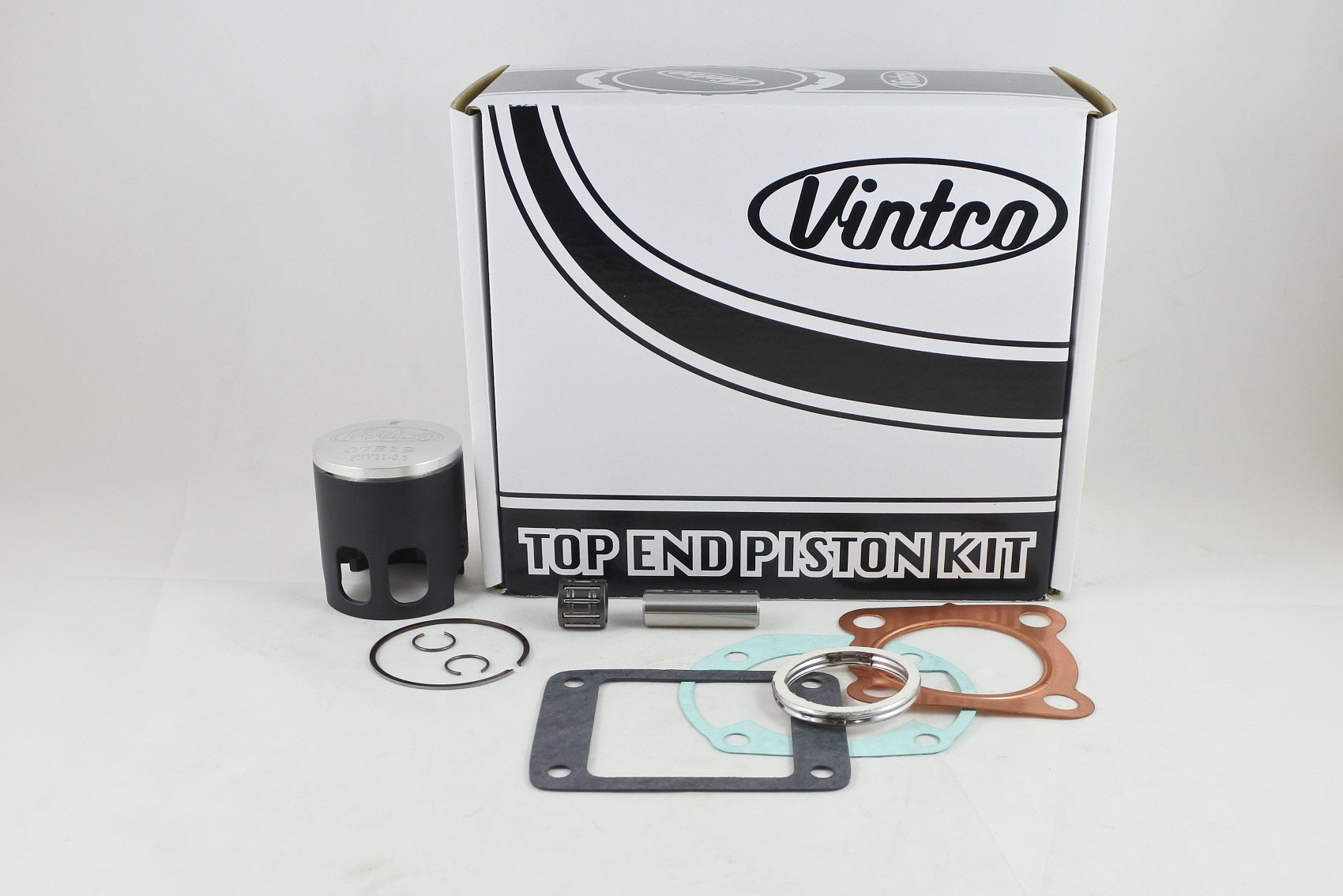

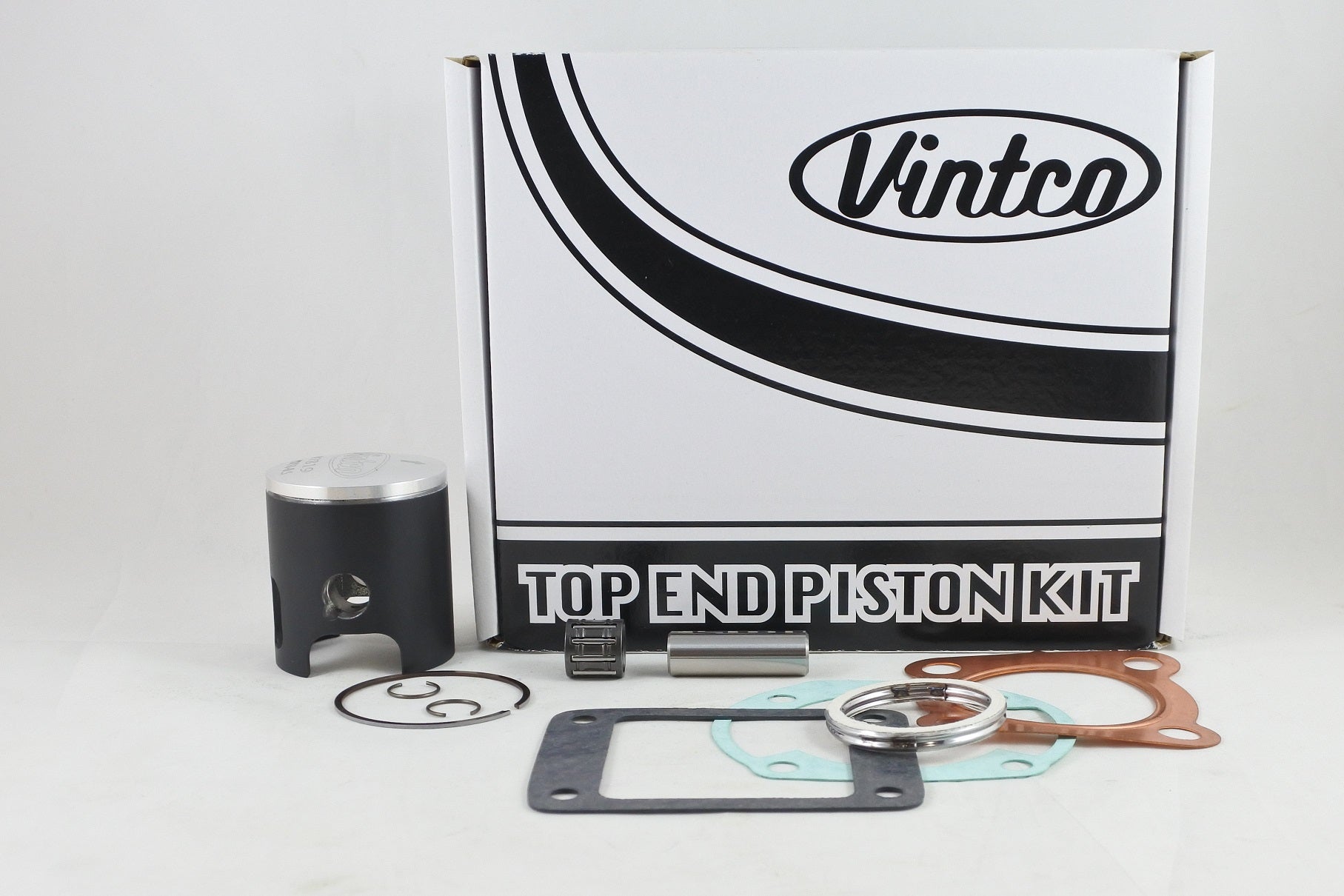

This top end piston kit is designed for the 1980 Yamaha YZ80 and includes the main components required for a top-end rebuild: a forged piston, gasket set and wrist pin bearing. The kit price is 10% lower than the combined price of the individual items.

Features

  • Complete top end kit for engine rebuild work
  • Includes piston, gaskets and wrist pin bearing
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • MOS2-coated piston to support running-in

Specifications

  • VintCo Part Number: KTY24-0.5
  • Piston type: Forged
  • Country of manufacture: Germany
  • Piston size: 49.5 mm
  • Oversize: 0.5 mm
  • Piston measurement: 49.45 mm
  • Clearance: 0.05 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 3R1-11181-00-00
  • Cylinder Base Gasket: 2J5-11351-01-00
  • Reed Valve Gasket: 3TT-13621-00-00
  • Exhaust Pipe Gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1980 Yamaha YZ80
