Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5
  • Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5
Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5

Top End Piston Kit 80-80 Yamaha YZ 125 56.5mm 0.5mm Over Vintco KTY06-0.5

£189.81 GBP
Taxes included. Shipping calculated at checkout.

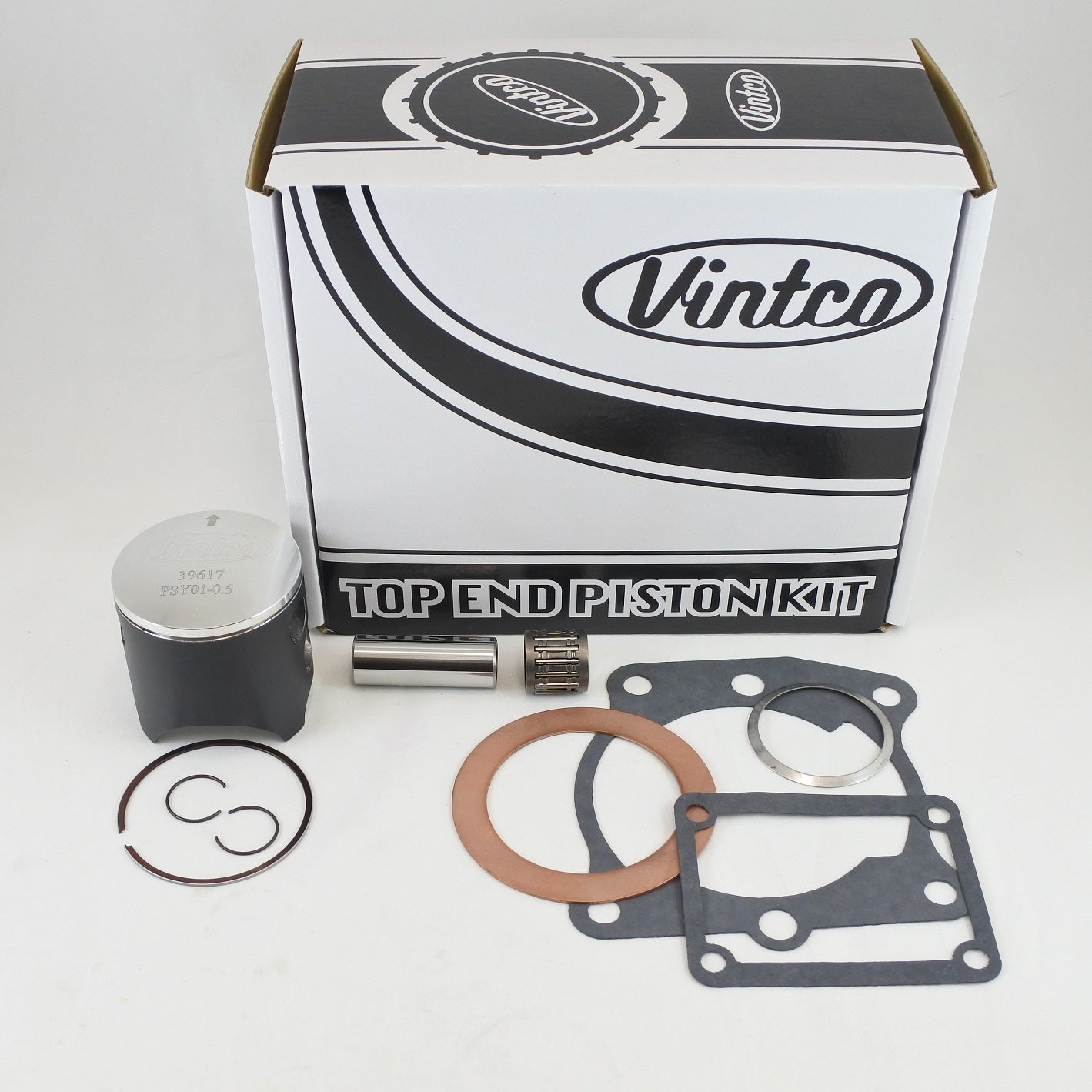

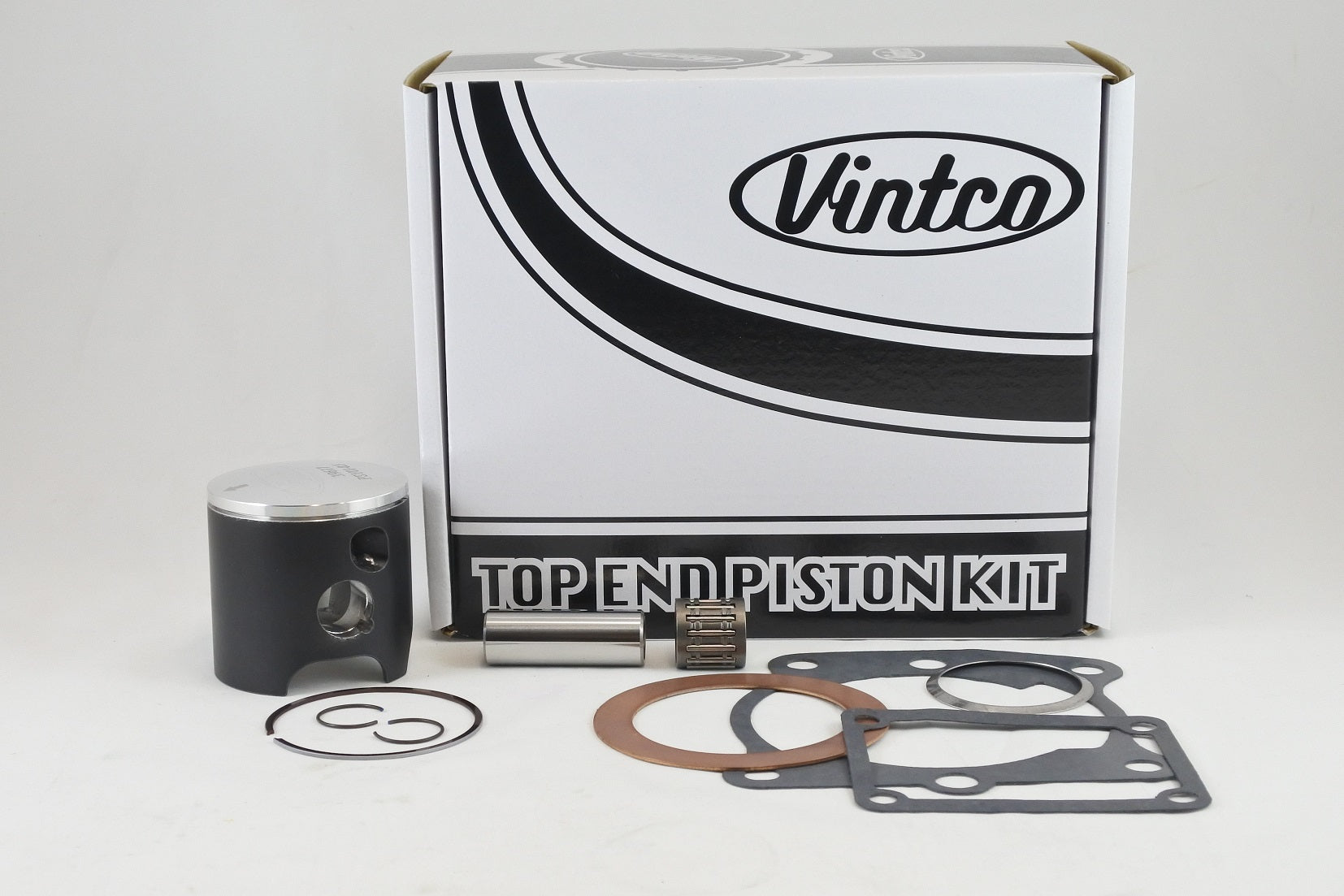

This VintCo top-end piston kit is a complete rebuild kit for the 1980 Yamaha YZ125, supplied in a 56.5 mm size with a +0.5 mm oversize. It includes the piston kit, top-end bearing and a full top-end gasket set to support a straightforward and cost-effective rebuild, with components produced using modern materials and manufacturing techniques for OEM-equivalent or better fit and performance.

Features

  • Complete top-end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes top-end bearing
  • Includes full top-end gasket kit
  • Gasket kit includes head gasket, base gasket, intake gasket and exhaust gasket
  • Intended to help complete a rebuild easily and cost-effectively
  • Kit price includes a 10% saving compared with buying the parts individually
  • More size options are available

Specifications

  • VintCo Part Number: KTY06-0.5
  • Product type: Top End Piston Kit
  • Piston size: 56.5 mm
  • Oversize: +0.5 mm
  • Piston diameter: 56.44 mm
  • Piston clearance: 0.06 mm
  • Piston construction: Forged
  • Piston manufacture: Made in Germany
  • Piston coating: MoS2 coated for break-in

Cross-Reference OEM Part Numbers

  • Piston: 537-11636-02-00
  • Head gasket: 3R3-11181-00-00
  • Base gasket: 3R3-11351-01-00
  • Intake gasket: 3R3-14613-00-00
  • Exhaust gasket: 3R3-14613-00-00
  • Wrist pin bearing: 93310-216L2-00

Vehicle Fitments

  • 1980 Yamaha YZ125
