TOP END PISTON KIT 80-80 KAWASAKI KX 125 56.0MM STANDARD VINTCO KTK05-00

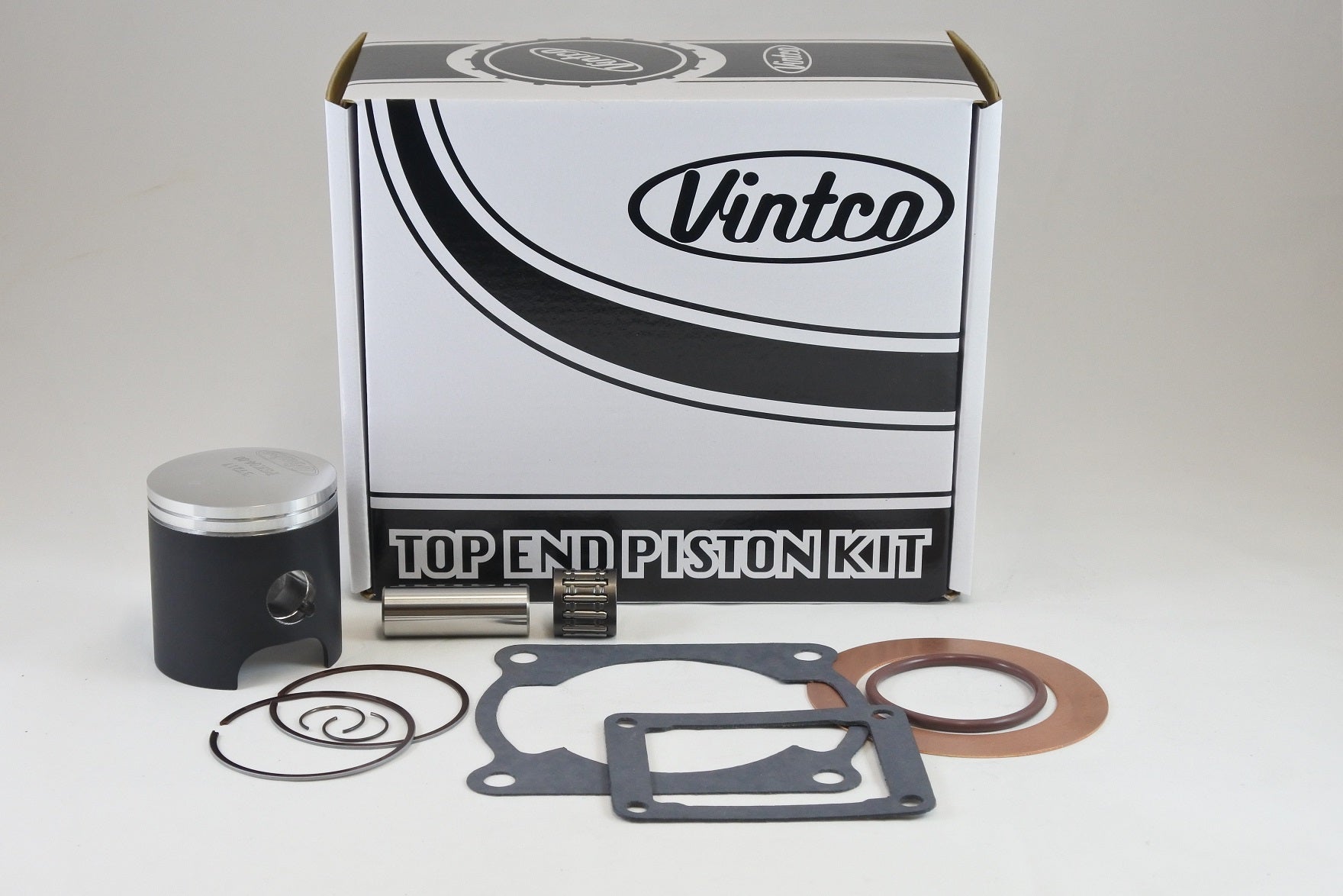

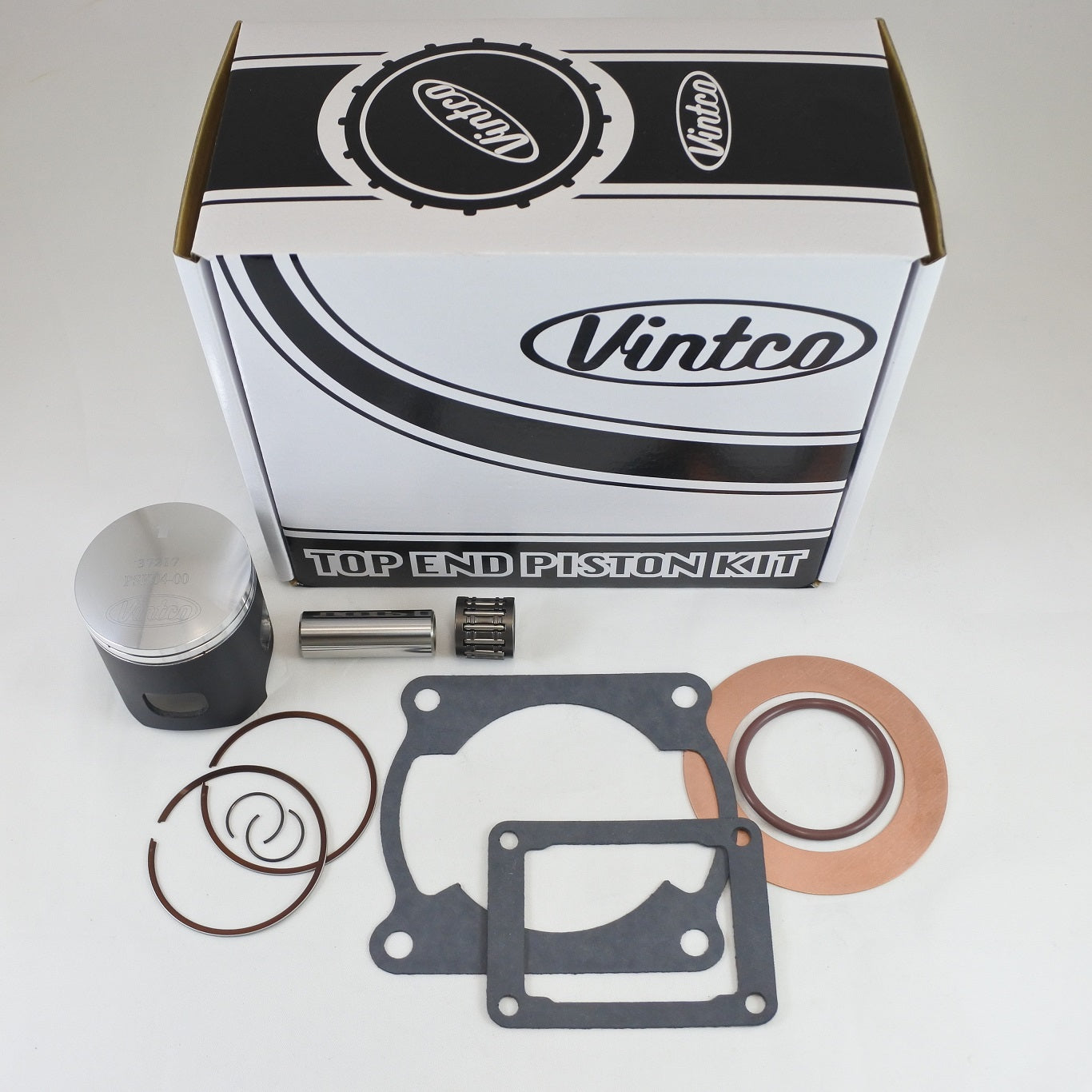

This VintCo top end piston kit is designed for the 1980 Kawasaki KX125 and provides the components required for a standard-bore 56.0 mm top-end rebuild in one package. It includes a piston kit with piston, rings, pin and clips, a top end/wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods and are designed to match OEM fit and performance. The kit is priced at 10% less than purchasing the items individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end/wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gasket
• Designed for standard-bore rebuilds
• OEM part number cross-references provided for fit verification
• Kit price includes a 10% saving compared with purchasing individual items
• Additional size options are available

Specifications

• VintCo Part Number: KTK05-00
• Product Type: Top End Piston Kit
• Bore Size: 56.0 mm
• Bore Type: Standard
• Piston Diameter: 55.94 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2
• Piston Manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13001-1008
• Head Gasket: 11004-1023
• Base Gasket: 11009-1175
• Intake Gasket: 11009-1018
• Exhaust Gasket: 670E3045
• Wrist Pin Bearing: 13033-1007

Vehicle Fitments

• 1980 Kawasaki KX125
