TOP END PISTON KIT 80-80 HONDA CR 125 56.0mm 0.5mm OVER VINTCO KTH04-0.5

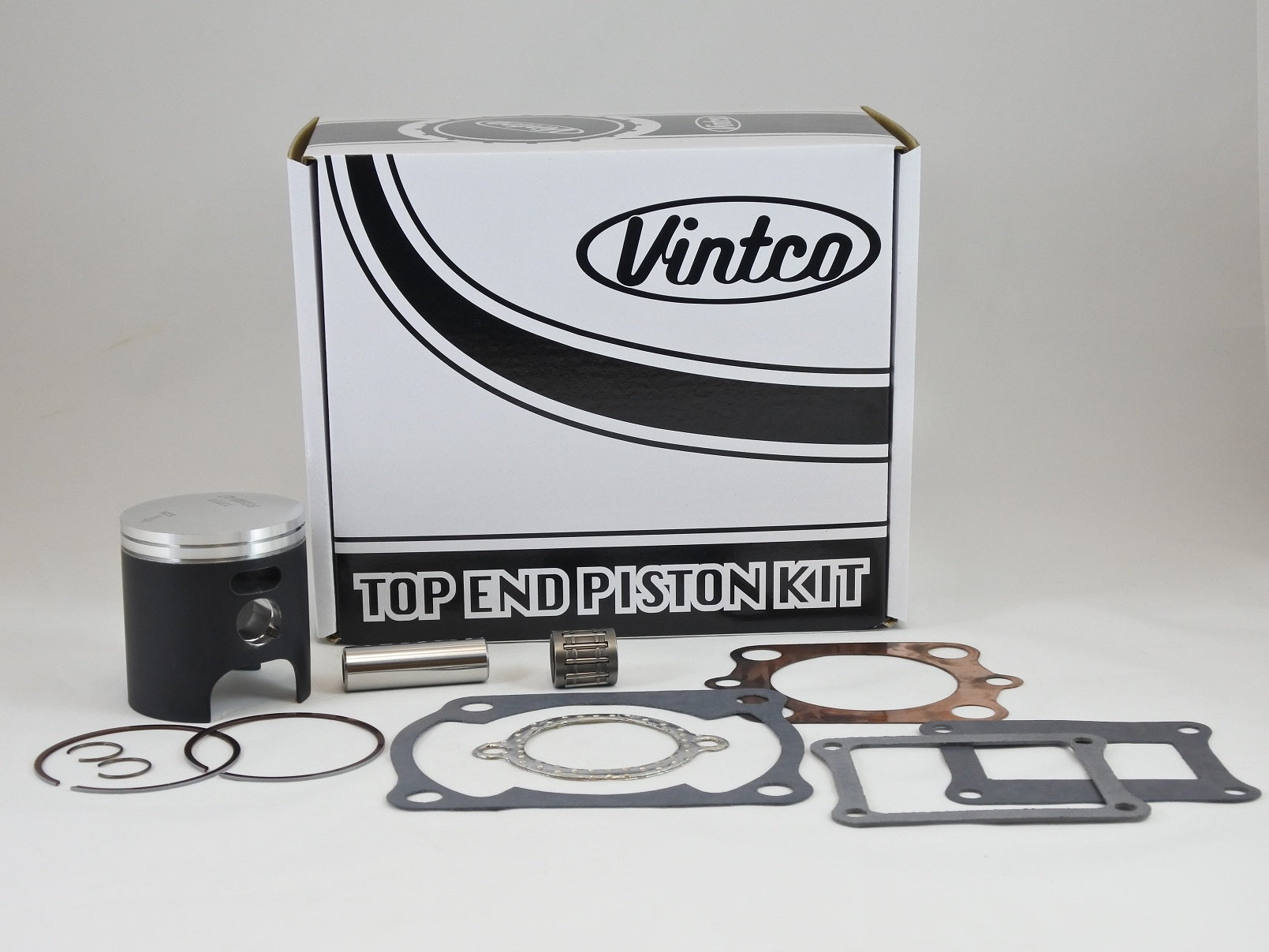

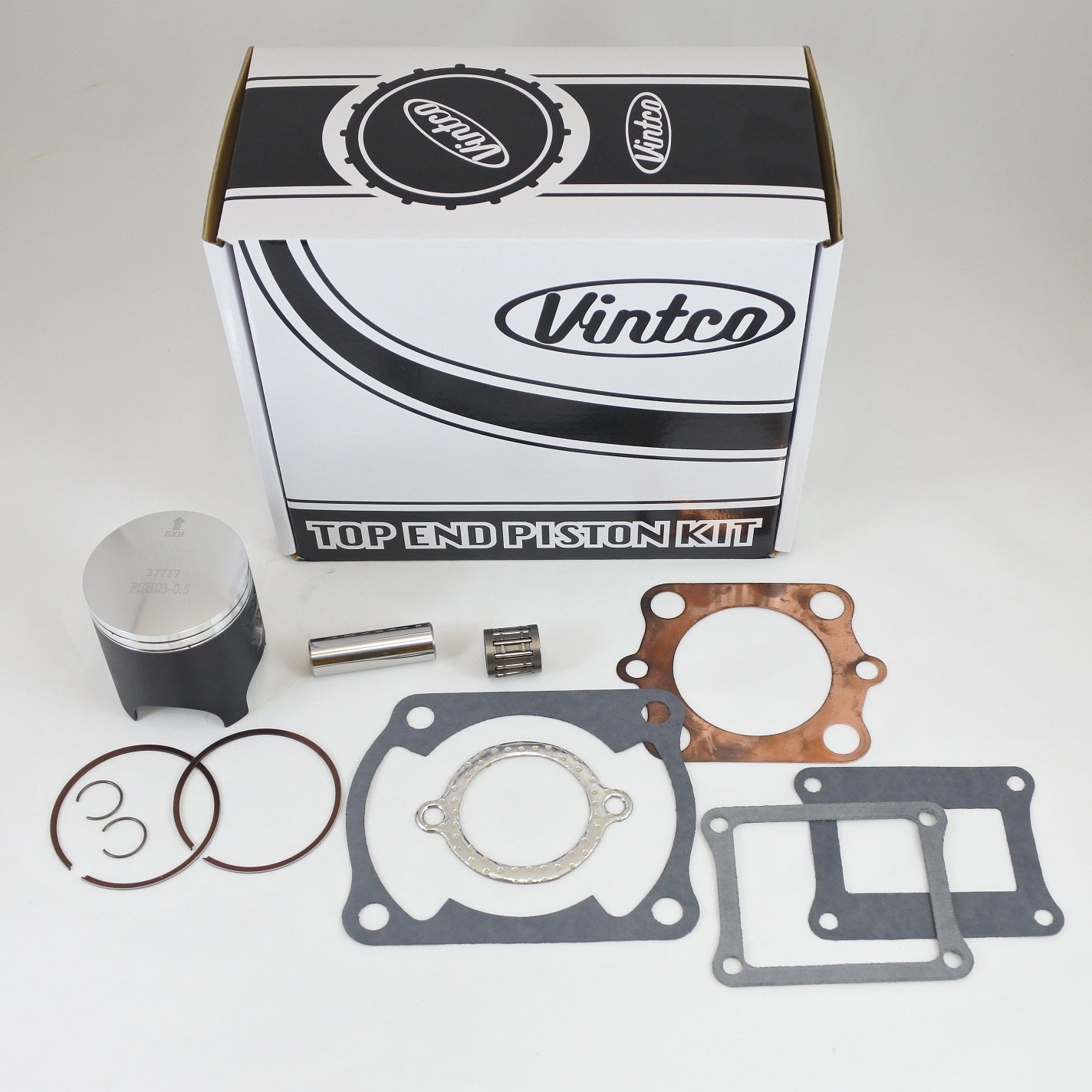

VintCo top end piston kit KTH04-0.5 is a complete rebuild kit for the 1980 Honda CR125, supplied in a 56.0 mm +0.5 mm over size. The kit includes a piston, rings, pin and clips, a top end bearing, and a full top-end gasket set for the head, base, intake and exhaust, providing the parts required for a complete top end rebuild. Components are produced using modern materials and manufacturing techniques for OEM-equivalent fit and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Covers head, base, intake and exhaust sealing points
• Designed for OEM-equivalent fit and performance
• Piston coating supports break-in
• Additional size options are available
• Kit price is 10% lower than purchasing the components individually

Specifications

• VintCo Part Number: KTH04-0.5
• Product Type: Top End Piston Kit
• Piston size: 56.0 mm
• Oversize: +0.5 mm
• Piston measurement: 55.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13103-KA3-000
• Head gasket: 12251-466-000
• Base gasket: 12191-444-306
• Intake gasket: 14131-444-306
• Intake gasket: 14132-444-306
• Exhaust gasket: 18291-466-306
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1980 Honda CR125
