TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5
  • TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5
  • TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5
  • TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5
  • TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5
TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5

TOP END PISTON KIT 79-81 YAMAHA DT MX 175 67.5MM 1.5MM OVER VINTCO KTY26-1.5

£177.54 GBP
Taxes included. Shipping calculated at checkout.

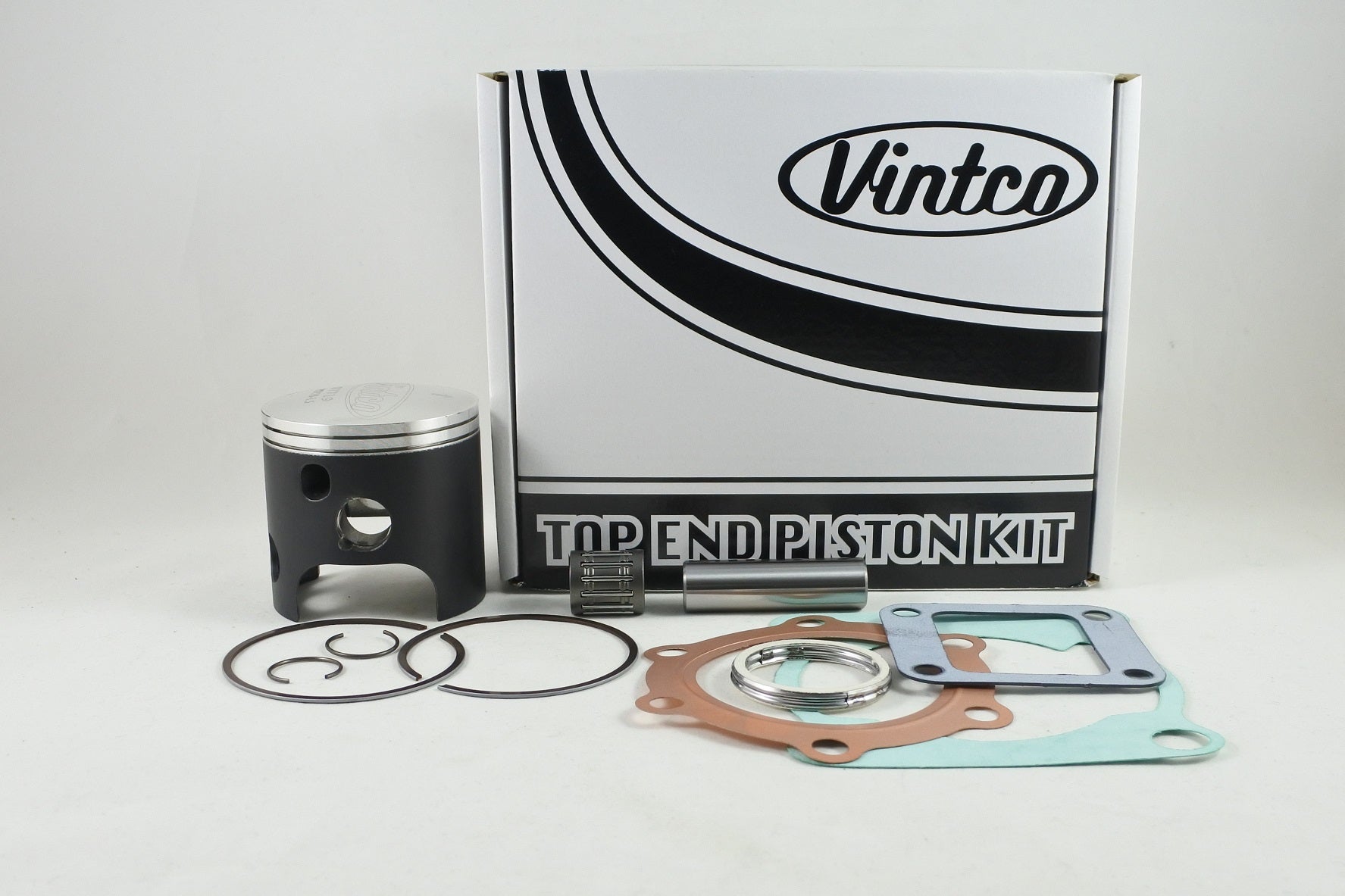

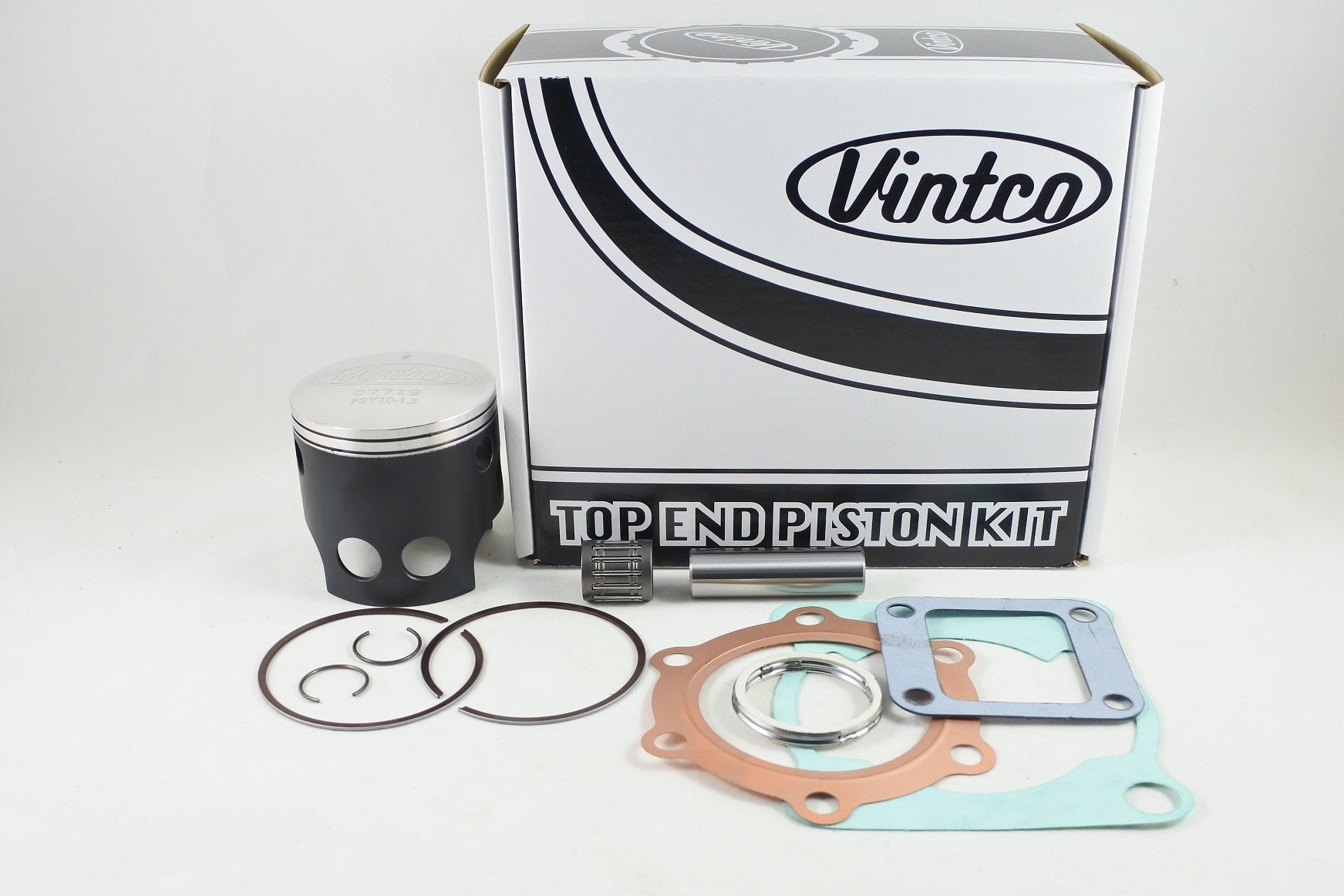

This top end piston kit is for 1979–1981 Yamaha DT175 and MX175 models and includes a forged oversize piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing. Kit pricing includes a 10% reduction compared with purchasing the components individually.

Features

  • Complete top end kit
  • Includes piston, gaskets and wrist pin bearing
  • MOS2-coated piston for break-in
  • Suitable for top end rebuild work

Specifications

  • VintCo Part Number: KTY26-1.5
  • Item Category: Top End Piston Kits
  • Piston type: Forged
  • Country of manufacture: Germany
  • Nominal size: 67.5 mm
  • Oversize: 1.5 mm
  • Piston measurement: 67.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 1W2-11181-00-00
  • Base gasket: 18G-11351-02-00
  • Reed valve gasket: 87A-13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1979 Yamaha DT175
  • 1979 Yamaha MX175
  • 1980 Yamaha DT175
  • 1980 Yamaha MX175
  • 1981 Yamaha DT175
  • 1981 Yamaha MX175
