Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00
  • Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00
  • Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00
  • Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00
  • Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00
Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00

Top End Piston Kit 79-81 Yamaha Dt MX 175 66mm Standard Vintco KTY26-00

£177.54 GBP
Taxes included. Shipping calculated at checkout.

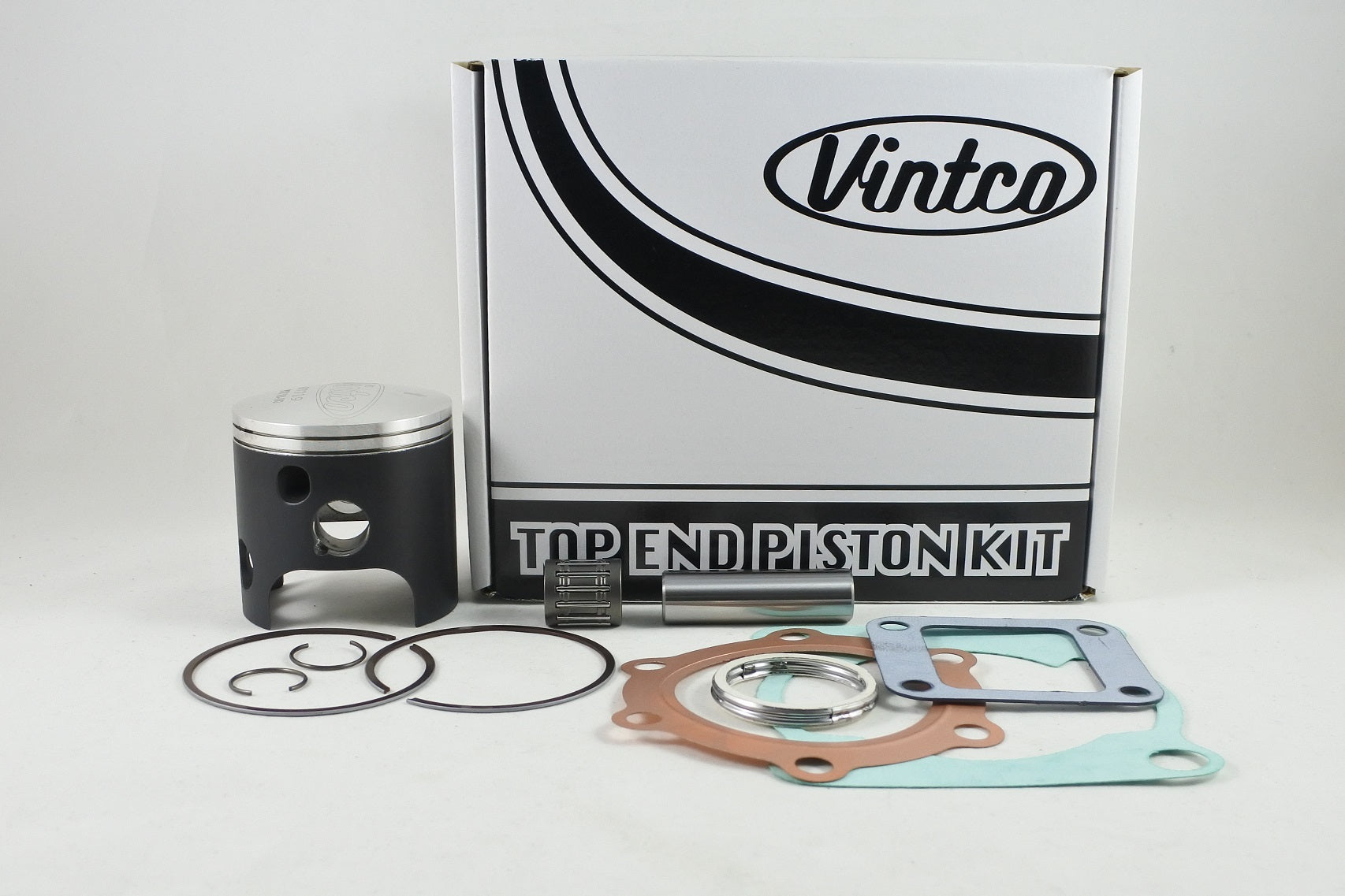

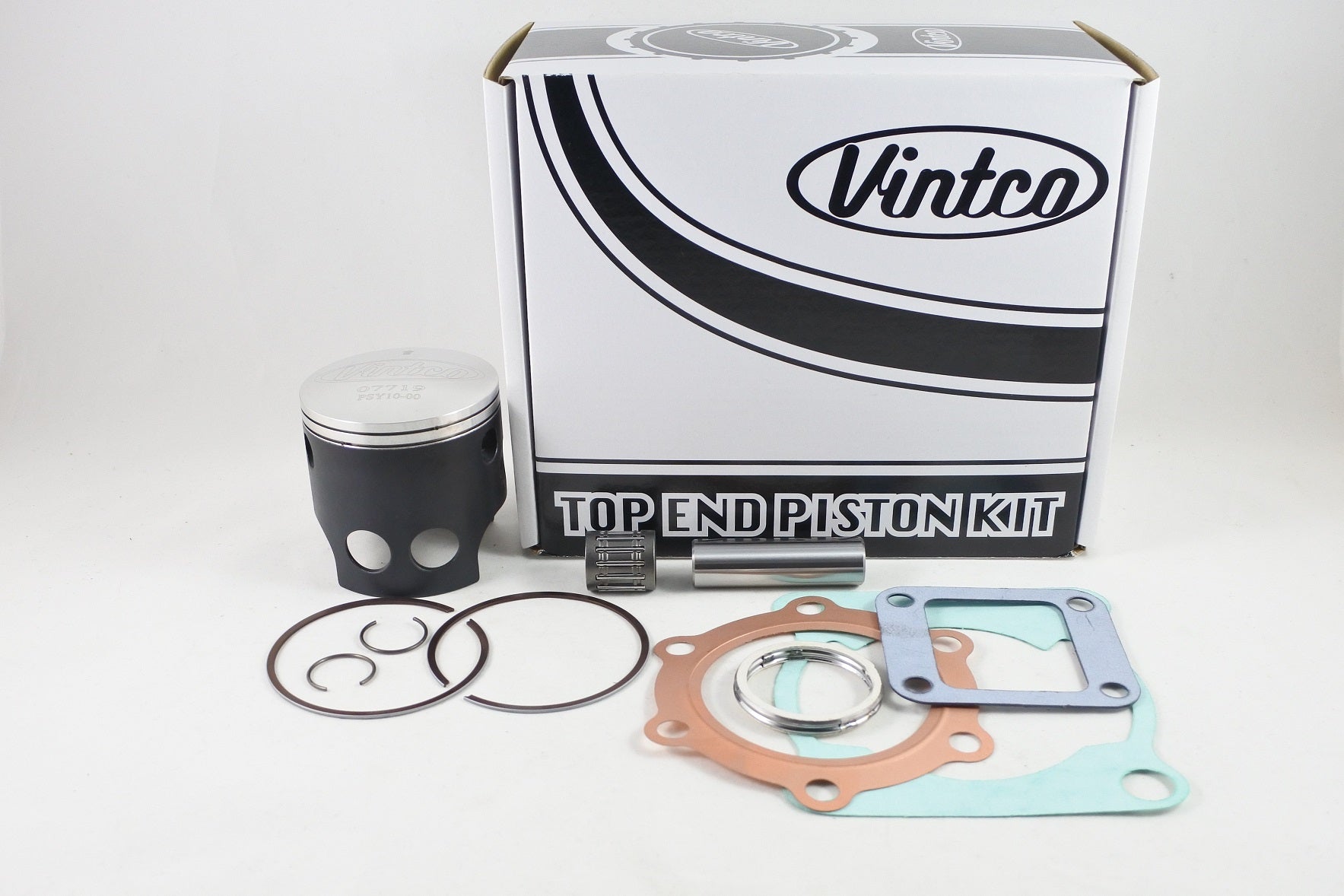

This top end piston kit is for 1979-1981 Yamaha DT175 and MX175 models and is supplied as a standard 66 mm assembly for top end service work. The kit includes a forged piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing. Kit pricing reflects a 10% saving compared with purchasing the components individually.

Features

  • Complete top end kit for piston replacement
  • Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
  • MOS2-coated piston surface for running-in

Specifications

  • VintCo Part Number: KTY26-00
  • Nominal piston size: 66 mm standard
  • Piston measurement: 65.94 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head Gasket: 1W2-11181-00-00
  • Base Gasket: 18G-11351-02-00
  • Reed Valve Gasket: 87A-13621-00-00
  • Exhaust Pipe Gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1979 Yamaha DT175
  • 1979 Yamaha MX175
  • 1980 Yamaha DT175
  • 1980 Yamaha MX175
  • 1981 Yamaha DT175
  • 1981 Yamaha MX175
