Top End Piston Kit 79-81 Suzuki Pe Rs RM 250 68.0mm 1.0mm Over Vintco KTS04-1.0

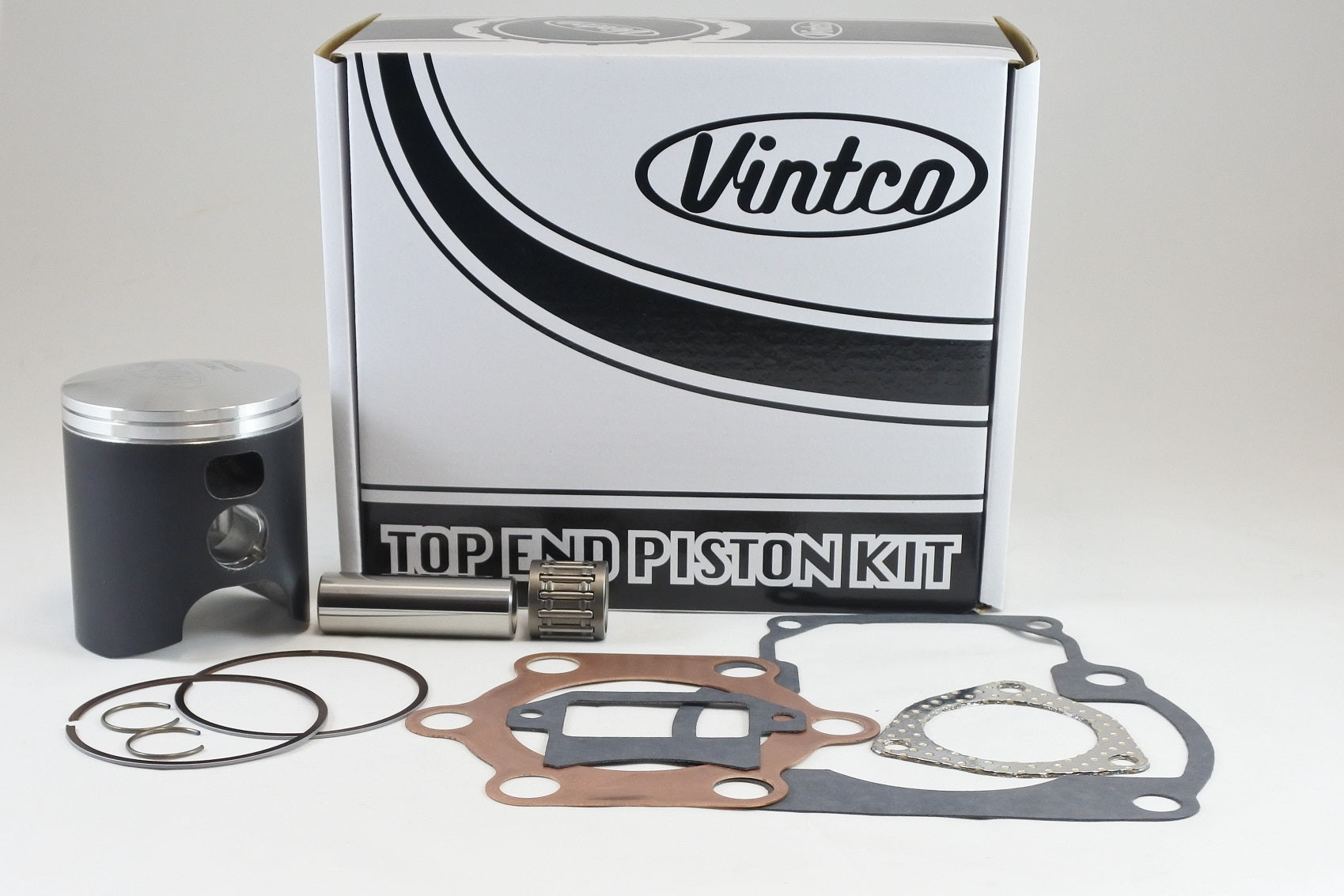

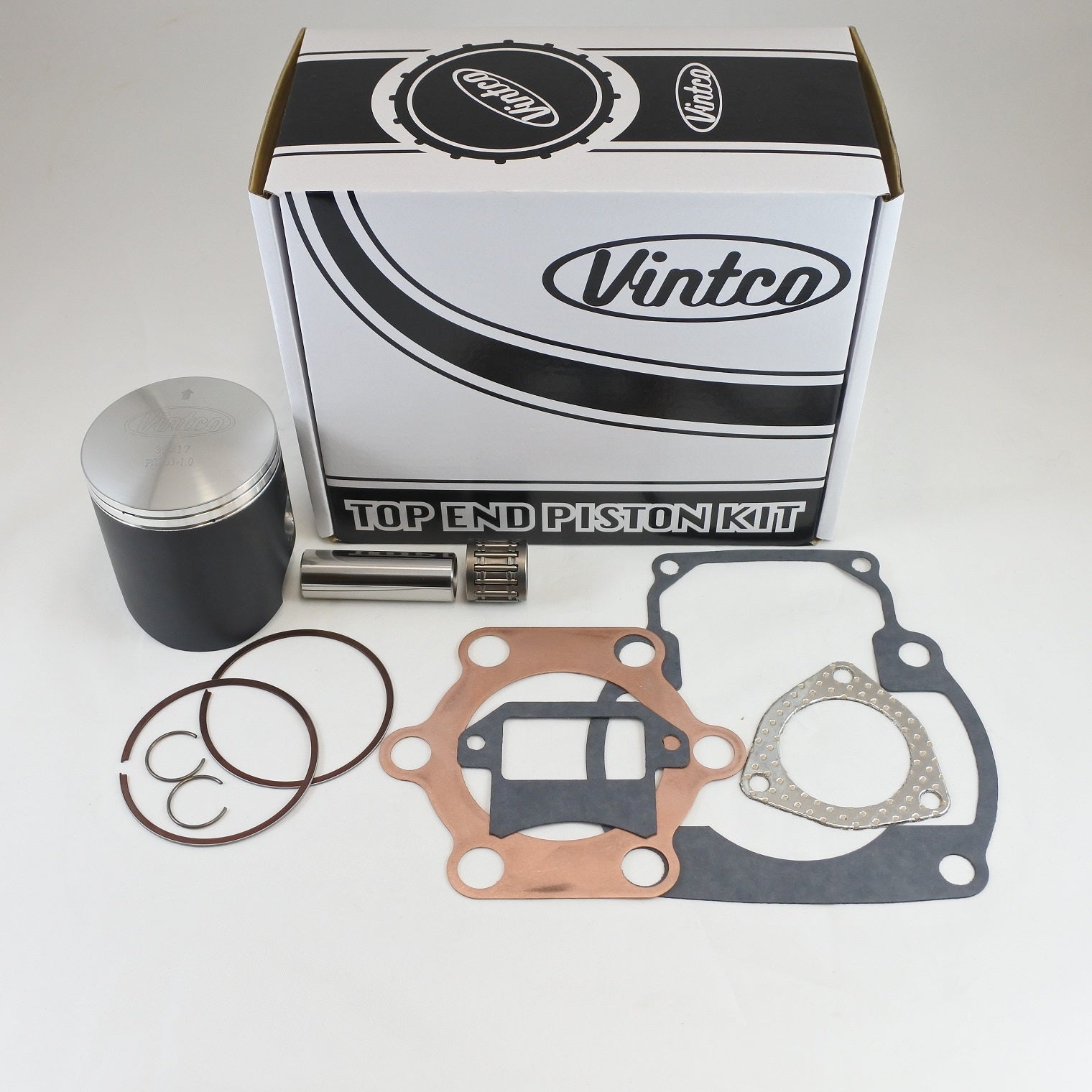

VintCo top end piston kit KTS04-1.0 is a complete rebuild set for selected 1979-1981 Suzuki PE250, RS250 and RM250 models, supplying a nominal 68.0 mm piston package in 1.0 mm oversize. The kit includes the piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set for the head, base, intake and exhaust. Components are produced with modern materials and manufacturing techniques and are intended to provide OEM-equivalent or better fit and performance for a straightforward, cost-effective top-end rebuild.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin, clips, wrist pin bearing and full top-end gasket set
• Supplied with head gasket, base gasket, intake gasket and exhaust gasket
• Intended for 1.0 mm oversize top-end rebuilds
• OEM cross-reference numbers provided for exact fitment verification
• Kit pricing includes a 10% saving compared with purchasing the items individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS04-1.0
• Item Category: Top End Piston Kits
• Nominal piston size: 68.0 mm
• Oversize: 1.0 mm
• Piston diameter: 67.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2, for running-in
• Head gasket thickness: 0.8 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-40303
• Base gasket: 11241-40301-H17
• Intake gasket: 13156-40400-H17
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1979 Suzuki RM250
• 1980 Suzuki RM250
• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
