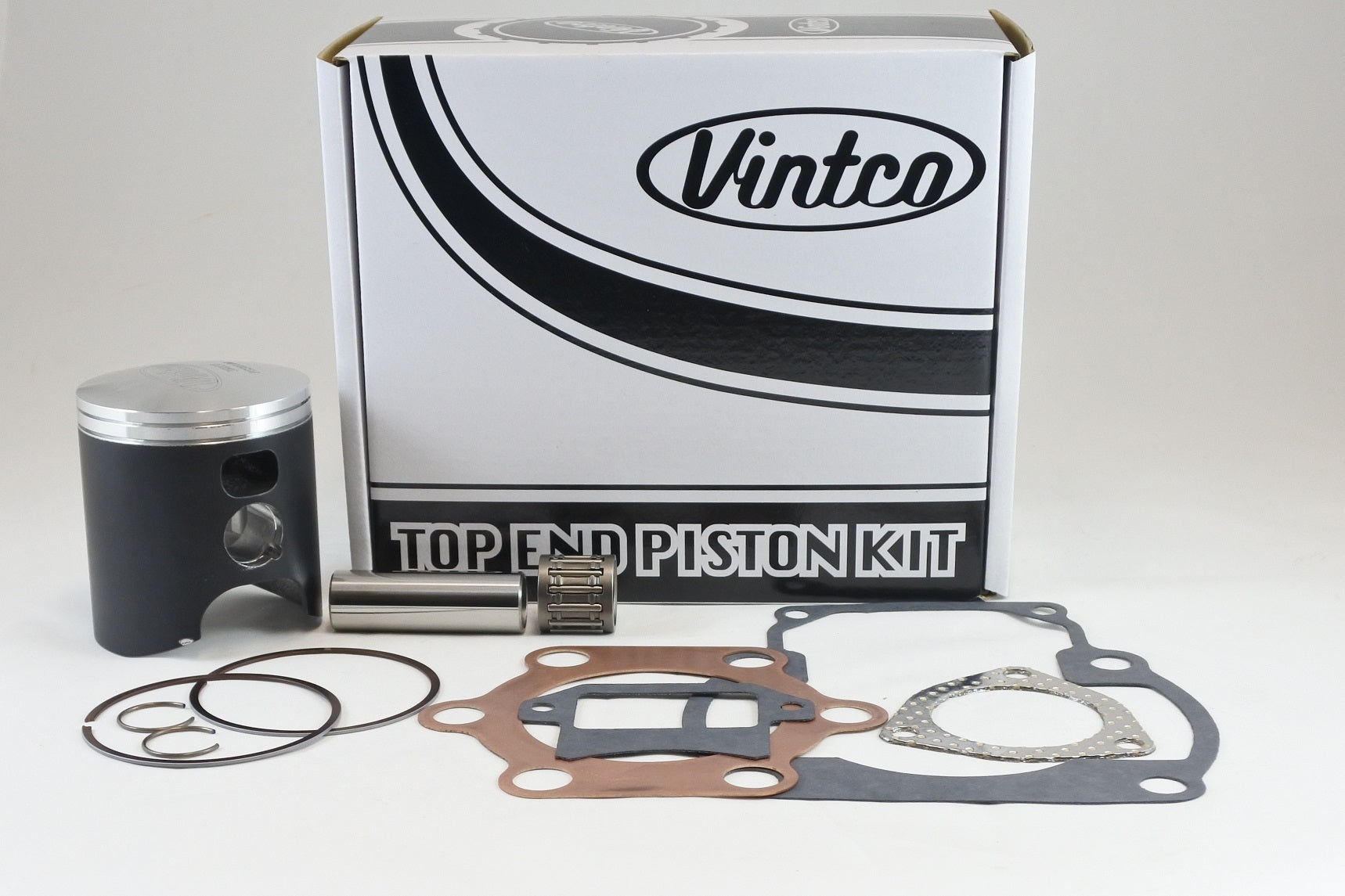

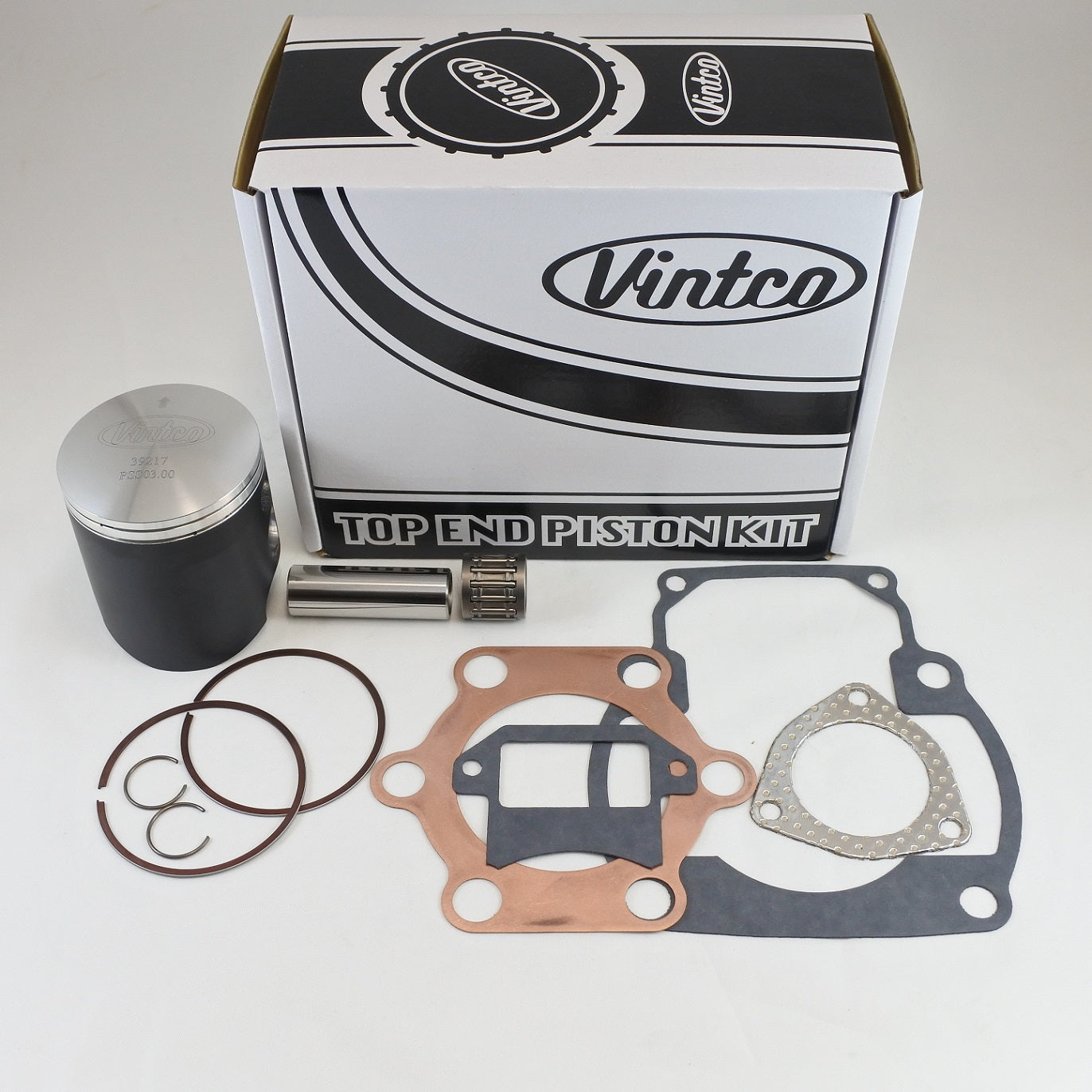

TOP END PISTON KIT 79-81 SUZUKI PE RM RS 250 67.0mm STANDARD VINTCO KTS04-00

VintCo KTS04-00 is a complete top end piston kit for 1979 to 1981 Suzuki RM250, PE250 and RS250 models, supplied in 67.0 mm standard bore for top-end rebuild work. The kit includes a forged piston with rings, pin and clips, a top end bearing, and a full top-end gasket set covering the head, base, intake and exhaust. The piston is made in Germany and MoS2-coated for running-in, and the components are produced using modern materials and manufacturing methods to provide OEM-level fit and performance. OEM reference numbers are included for fitment verification, additional size options are available, and the kit price is 10% lower than buying the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended for standard bore rebuilds
• OEM reference numbers provided for fitment verification
• Produced for OEM-level fit and performance
• Additional size options available
• Kit pricing is 10% lower than purchasing the items individually

Specifications

• VintCo Part Number: KTS04-00
• Bore size: 67.0 mm standard
• Piston diameter: 66.94 mm
• Piston-to-bore clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston origin: Germany
• Head gasket thickness: 0.8 mm

Cross-Reference OEM Part Numbers

• Piston: 12110-40312
• Head gasket: 11141-40303
• Base gasket: 11241-40301-H17
• Intake gasket: 13156-40400-H17
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1979 Suzuki RM250
• 1980 Suzuki RM250
• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
