Top End Piston Kit 79-80 Suzuki RM 125 55.5mm Vintco KTS02-1.5

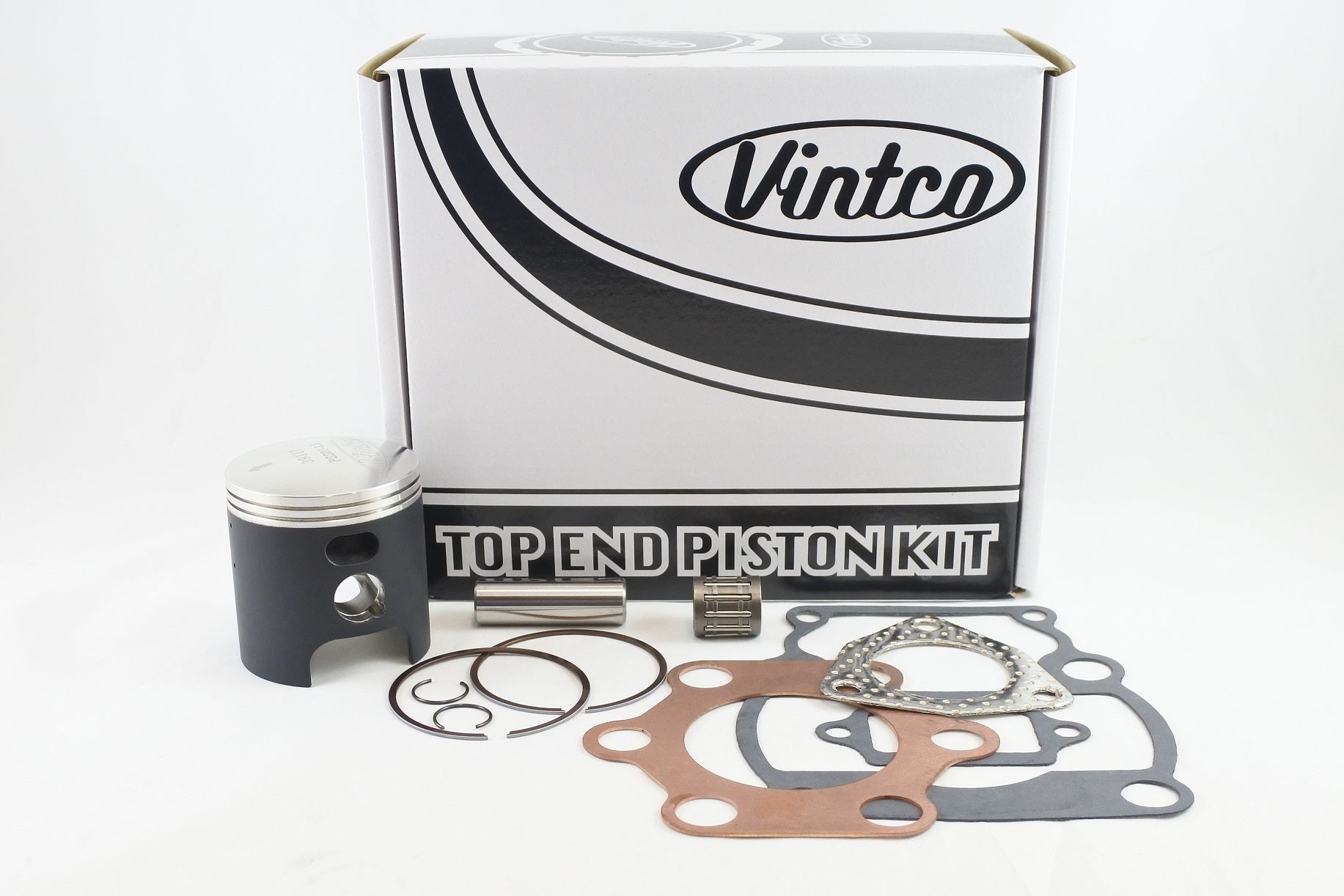

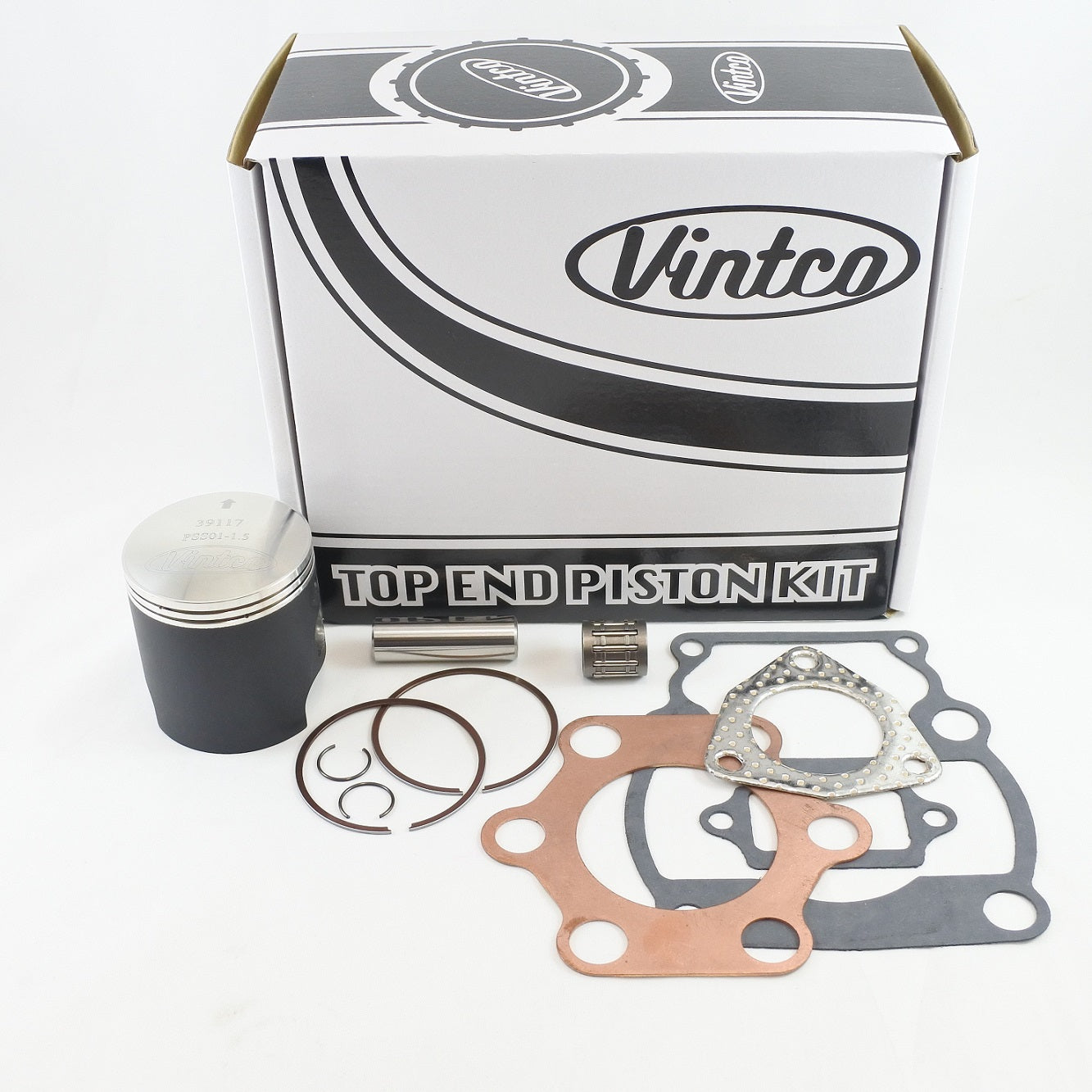

This VintCo top end piston kit is a complete rebuild set for 1979-1980 Suzuki RM125 models, supplied for a 55.5 mm bore size (+1.5 mm oversize). The kit includes a piston, rings, pin, clips, a top end bearing, and a full top-end gasket set with head, base, intake, and exhaust gaskets. Components are manufactured using modern materials and production methods for OEM-equivalent fit and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket, base gasket, intake gasket and exhaust gasket
• OEM cross-reference numbers provided for fitment verification
• Kit price includes a 10% saving compared with purchasing the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTS02-1.5
• Application: Suzuki RM125
• Nominal bore size: 55.5 mm
• Oversize: +1.5 mm
• Piston diameter: 55.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11141-40201
• Base gasket: 11241-40201-H17
• Intake gasket: 13156-40200-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 13033-035

Vehicle Fitments

• 1979 Suzuki RM125
• 1980 Suzuki RM125
