Top End Piston Kit 79-80 Suzuki RM 125 54.0mm Standard Vintco KTS02-00

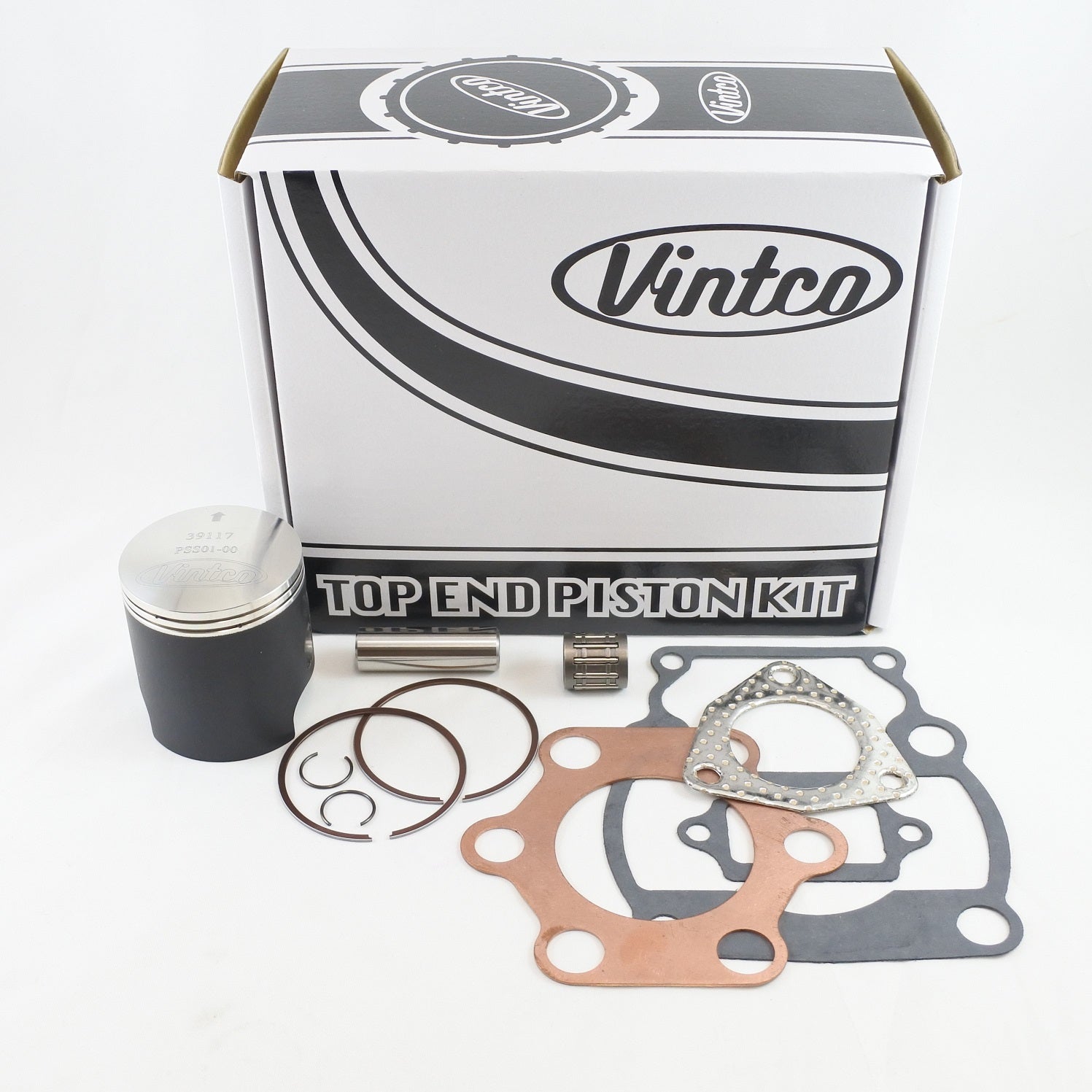

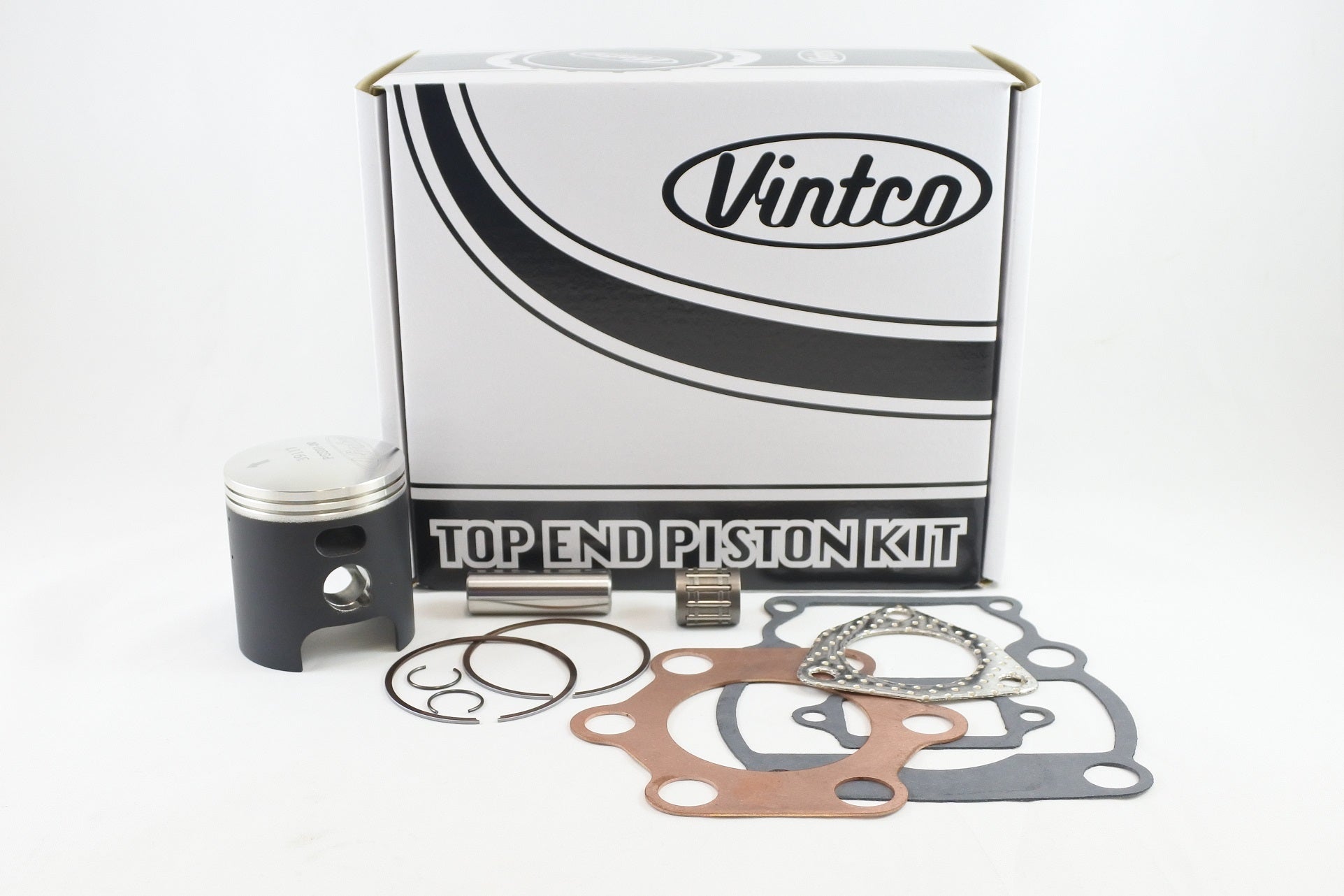

VintCo top end piston kit for 1979-1980 Suzuki RM125 models, supplied as a complete rebuild set with piston, rings, pin, clips, top end bearing, and a full top-end gasket kit including head, base, intake, and exhaust gaskets. This standard-bore kit is manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit price is 10% lower than purchasing the components individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended for Suzuki RM125 applications
• OEM-referenced fitment
• Suitable for standard-bore rebuilds
• Manufactured using modern materials and production techniques

Specifications

• VintCo Part Number: KTS02-00
• Product Type: Top End Piston Kit
• Bore Size: 54.0 mm
• Bore Type: Standard
• Piston Diameter: 53.94 mm
• Piston Clearance: 0.06 mm
• Piston Construction: Forged
• Piston Coating: MoS2 break-in coating
• Country of Manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-41311
• Head Gasket: 11141-40201
• Base Gasket: 11241-40201-H17
• Intake Gasket: 13156-40200-H17
• Exhaust Gasket: 14181-40200-H17
• Wrist Pin Bearing: 13033-035

Vehicle Fitments

• 1979 Suzuki RM125
• 1980 Suzuki RM125
