TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5
  • TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5
  • TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5
  • TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5
  • TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5
TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5

TOP END PISTON KIT 79-79 YAMAHA RD 400 64.5mm 0.5mm OVER VINTCO KTY18-0.5

£421.24 GBP
Taxes included. Shipping calculated at checkout.

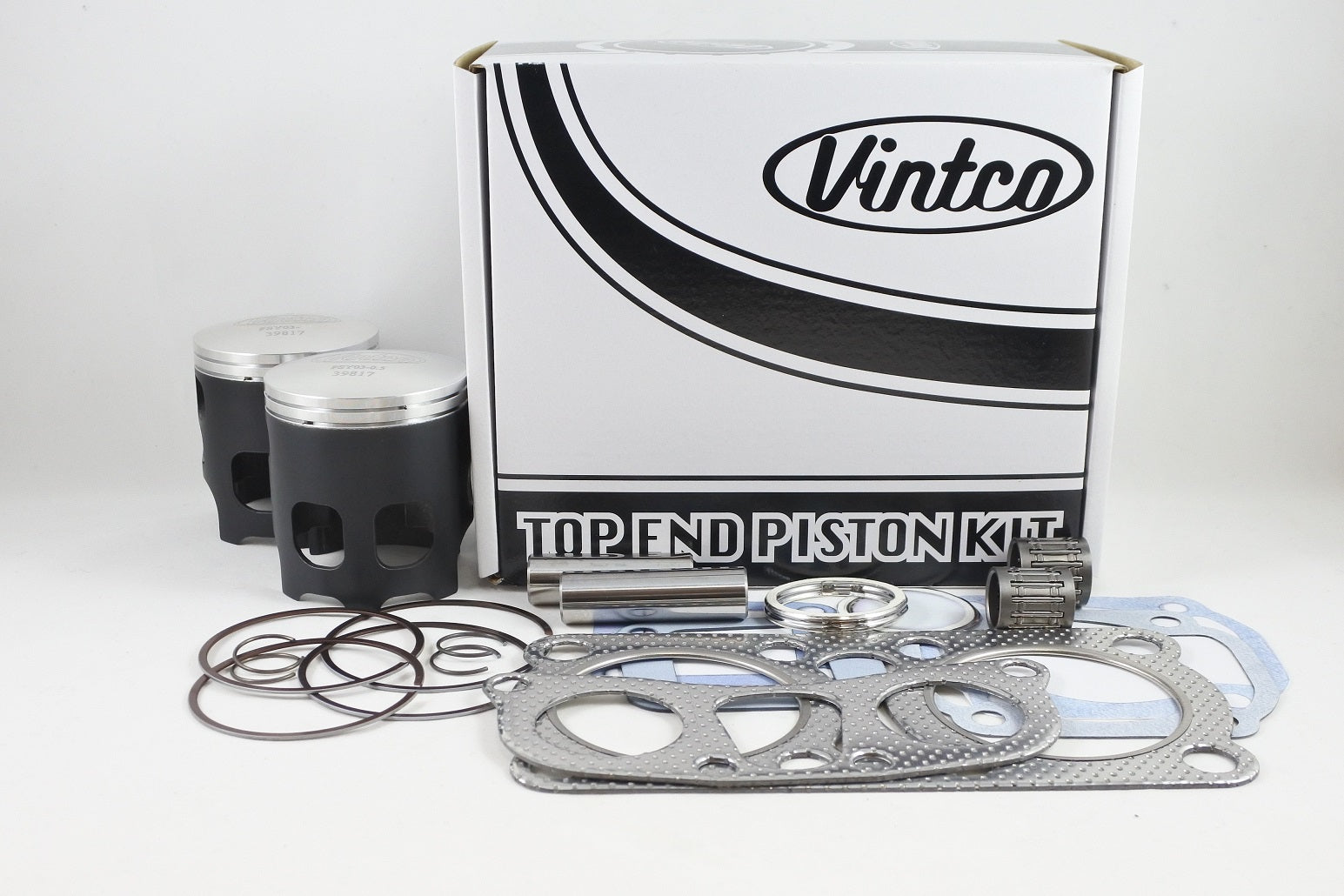

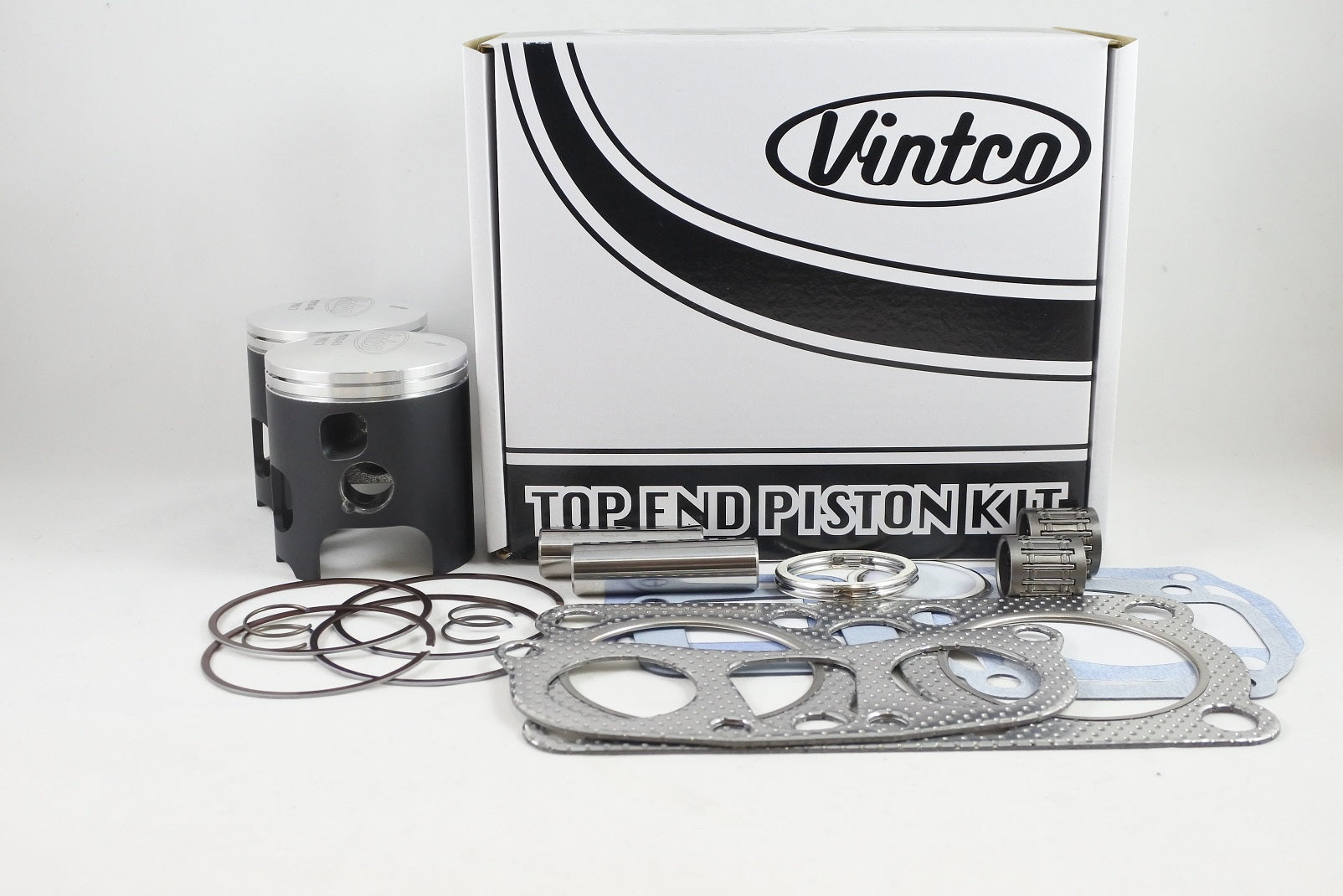

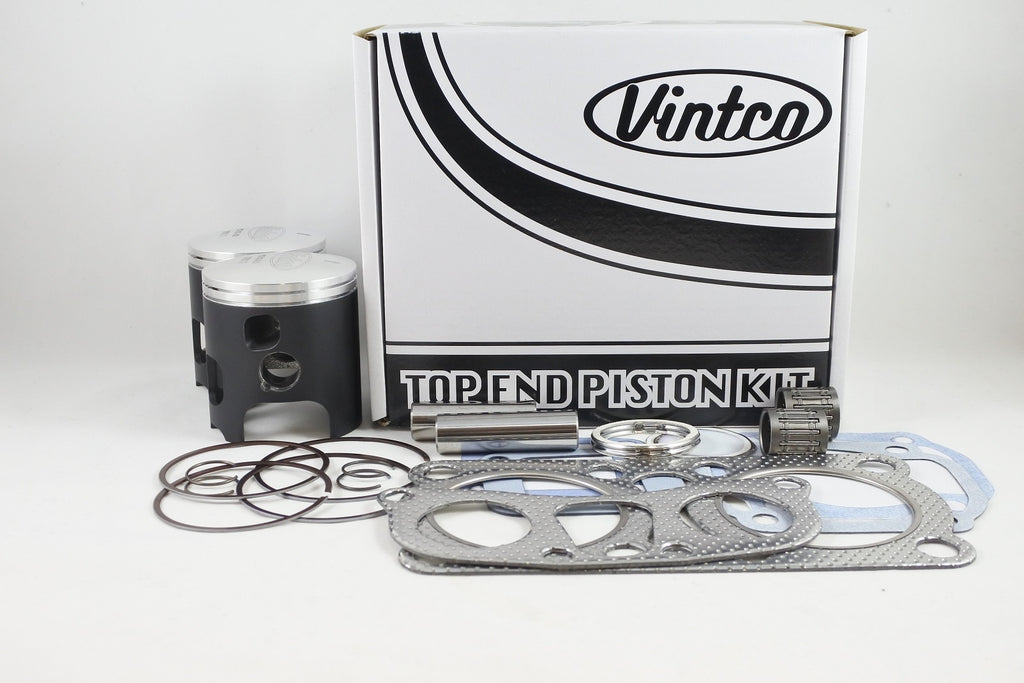

VintCo top end piston kit for the 1979 Yamaha RD400, supplied in 64.5 mm size with 0.5 mm oversize. The kit includes a forged piston made in Germany with MoS2 coating for break-in, along with cylinder base gaskets, an intake gasket, exhaust pipe gaskets and wrist pin bearings.

Features

  • Complete top end piston kit
  • Includes forged piston
  • Includes cylinder base gaskets
  • Includes intake gasket
  • Includes exhaust pipe gaskets
  • Includes wrist pin bearings
  • MoS2-coated piston for break-in

Specifications

  • VintCo Part Number: KTY18-0.5
  • Piston size: 64.5 mm
  • Oversize: 0.5 mm over
  • Piston diameter: 64.44 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Piston: 360-11636-03-00
  • Piston: 1A1-11636-00-00
  • Cylinder Base Gasket: 2V0-11181-10-00
  • Cylinder Base Gasket: 278-11351-11-00
  • Intake Gasket: 87A-13621-00-00
  • Exhaust Pipe Gasket: 3PA-14613-10-00
  • Exhaust Pipe Gasket: 2V0-14613-10-00

Vehicle Fitments

  • 1979 Yamaha RD400
