Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5
  • Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5
  • Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5
  • Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5
  • Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5
Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5

Top End Piston Kit 78-81 Suzuki RM 80 50.5mm 1.5mm Over Vintco KTS12-1.5

£124.62 GBP
Taxes included. Shipping calculated at checkout.

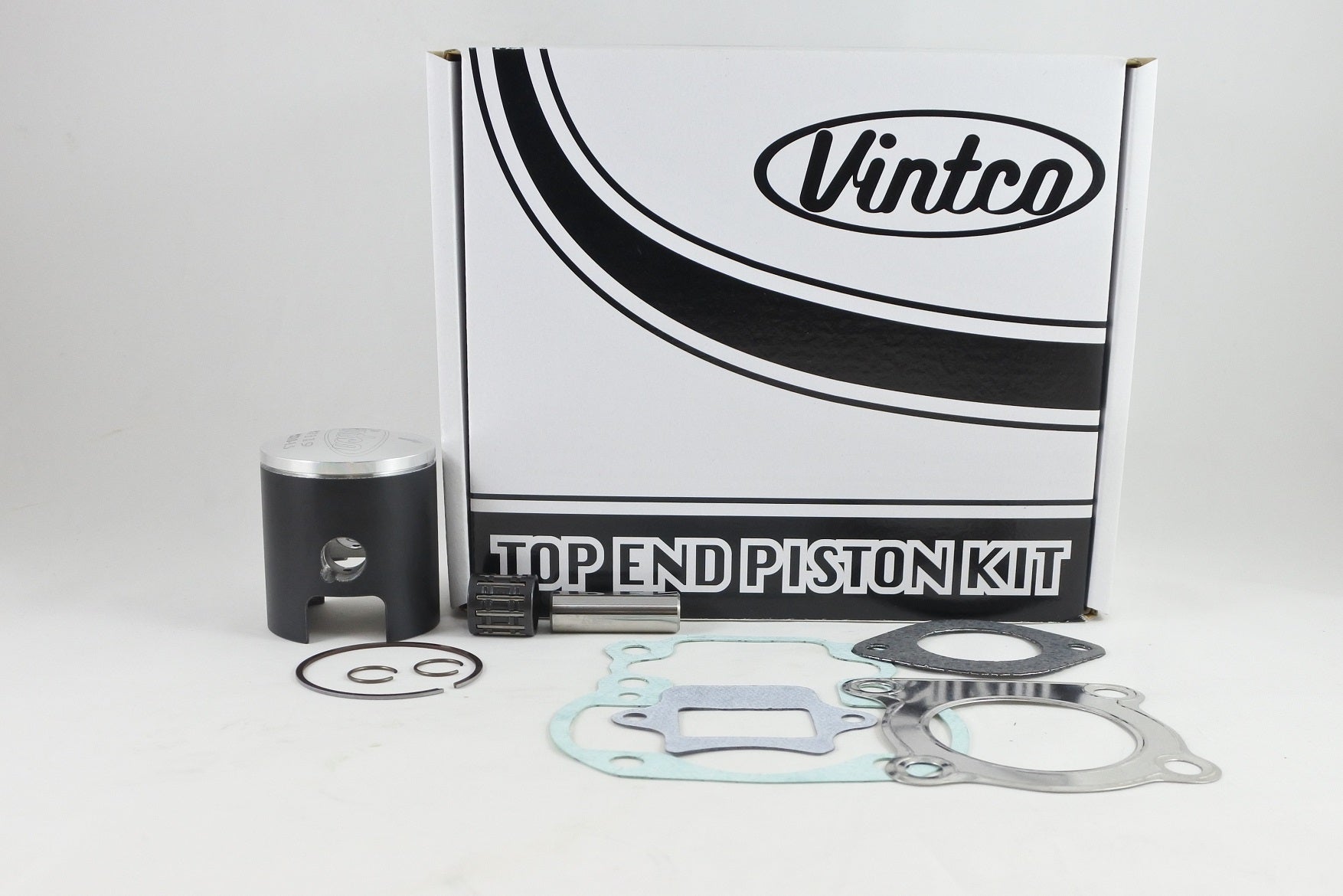

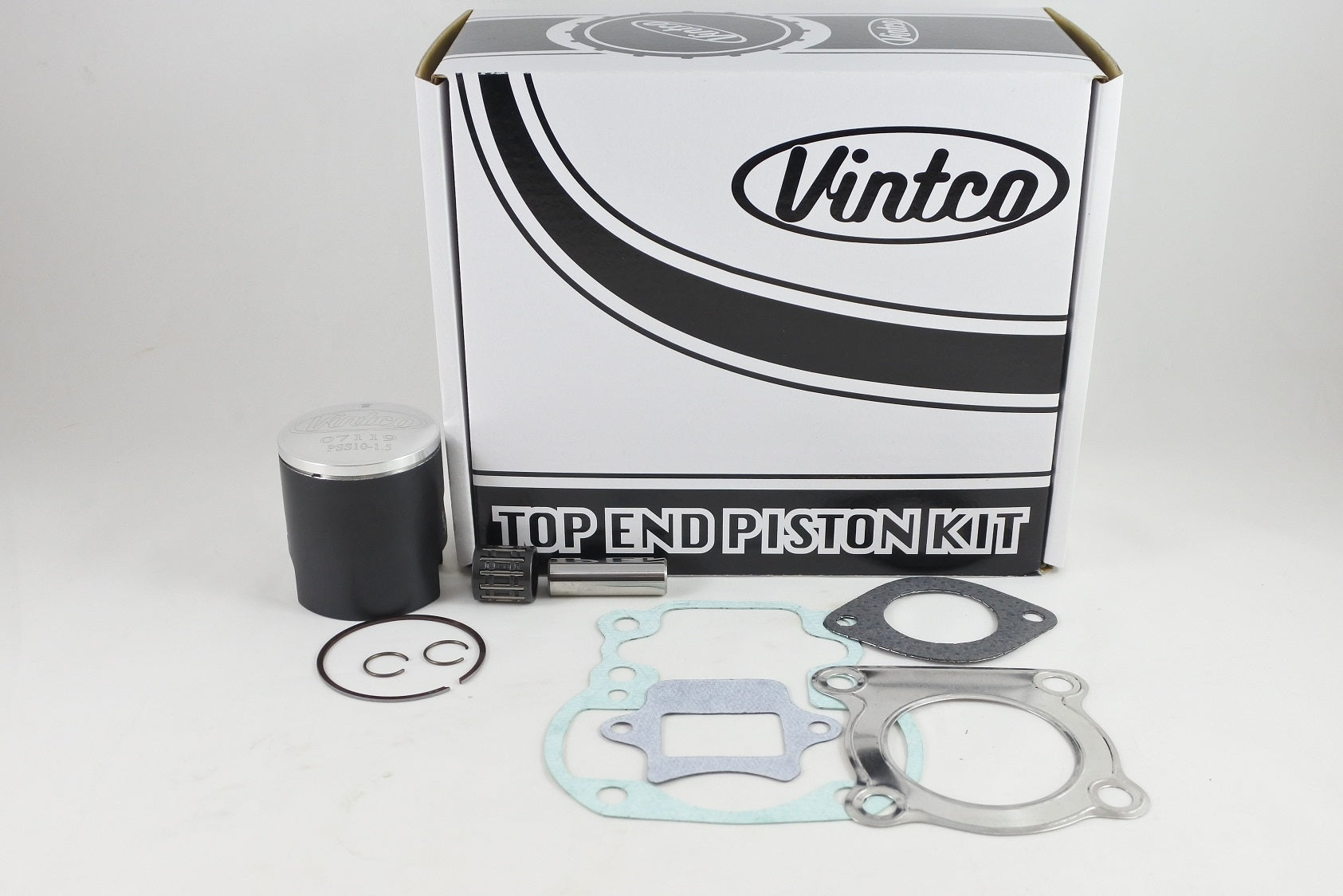

VintCo top end piston kit for Suzuki RM80 models from 1978 to 1981, supplied as a complete set for top-end rebuild work. The kit includes a piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake, and exhaust gaskets. It is intended for 1.5 mm oversize applications and is designed to provide OEM-equivalent or better fitment and performance.

Features

  • Complete top-end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes head gasket, base gasket, intake gasket, and exhaust gasket
  • Intended for oversize top-end rebuild applications
  • Designed for OEM-equivalent or better fitment and performance
  • Manufactured using modern materials and manufacturing techniques
  • Kit price includes a 10% saving compared with purchasing the components individually

Specifications

  • VintCo Part Number: KTS12-1.5
  • Piston size: 50.45 mm
  • Nominal size reference: 50.5 mm
  • Oversize: +1.5 mm
  • Clearance: 0.05 mm
  • Piston type: Forged
  • Piston coating: German MoS2 coating

Cross-Reference OEM Part Numbers

  • Head gasket: 11141-46082
  • Base gasket: 11241-46900-H17
  • Intake gasket: 13156-46001-H17
  • Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

  • 1978 Suzuki RM80
  • 1979 Suzuki RM80
  • 1980 Suzuki RM80
  • 1981 Suzuki RM80
