Top End Piston Kit 78-81 Suzuki RM 80 50.00mm 1.0mm Over Vintco KTS12-1.0

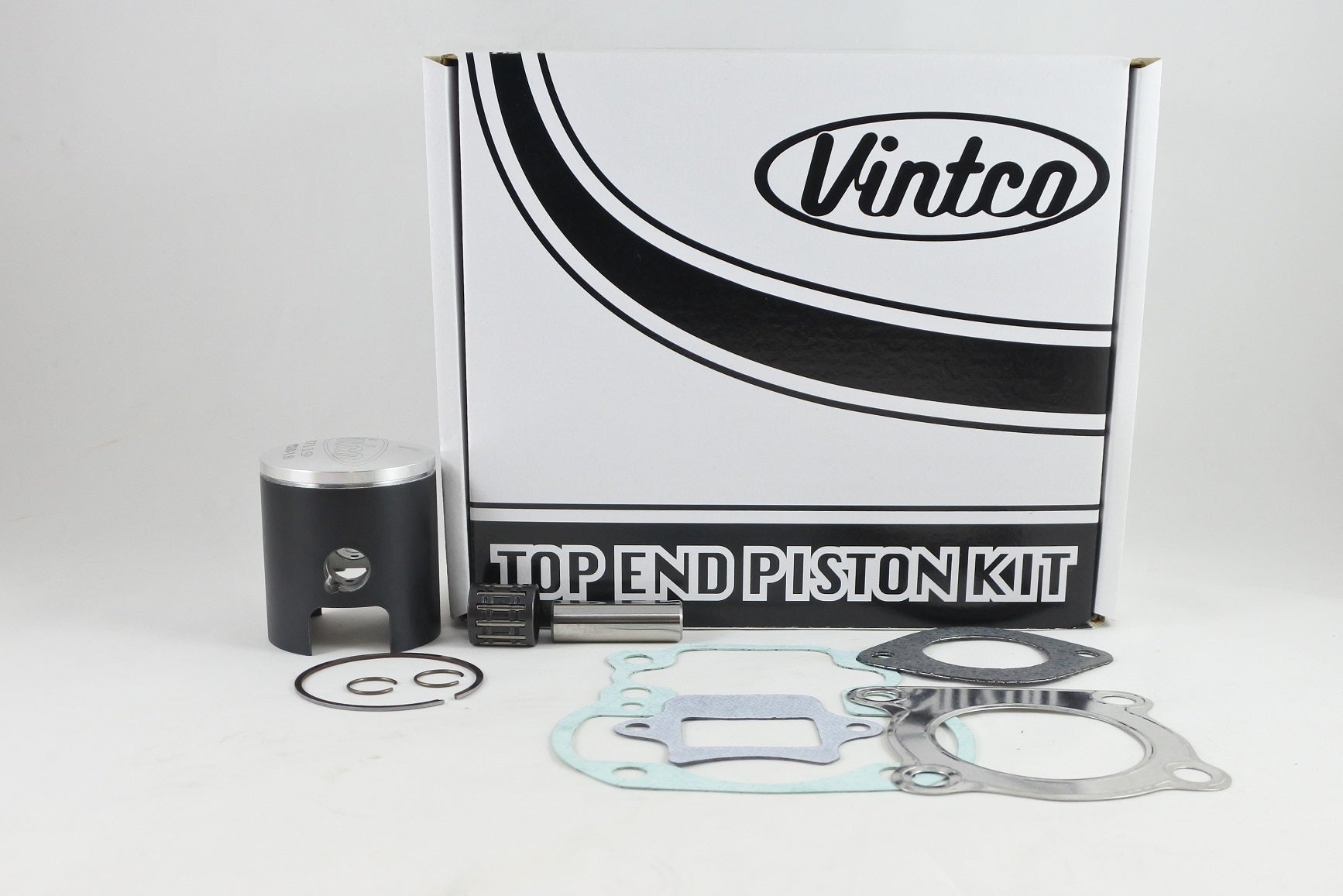

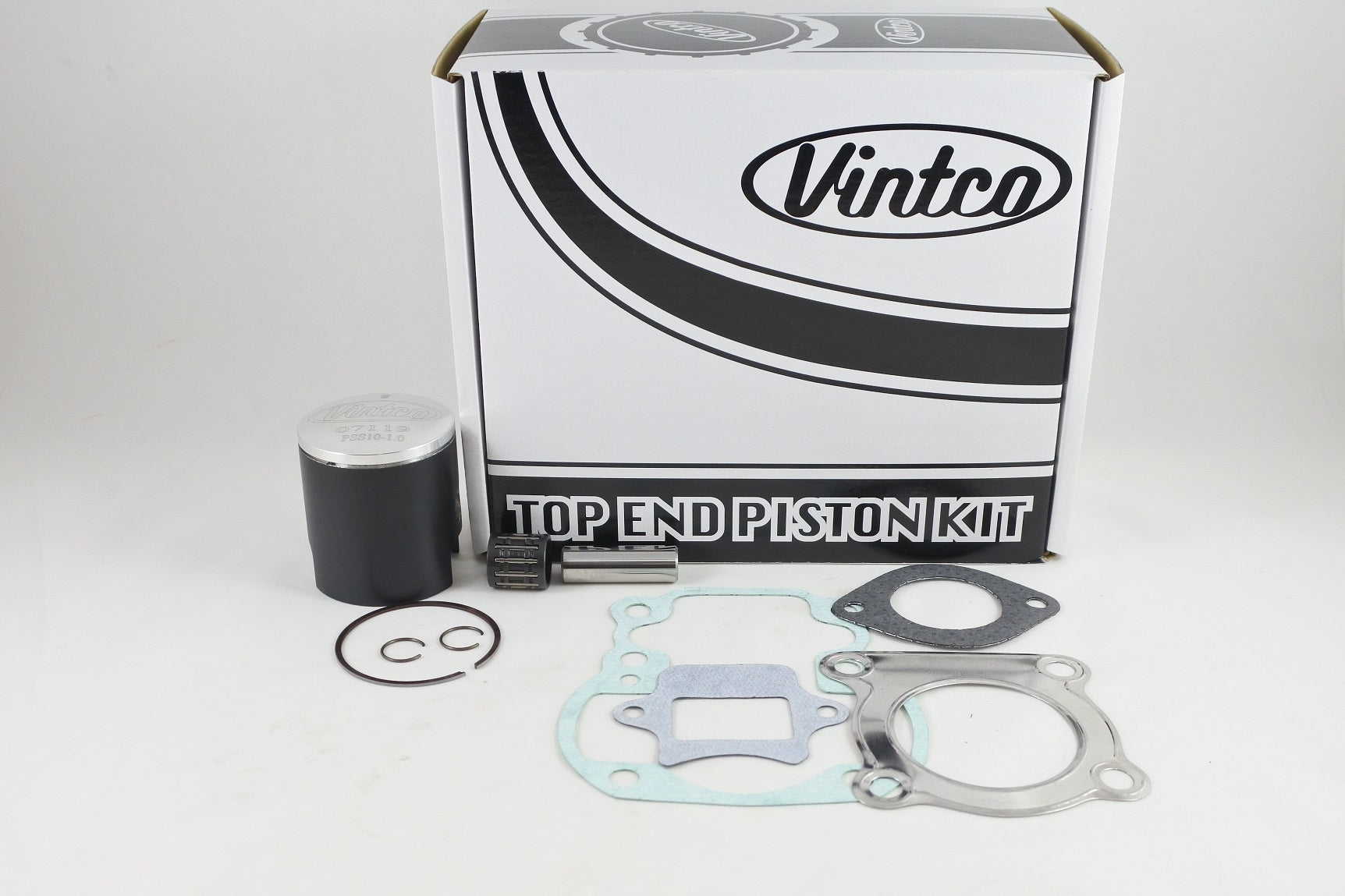

VintCo KTS12-1.0 is a top end piston kit for Suzuki RM80 models from 1978 to 1981, supplied as a complete set for top-end rebuild work. The kit includes a piston, rings, pin, clips, wrist pin bearing, and a full gasket set comprising the head, base, intake, and exhaust pipe gaskets. It is a 50.00 mm nominal, +1.0 mm oversize kit with a 49.95 mm piston and 0.05 mm clearance, manufactured to provide OEM-equivalent or better fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket, base gasket, intake gasket and exhaust pipe gasket
• Provides the main components required to complete a top-end rebuild
• Manufactured using modern materials and manufacturing techniques
• Designed for exact fitment using referenced OEM part numbers
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS12-1.0
• Product type: Top End Piston Kit
• Nominal size: 50.00 mm
• Piston size: 49.95 mm
• Oversize: +1.0 mm
• Clearance: 0.05 mm
• Piston construction: Forged
• Piston coating: German MoS2

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46900-H17
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1978 Suzuki RM80
• 1979 Suzuki RM80
• 1980 Suzuki RM80
• 1981 Suzuki RM80
