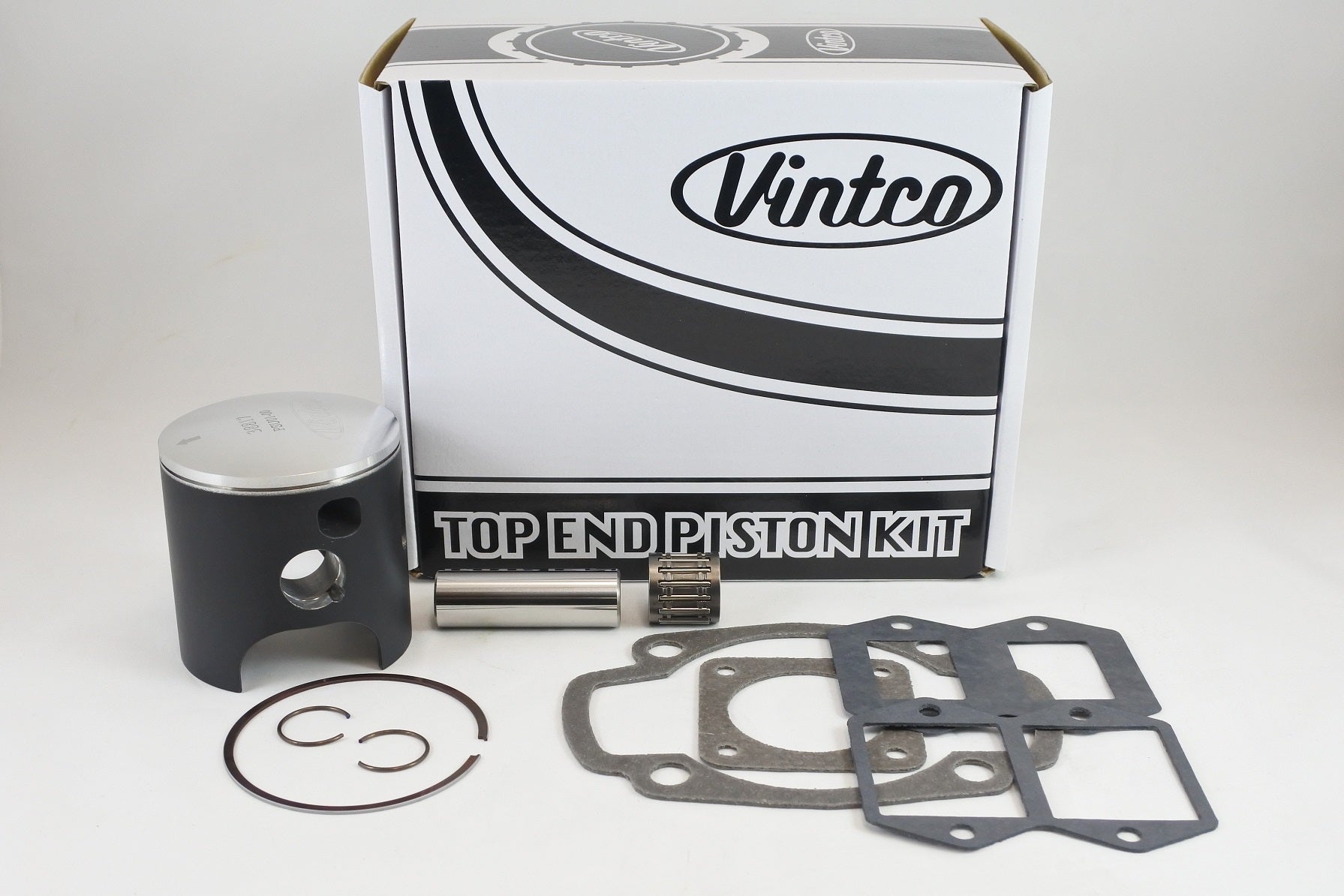

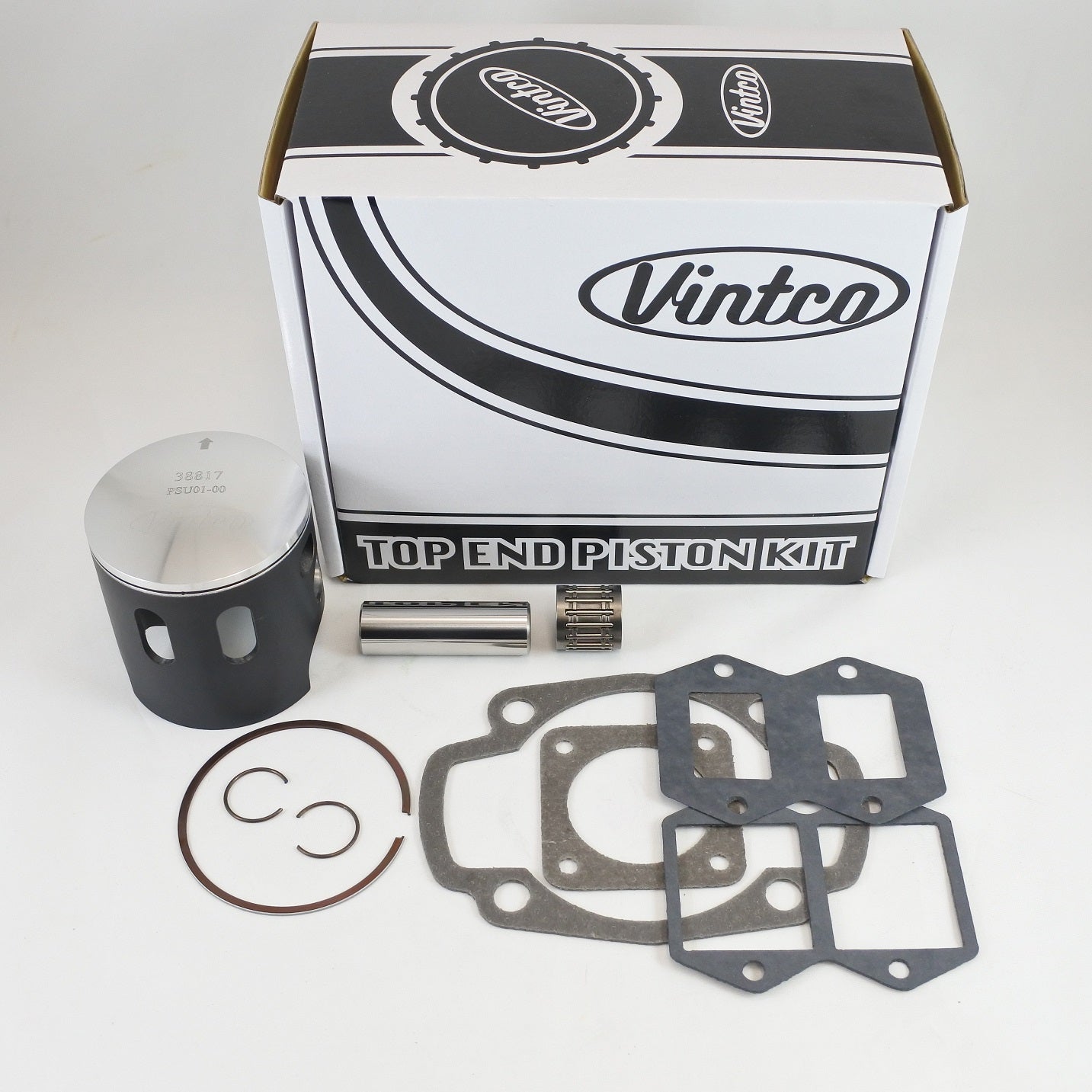

Top End Piston Kit 78-79 Husqvarna CR or WR 250 69.5mm Standard Vintco KTU02-00

This top end piston kit is a complete rebuild kit for 1978-1979 Husqvarna CR250, OR250 and WR250 models using a 69.5 mm standard bore. It includes a VintCo piston kit with piston, rings, pin and clips, along with a top end bearing and a full top-end gasket kit with base, intake and exhaust gaskets. The kit is intended for straightforward, cost-effective top-end rebuild work and is priced at approximately 10% less than purchasing the included items individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Includes base gasket, two intake gaskets and exhaust gasket
• Intended for straightforward, cost-effective rebuild work
• Produced using modern materials and manufacturing methods
• Designed for OEM-style fitment
• Alternative size options are available

Specifications

• VintCo Part Number: KTU02-00
• Bore size: 69.5 mm standard
• Piston diameter: 69.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 break-in coating
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Piston: 16 10 376-01
• Base gasket: 1 16 11 597-01
• Intake gasket: 1 16 10 362-01
• Intake gasket: 1 16 10 396-01
• Exhaust gasket: 1 16 10 912-01
• Wrist pin bearing: 16 10 933-01

Vehicle Fitments

• 1978 Husqvarna CR250
• 1978 Husqvarna OR250
• 1978 Husqvarna WR250
• 1979 Husqvarna CR250
• 1979 Husqvarna OR250
• 1979 Husqvarna WR250
