TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00
TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00

TOP END PISTON KIT 78-78 YAMAHA IT 250 70mm STANDARD VINTCO KTY43-00

£245.58 GBP
Taxes included. Shipping calculated at checkout.

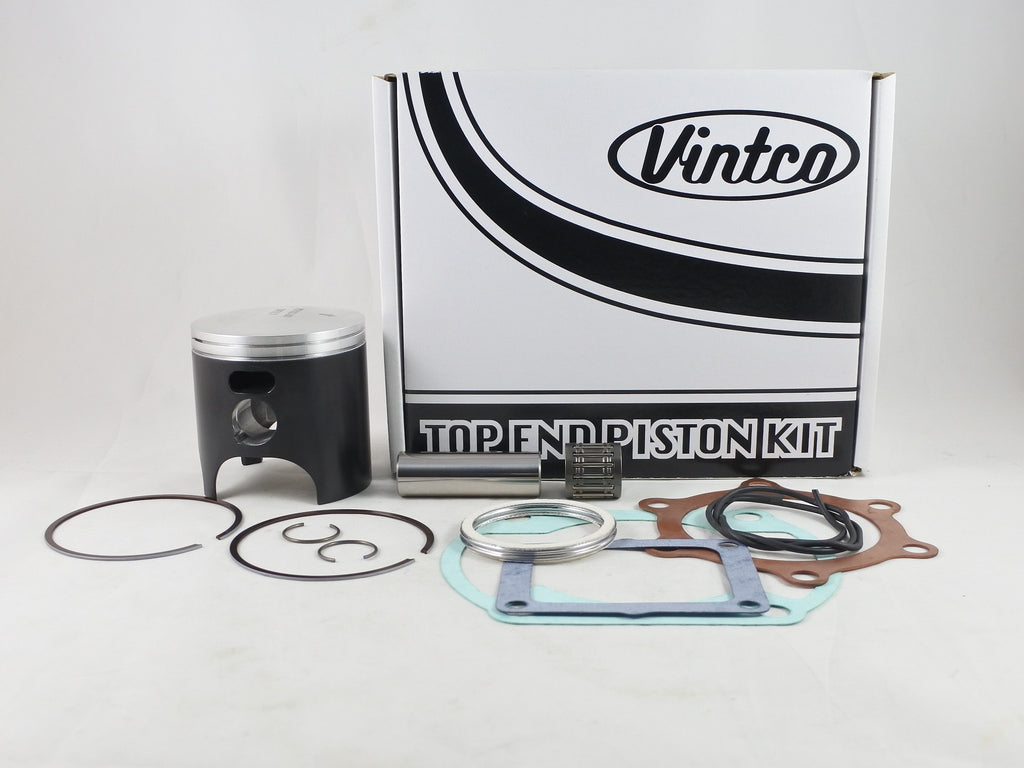

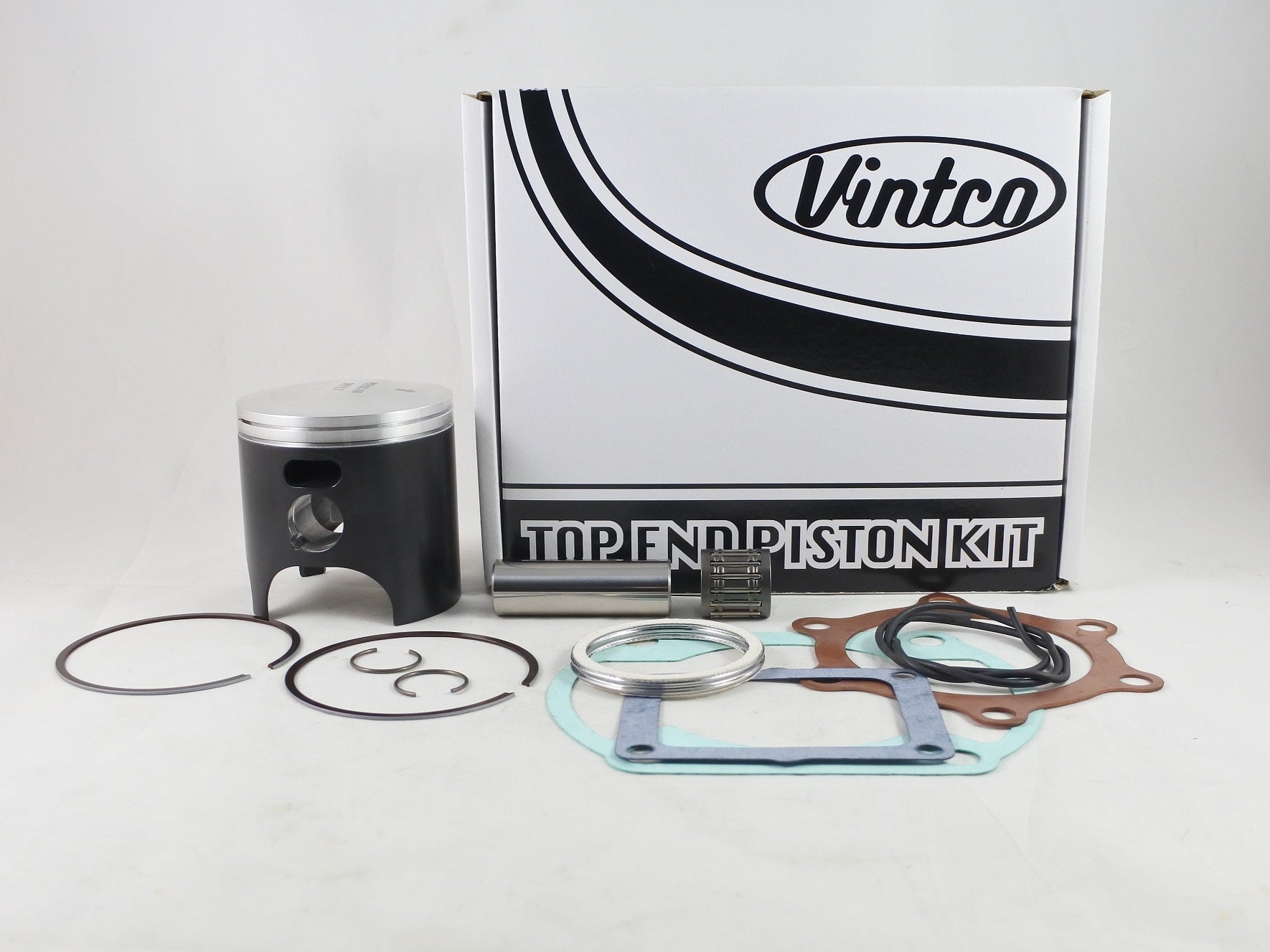

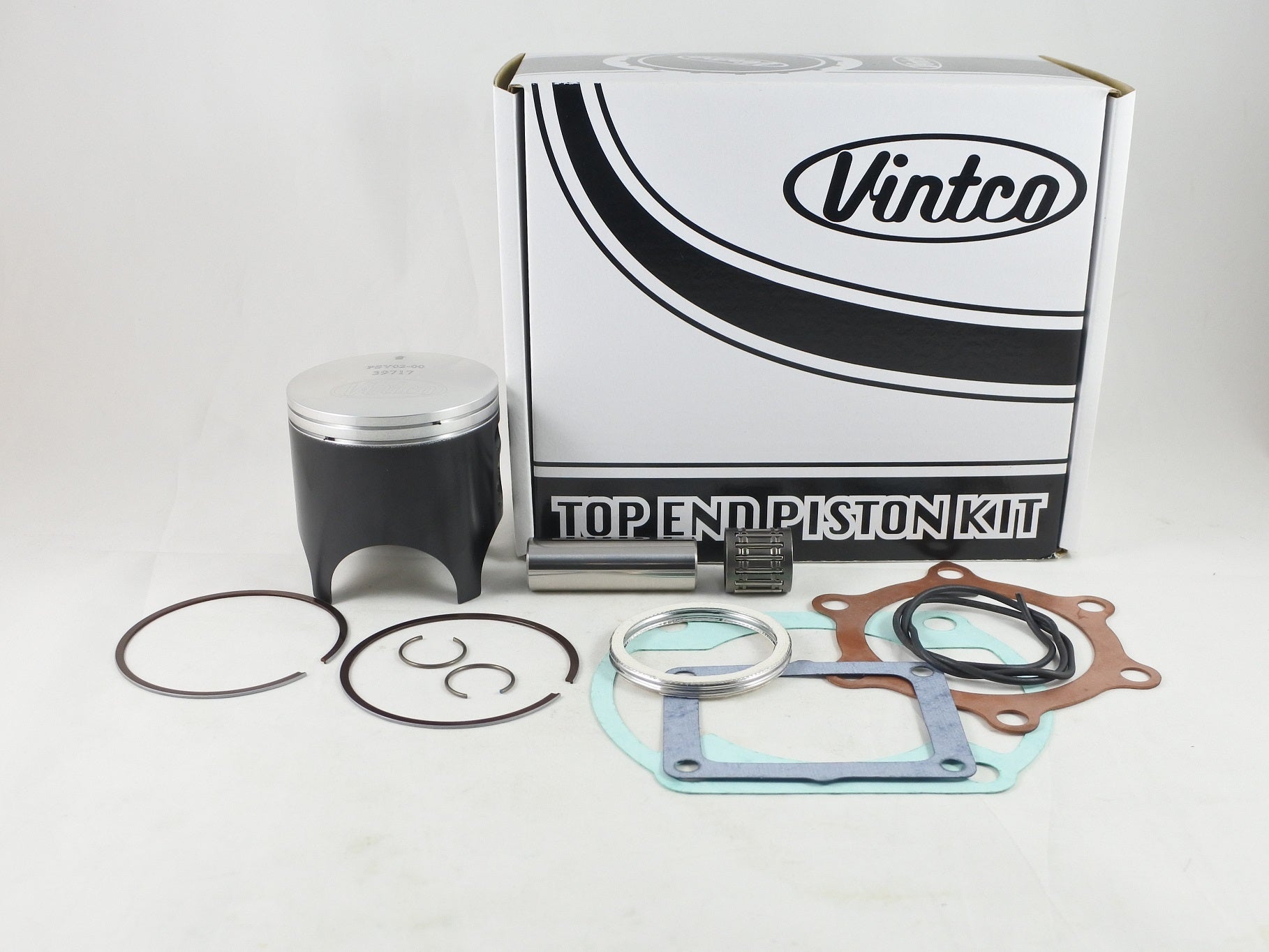

This standard 70 mm top end piston kit is intended for the 1978 Yamaha IT250 and includes a forged piston manufactured in Germany with an MOS2 coating for break-in, along with the required cylinder head, cylinder base, intake and exhaust pipe gaskets, plus a wrist pin bearing. Kit pricing is 10% lower than the combined price of the individual items.

Features

  • Complete top end rebuild kit
  • Forged piston
  • MOS2 coating for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gaskets
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY43-00
  • Piston size: 70 mm standard
  • Piston diameter: 69.94 mm
  • Clearance: 0.06 mm
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 1W3-11181-00-00
  • Cylinder base gasket: 364-11351-01-00
  • Intake gasket: 8Y7-13556-01-00
  • Exhaust pipe gasket: 214-14613-09-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1978 Yamaha IT250
