TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5
  • TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5
TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5

TOP END PISTON KIT 78-78 YAMAHA IT 250 70.5mm 0.5mm OVER VINTCO KTY43-0.5

£245.58 GBP
Taxes included. Shipping calculated at checkout.

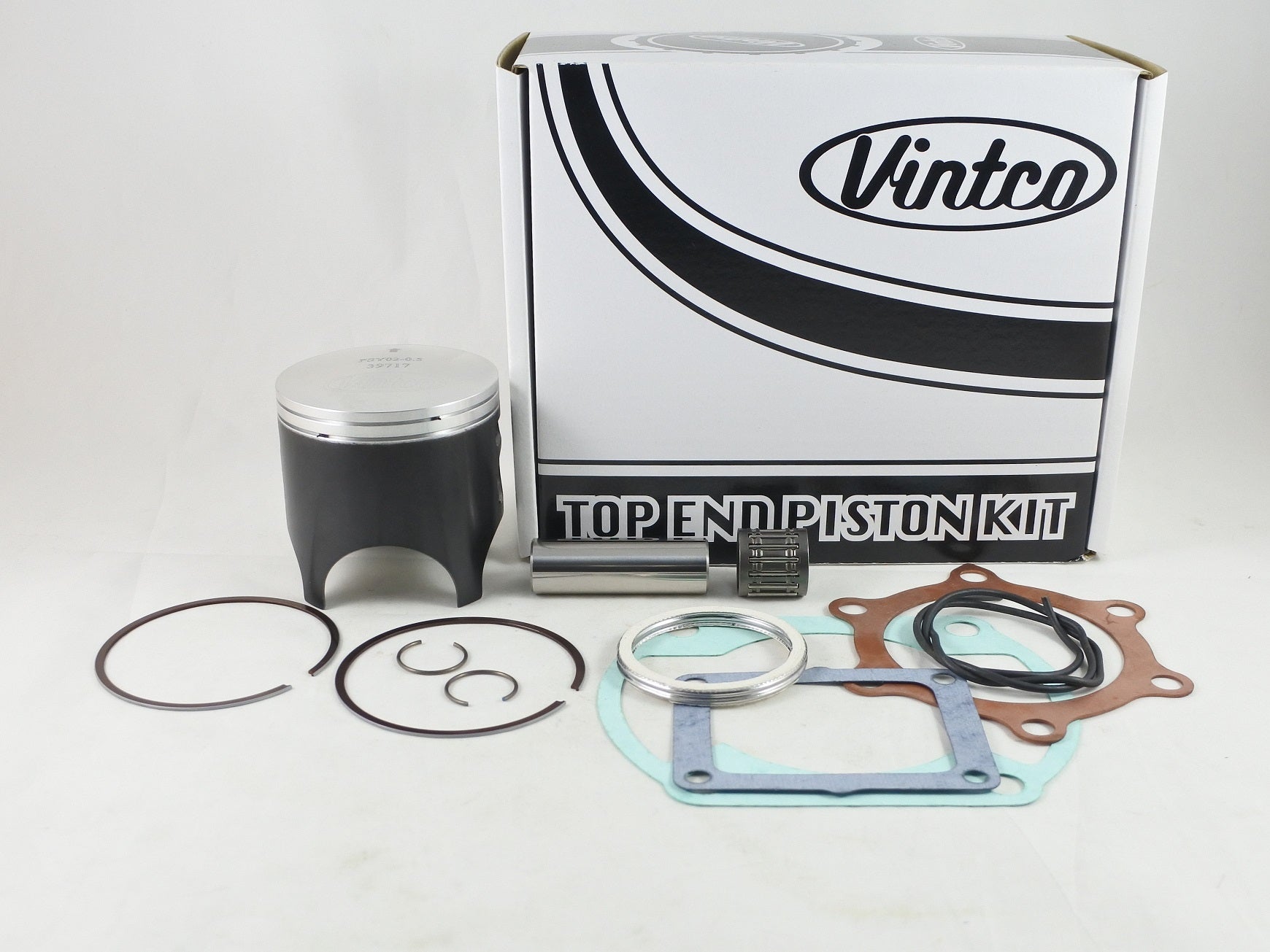

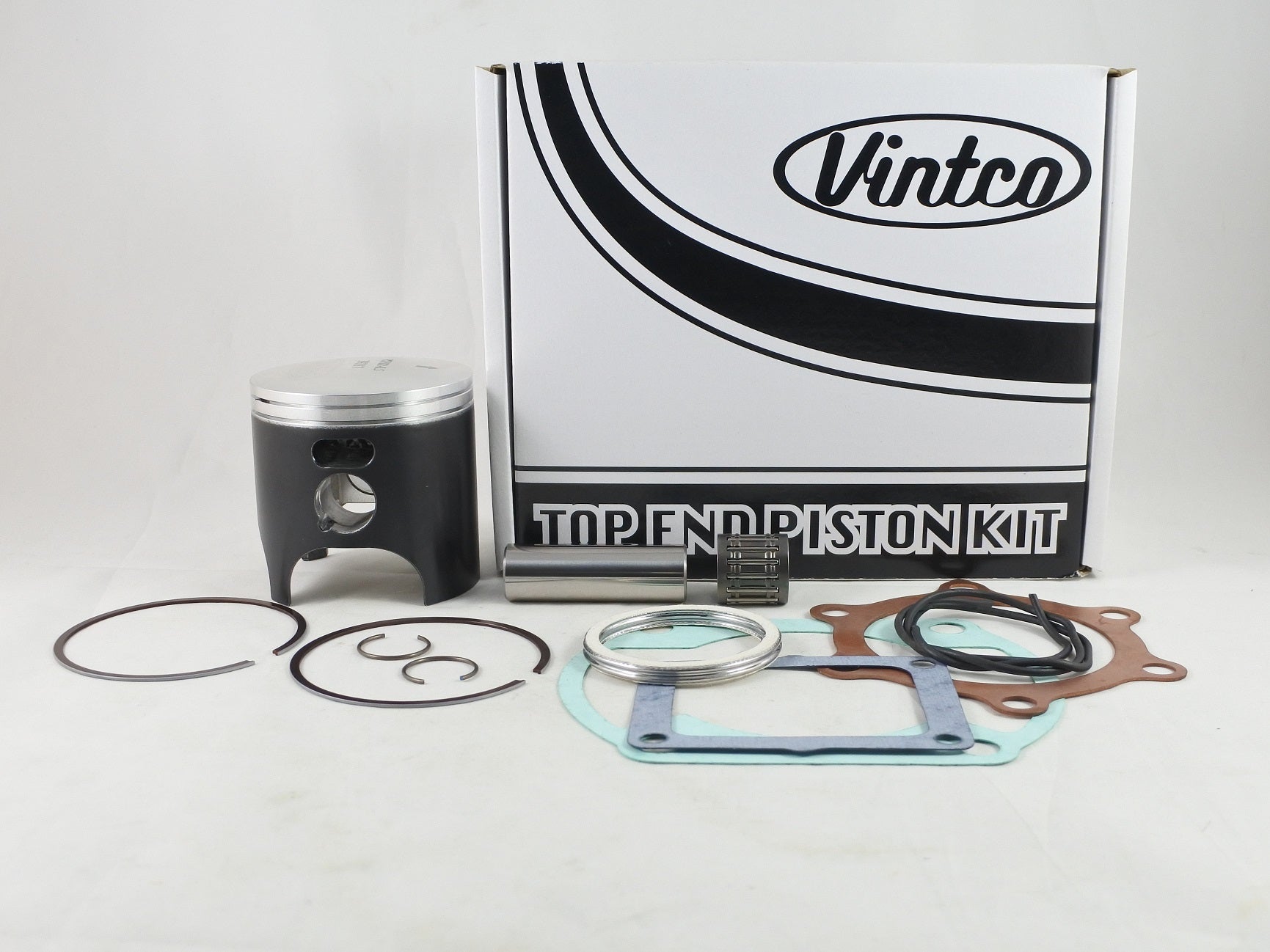

Top end piston kit for the 1978 Yamaha IT250, supplied with a 70.5 mm piston in 0.5 mm oversize. The kit includes a forged piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gaskets and a wrist pin bearing, with kit pricing set at 10% less than the total of the individual items.

Features

  • Complete top end piston kit for engine rebuild work
  • Includes piston, gaskets and wrist pin bearing
  • MOS2-coated piston finish to assist break-in
  • Kit price includes a 10% discount over individual items

Specifications

  • VintCo Part Number: KTY43-0.5
  • Piston size: 70.5 mm
  • Oversize: 0.5 mm over
  • Piston measurement: 70.44 mm
  • Clearance: 0.06 mm
  • Forged piston
  • Made in Germany

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 1W3-11181-00-00
  • Cylinder Base Gasket: 364-11351-01-00
  • Intake Gasket: 8Y7-13556-01-00
  • Exhaust Pipe Gasket: 214-14613-09-00
  • Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

  • 1978 Yamaha IT250
