TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5
  • TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5
  • TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5
  • TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5
  • TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5
TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5

TOP END PISTON KIT 77-81 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY71-1.5

£166.20 GBP
Taxes included. Shipping calculated at checkout.

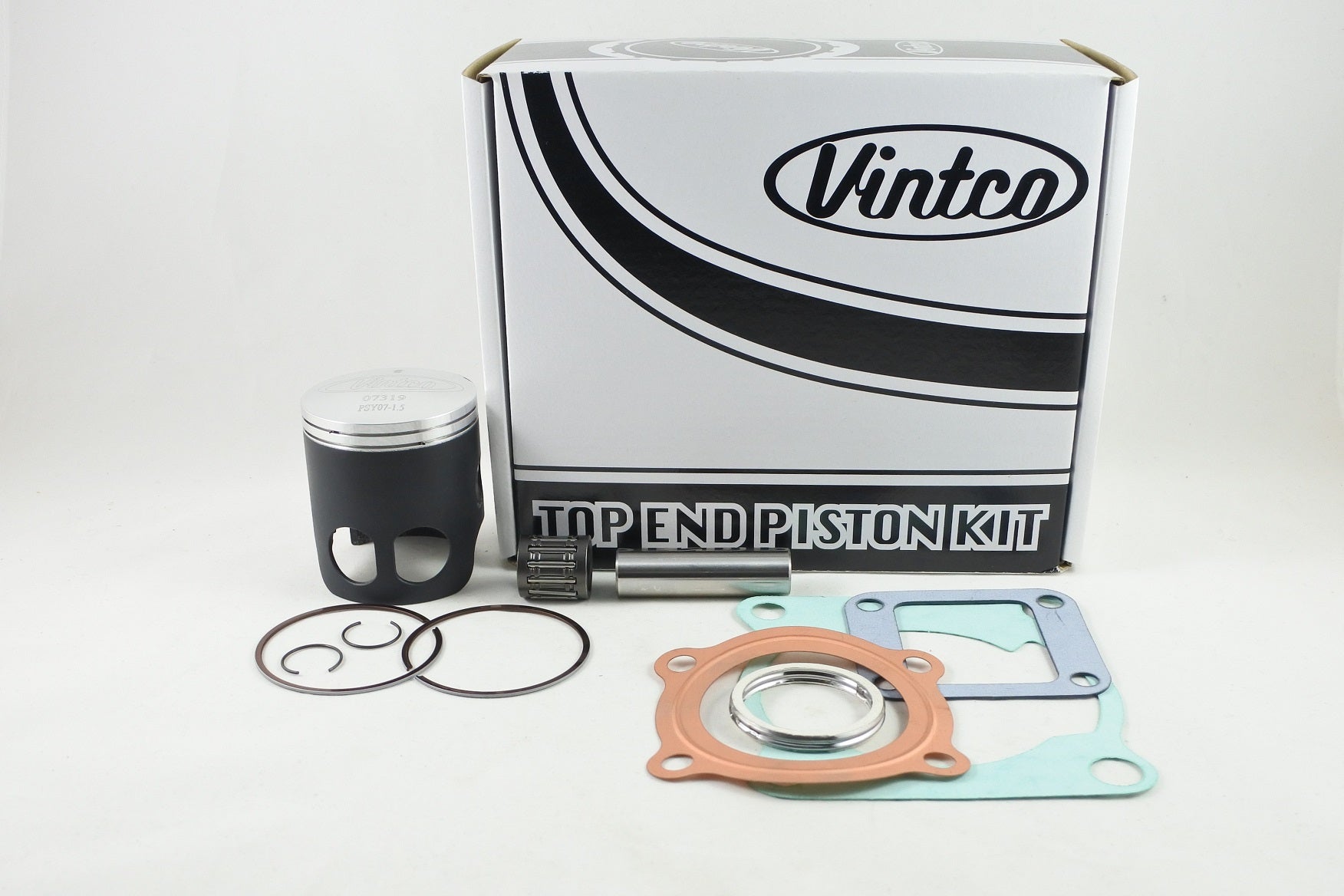

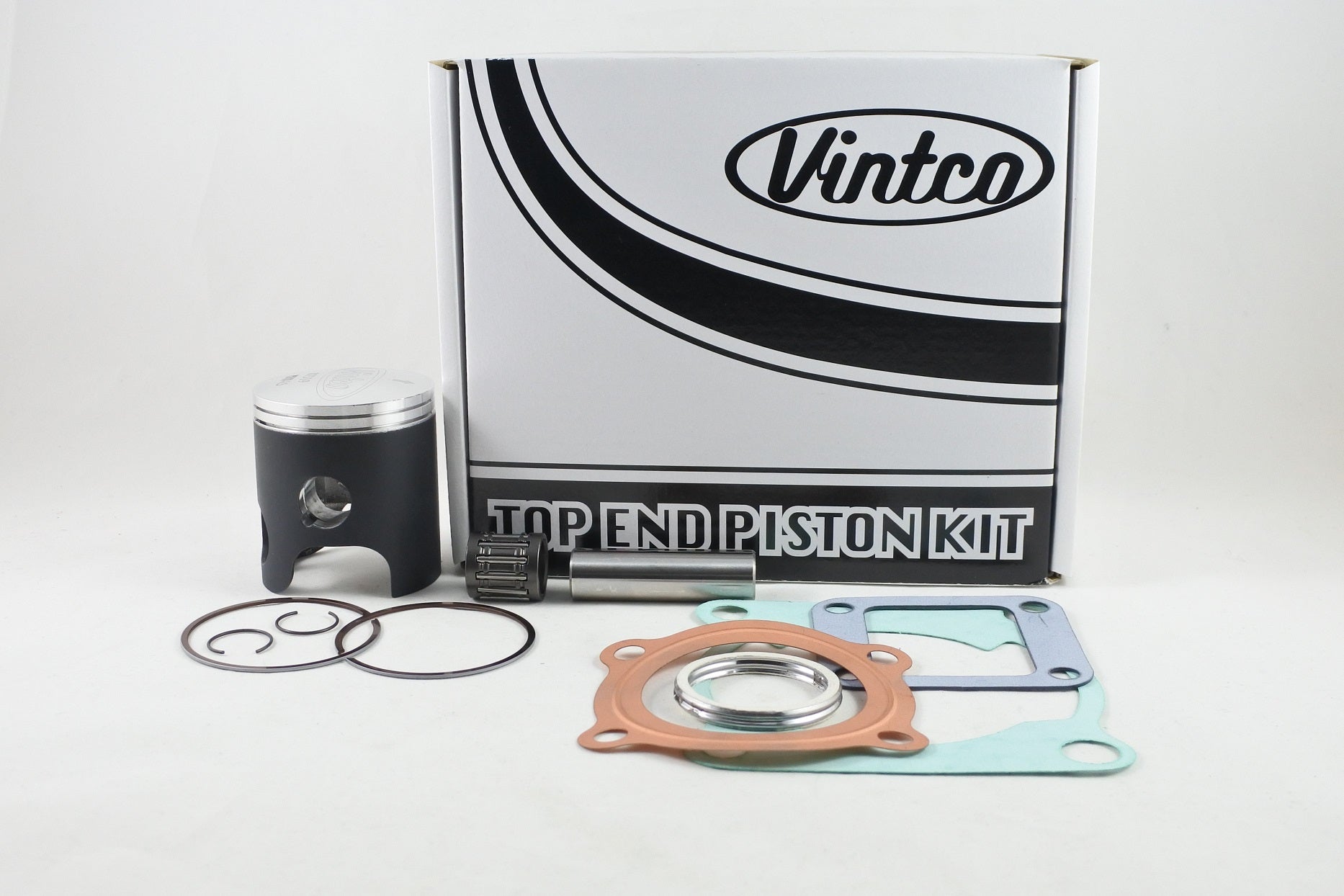

This top end piston kit is for 1977-1981 Yamaha DT125 models and includes a forged piston with MOS2 coating for running-in, along with the related top end gaskets and a wrist pin bearing. Kit pricing reflects a 10% reduction compared with the individual items.

Features

  • Complete top end kit for top end service work
  • Forged piston
  • MOS2-coated piston for running-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes reed valve gasket
  • Includes exhaust pipe gasket
  • Includes wrist pin bearing
  • Made in Germany

Specifications

  • VintCo Part Number: KTY71-1.5
  • Product Type: Top End Piston Kit
  • Oversize: 1.5 mm
  • Listed size: 57.5 mm
  • Piston size: 57.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 2A6-11181-00-00
  • Cylinder Base Gasket: 18G-11351-02-00
  • Reed Valve Gasket: 87A-13621-00-00
  • Exhaust Pipe Gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1977 Yamaha DT125
  • 1978 Yamaha DT125
  • 1979 Yamaha DT125
  • 1980 Yamaha DT125
  • 1981 Yamaha DT125
