Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0
  • Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0
  • Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0
  • Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0
  • Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0
Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0

Top End Piston Kit 77-79 Yamaha It 175 67mm 1.0mm Over Vintco KTY27-1.0

£189.81 GBP
Taxes included. Shipping calculated at checkout.

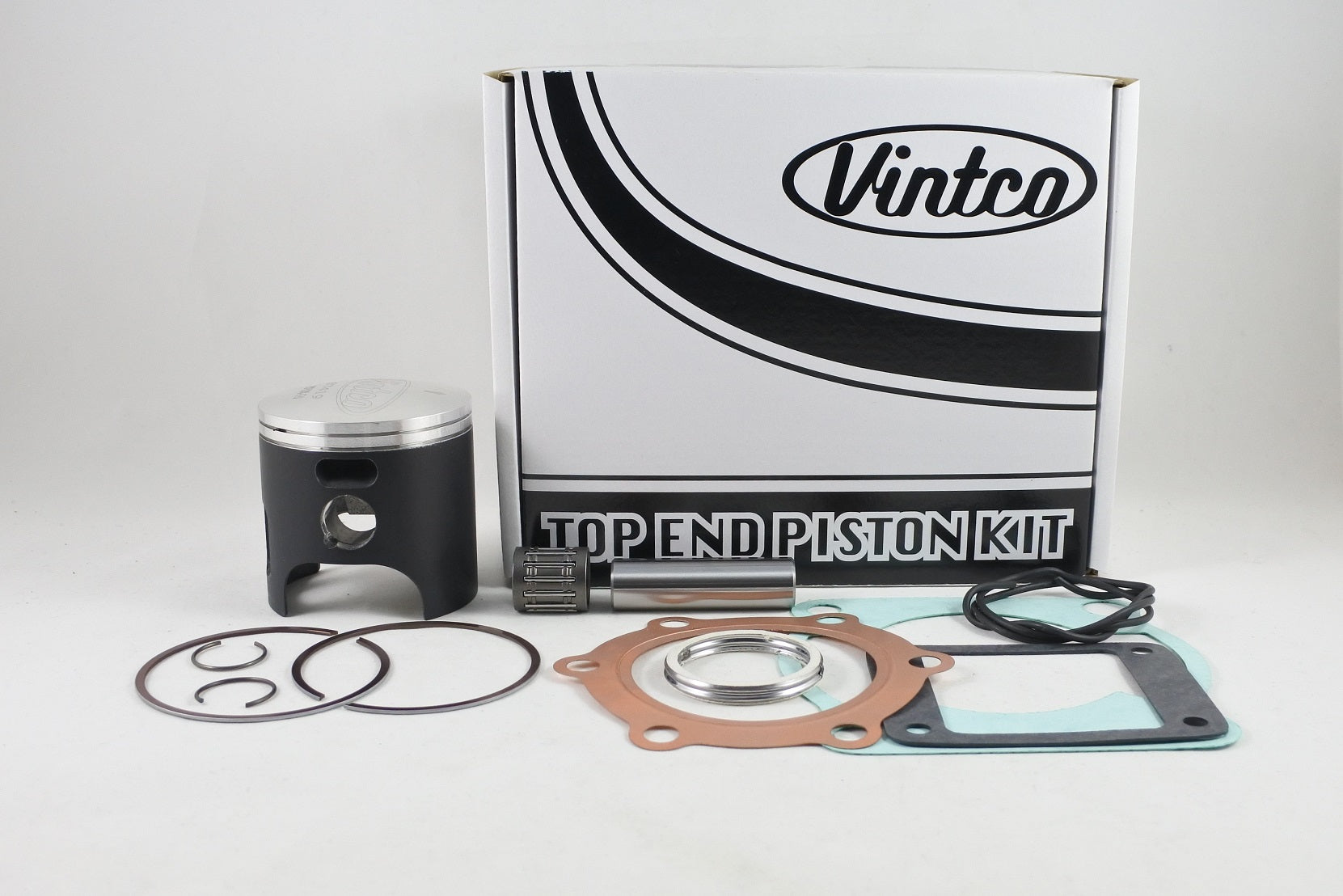

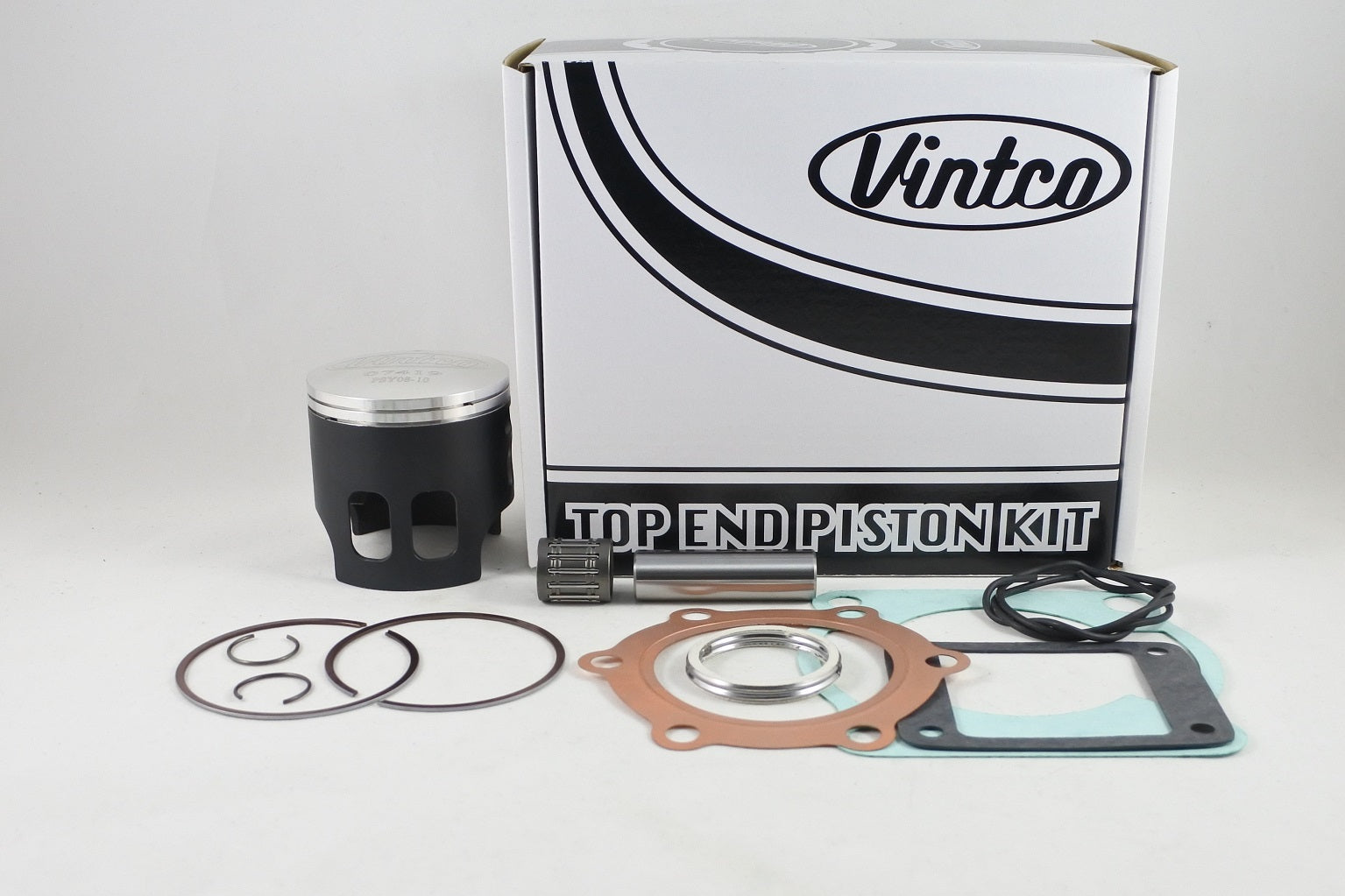

This VintCo top end piston kit is designed for 1977-1979 Yamaha IT175 models and provides the principal components required for a top end rebuild, including a forged piston, head gasket, base gasket, intake gasket, two exhaust pipe gaskets and a wrist pin bearing. Kit pricing includes a 10% reduction compared with purchasing the listed items individually.

Features

  • Complete top end kit for Yamaha IT175 applications
  • Includes forged piston
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes two exhaust pipe gaskets
  • Includes wrist pin bearing
  • Piston coating supports running-in

Specifications

  • VintCo Part Number: KTY27-1.0
  • Product type: Top End Piston Kit
  • Piston diameter: 67 mm
  • Oversize: 1.0 mm
  • Piston size: 66.94
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Piston coating: MOS2
  • Country of manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 1W2-11181-00-00
  • Base gasket: 3TN-11351-00-00
  • Intake gasket: 3TT-13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1977 Yamaha IT175
  • 1978 Yamaha IT175
  • 1979 Yamaha IT175
