TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5
TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5

TOP END PISTON KIT 77-79 YAMAHA IT 175 67.5mm 1.5mm OVER VINTCO KTY27-1.5

£189.81 GBP
Taxes included. Shipping calculated at checkout.

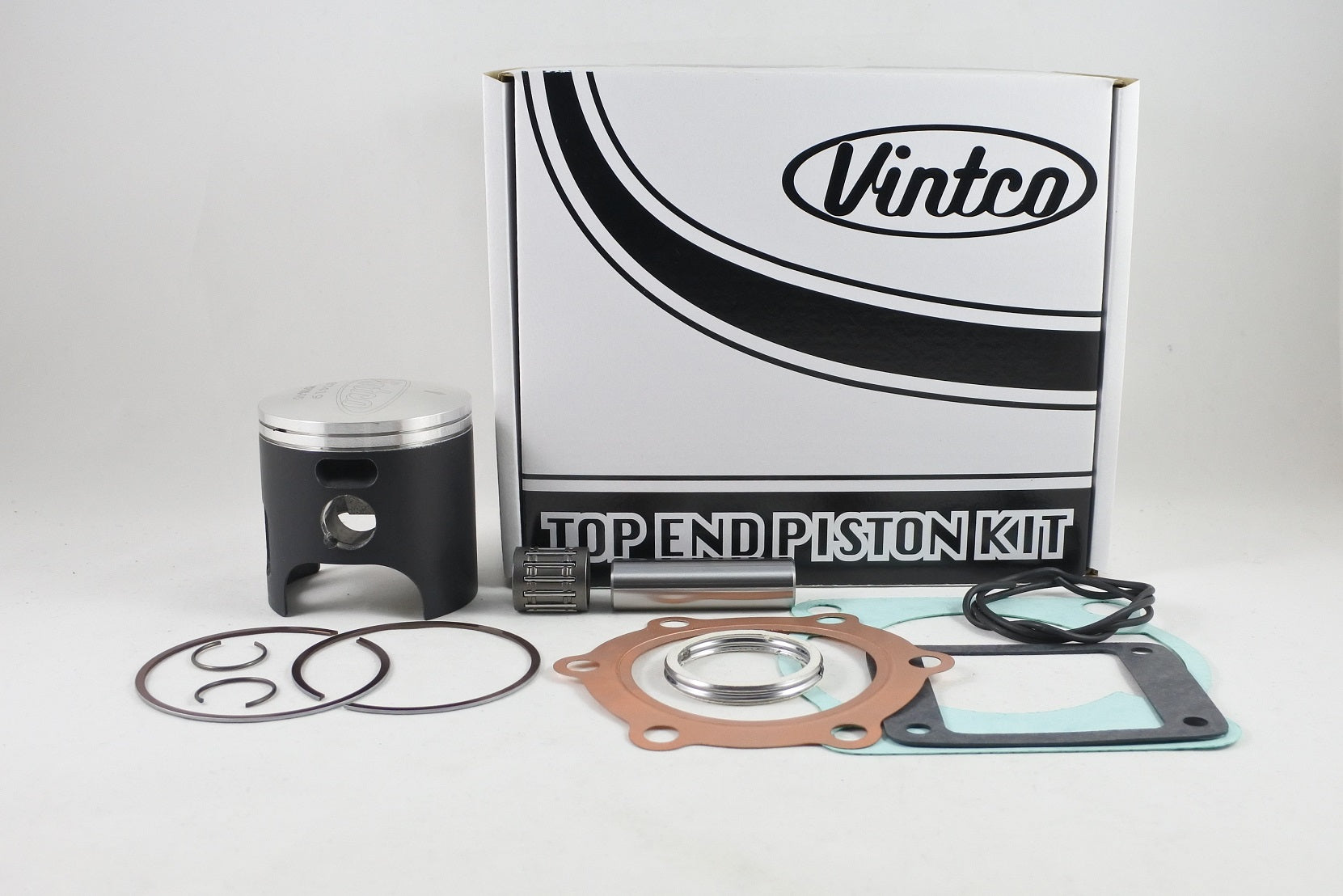

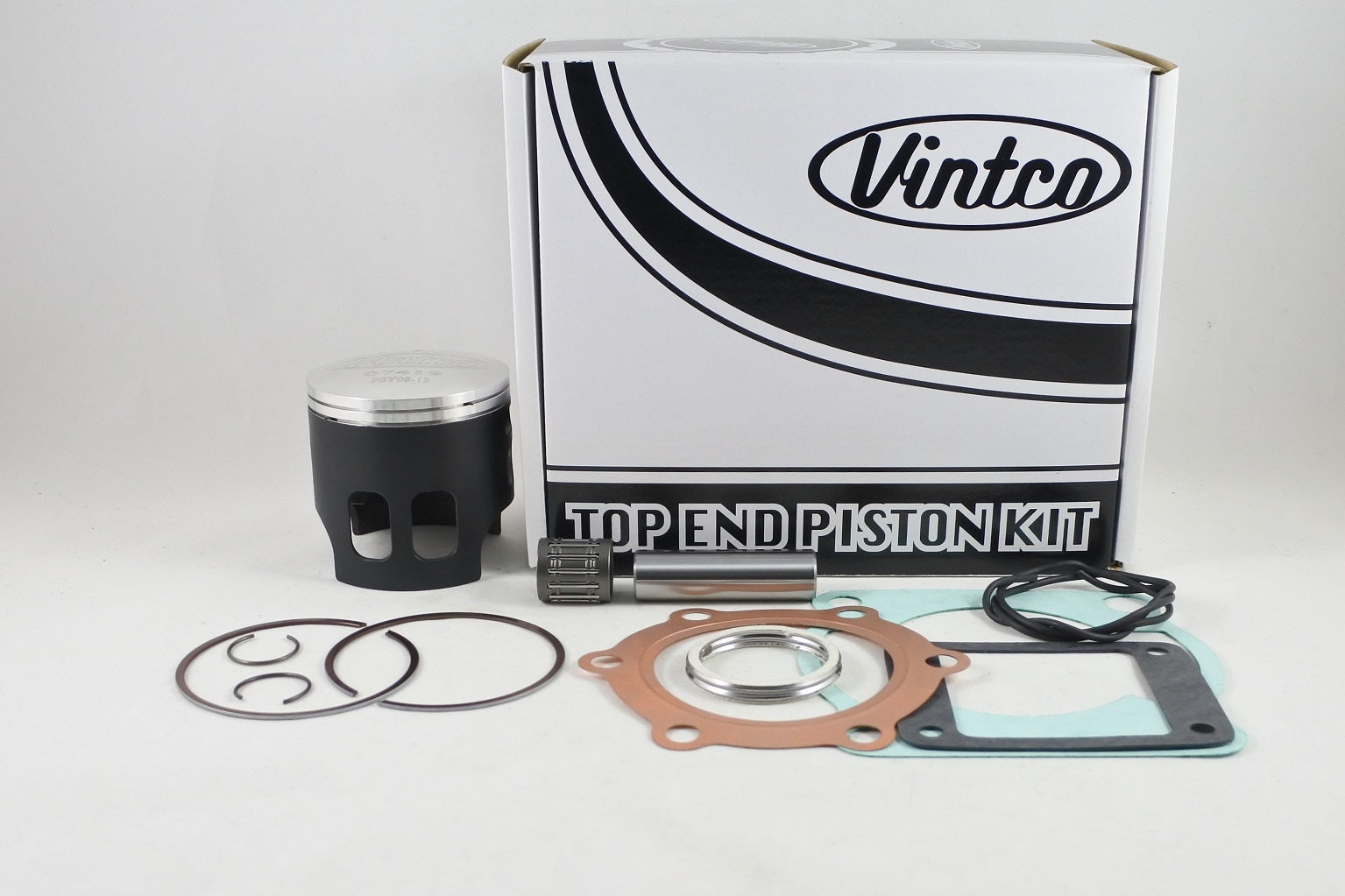

This top end piston kit is for 1977-1979 Yamaha IT175 models and is supplied for top-end service with a forged piston, gasket set and wrist pin bearing. The kit is specified at 67.5 mm and 1.5 mm oversize, with kit pricing set at 10% less than the combined price of the individual components.

Features

  • Complete top end kit
  • Includes piston
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gasket
  • Includes second exhaust pipe gasket
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY27-1.5
  • Piston diameter: 67.5 mm
  • Oversize: 1.5 mm
  • Piston size: 67.44 mm
  • Clearance: 0.06 mm
  • Forged piston
  • MOS2-coated piston for break-in
  • Manufactured in Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 1W2-11181-00-00
  • Base gasket: 3TN-11351-00-00
  • Intake gasket: 3TT-13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1977 Yamaha IT175
  • 1978 Yamaha IT175
  • 1979 Yamaha IT175
