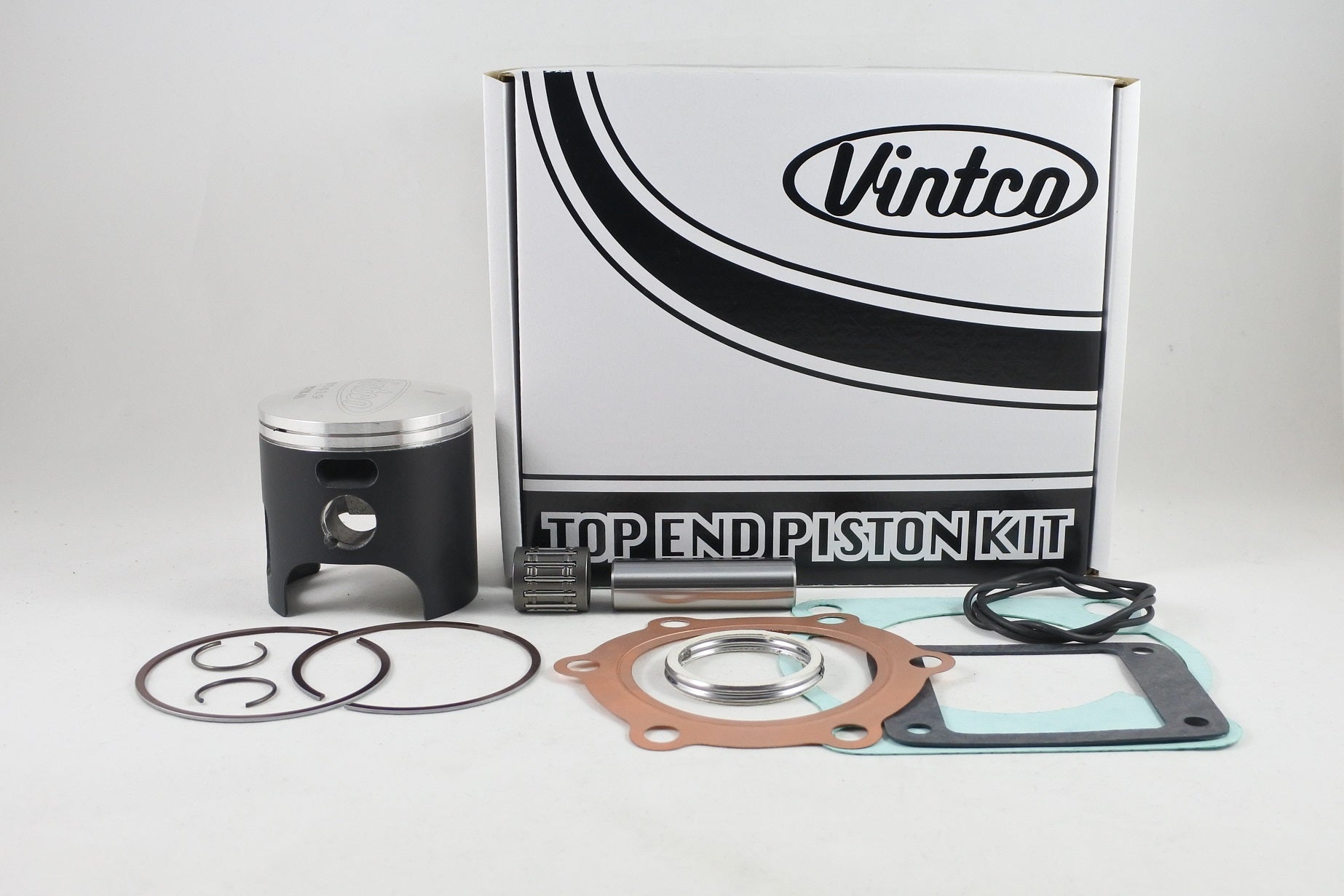

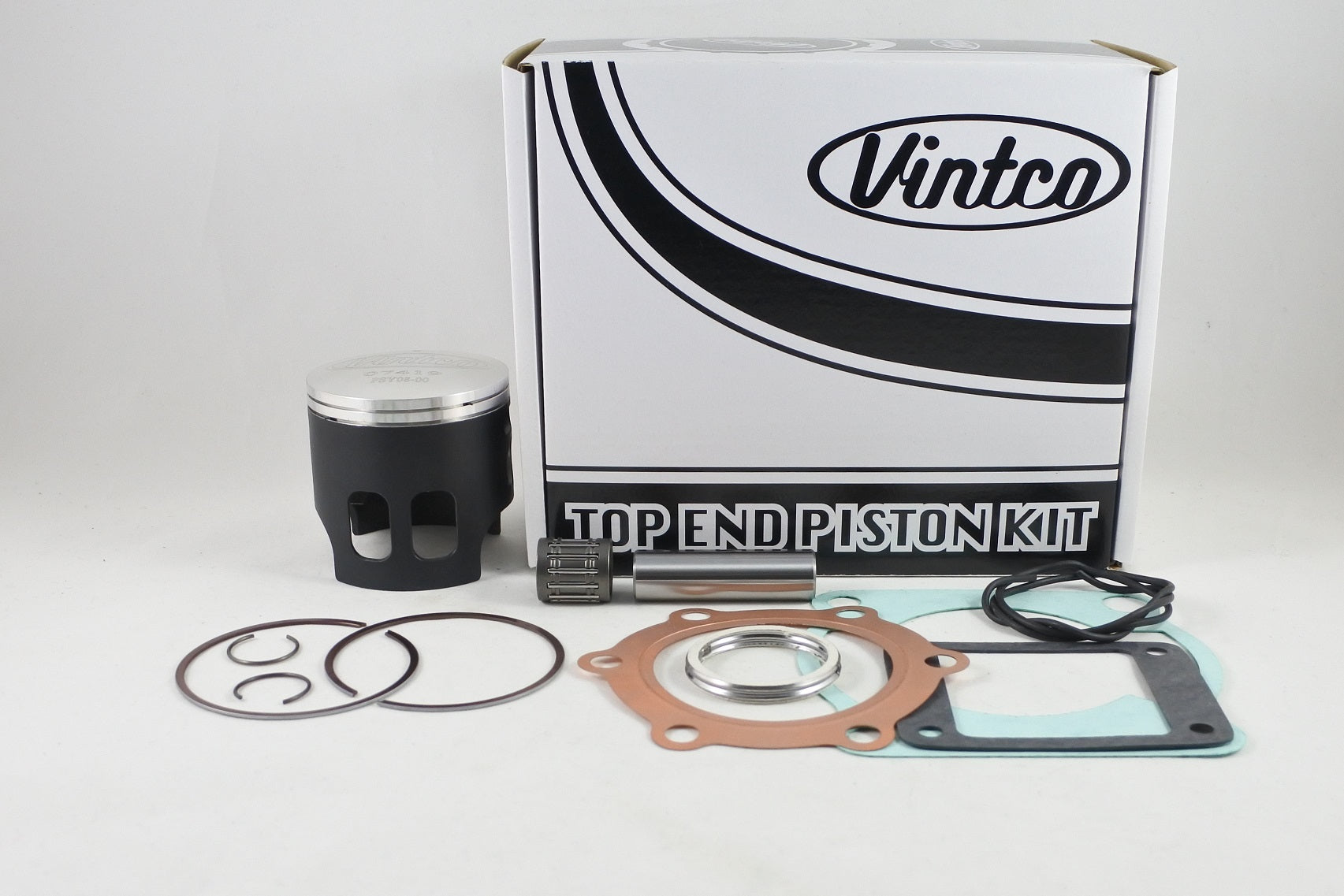

Top End Piston Kit 77-79 Yamaha It 175 66mm Standard Vintco KTY27-00
£189.81 GBP
Taxes included.
Shipping calculated at checkout.
This top end piston kit is for 1977-1979 Yamaha IT175 models and is supplied as a standard-size rebuild set with piston, gaskets and wrist pin bearing. Kit pricing reflects a 10% reduction compared with purchasing the included items individually.
Features
- Complete top end kit for standard-size piston replacement
- Includes piston
- Includes head gasket
- Includes base gasket
- Includes intake gasket
- Includes exhaust pipe gasket
- Includes exhaust pipe gasket
- Includes wrist pin bearing
Specifications
- VintCo Part Number: KTY27-00
- Piston diameter: 66mm standard
- Piston size: 65.94mm
- Piston clearance: 0.06mm
- Piston construction: forged
- Piston coating: MOS2
- Country of manufacture: Germany
Cross-Reference OEM Part Numbers
- Head gasket: 1W2-11181-00-00
- Base gasket: 3TN-11351-00-00
- Intake gasket: 3TT-13621-00-00
- Exhaust pipe gasket: 3PA-14613-10-00
- Exhaust pipe gasket: 248-14623-10-00
Vehicle Fitments
- 1977 Yamaha IT175
- 1978 Yamaha IT175
- 1979 Yamaha IT175
