TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5
  • TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5
TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5

TOP END PISTON KIT 77-79 YAMAHA IT 175 66.5mm 0.5mm OVER VINTCO KTY27-0.5

£189.81 GBP
Taxes included. Shipping calculated at checkout.

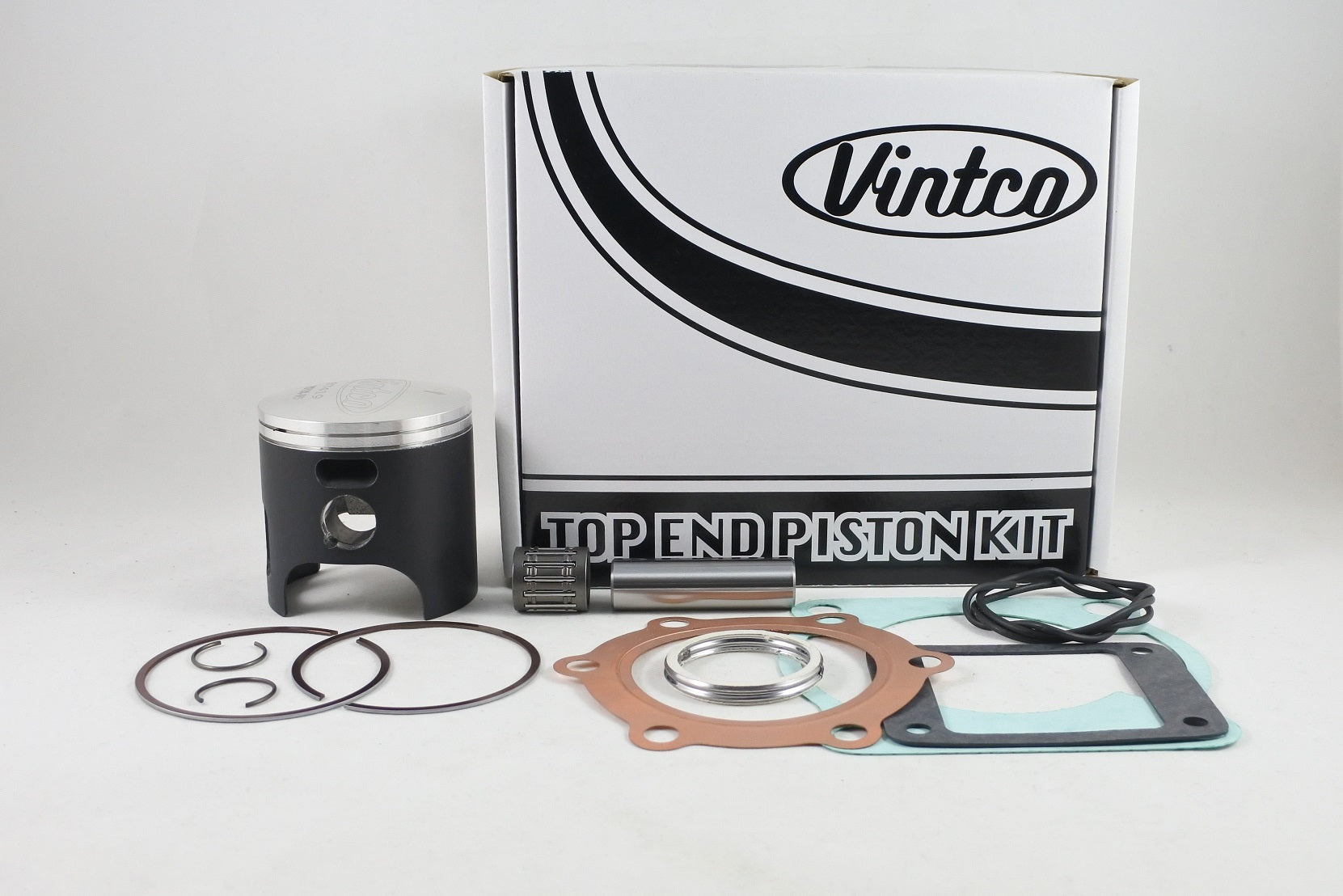

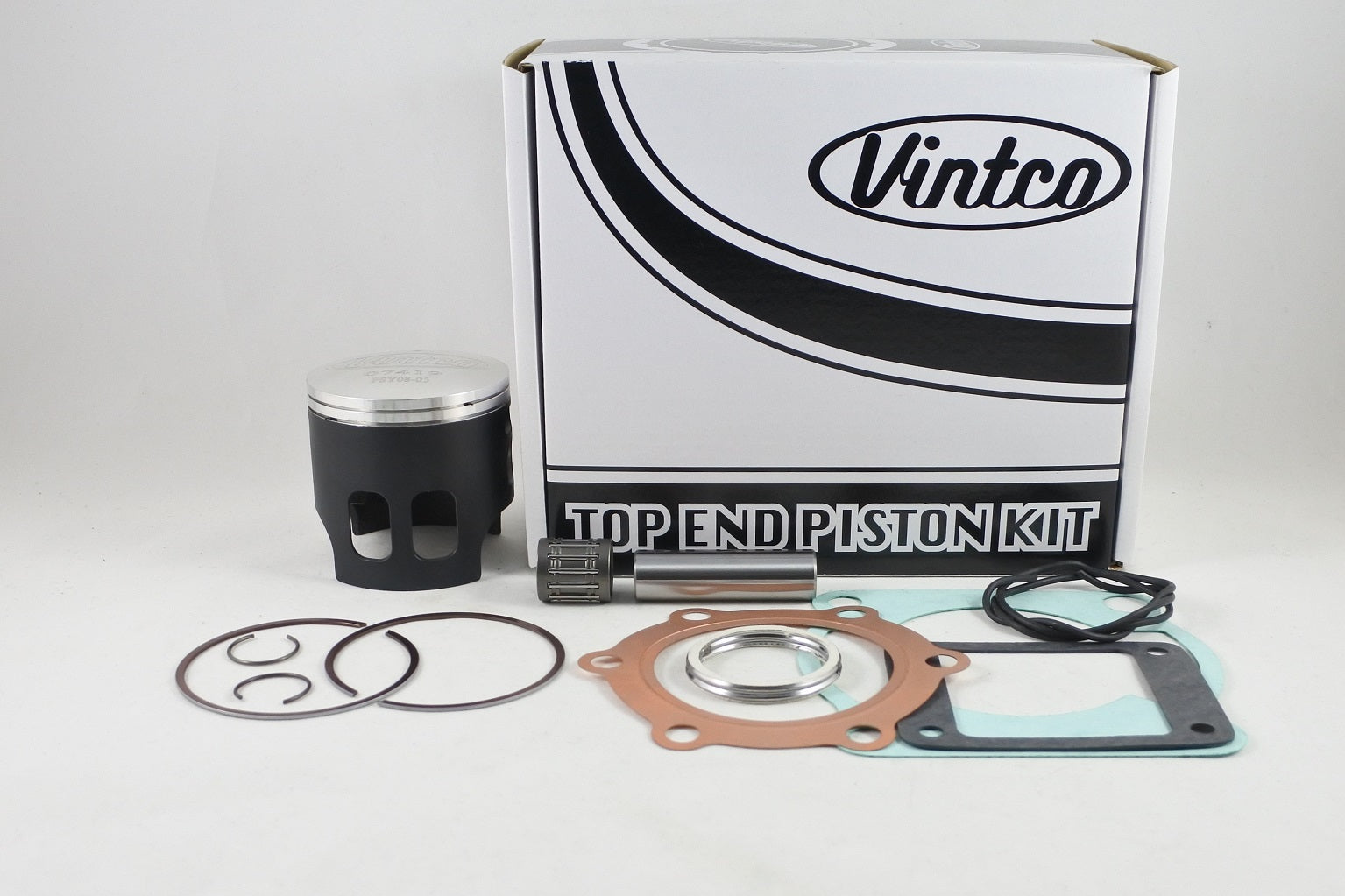

VintCo top end piston kit for 1977-1979 Yamaha IT175 models, supplied for top end rebuild work with a forged piston made in Germany, MOS2 coating for break-in, the required gaskets, and a wrist pin bearing. This kit is priced at a 10% discount compared with the individual items and is specified as a 66.5 mm, 0.5 mm oversize assembly.

Features

  • Complete top end piston kit
  • Includes forged piston made in Germany
  • MOS2 coated for break-in
  • Includes head gasket
  • Includes base gasket
  • Includes intake gasket
  • Includes exhaust pipe gaskets
  • Includes wrist pin bearing
  • Kit price includes a 10% discount over individual items

Specifications

  • VintCo Part Number: KTY27-0.5
  • Item Category: Top End Piston Kits
  • Size: 66.5 mm
  • Oversize: 0.5 mm
  • Piston measurement: 66.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 1W2-11181-00-00
  • Base gasket: 3TN-11351-00-00
  • Intake gasket: 3TT-13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1977 Yamaha IT175
  • 1978 Yamaha IT175
  • 1979 Yamaha IT175
