Top End Piston Kit 77-79 Suzuki RM Pe 250 67.0mm Standard Vintco KTS03-00

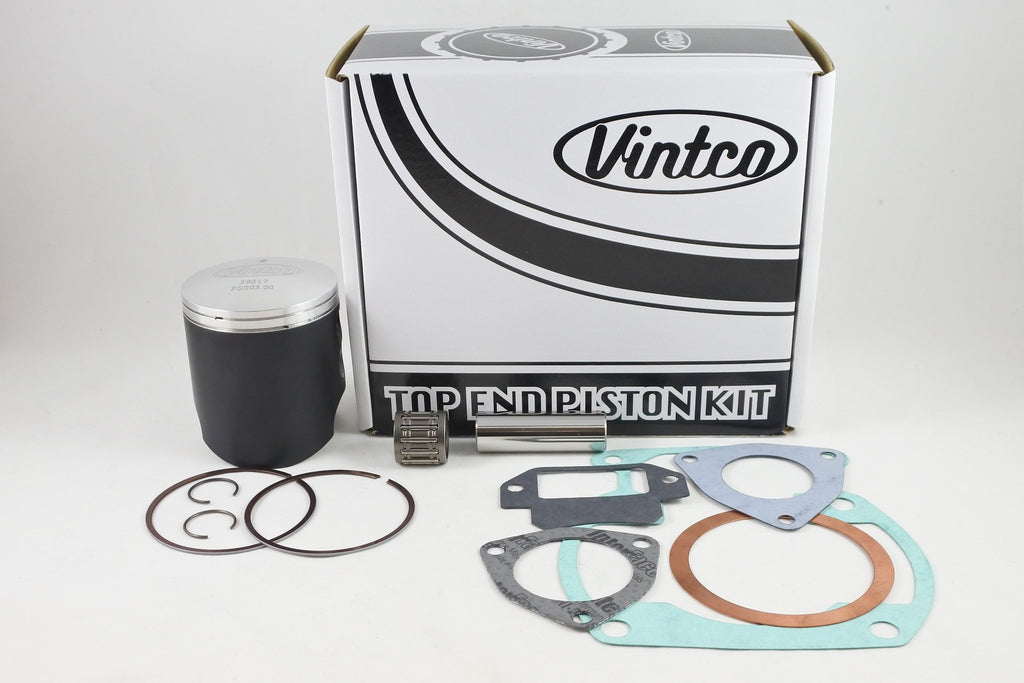

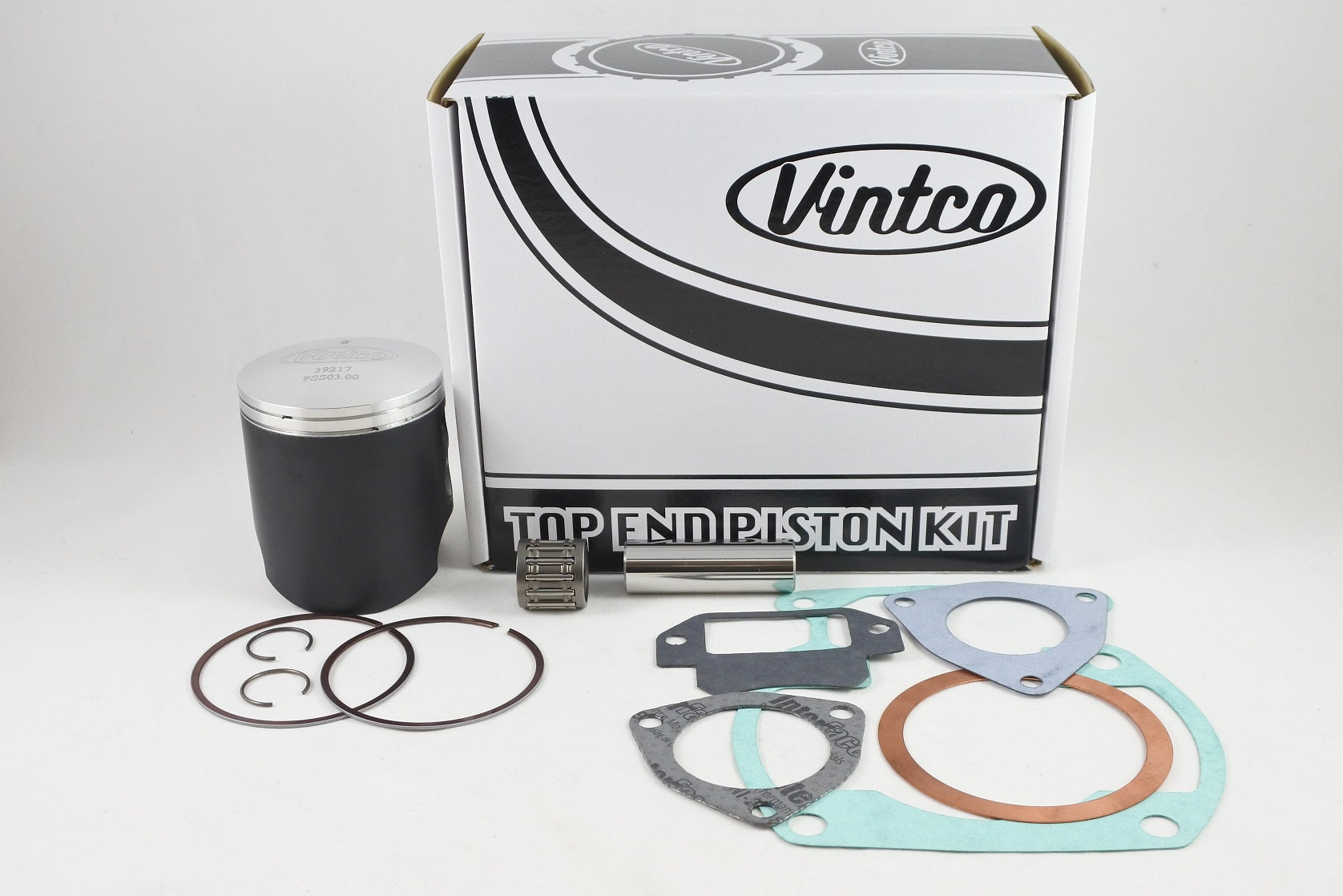

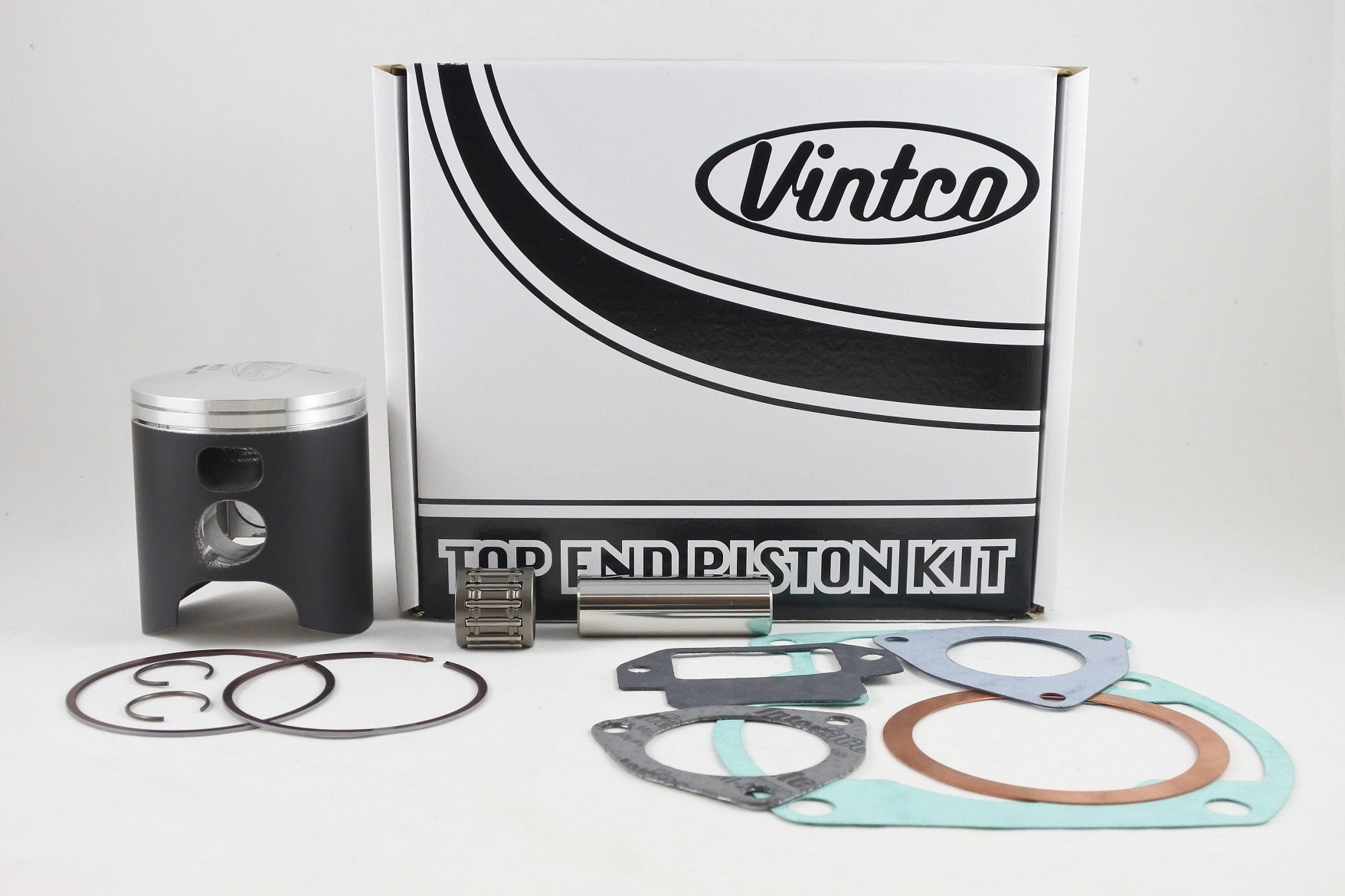

VintCo KTS03-00 is a complete top end piston kit for Suzuki RM250 and PE250 models, supplied in a 67.0 mm standard bore for the listed 1977-1979 applications. The kit includes a forged piston with rings, wrist pin and circlips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust, providing the components required for a top-end rebuild with OEM cross-reference support for fitment verification.

Features

• Complete top end rebuild kit for specified Suzuki RM250 and PE250 models
• Includes piston, rings, wrist pin and circlips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket kit includes head gasket, base gasket, intake gaskets and exhaust gasket
• Designed to simplify top-end rebuild work
• Manufactured using modern materials and production methods
• Intended to provide OEM-equivalent or better fitment and performance
• Kit price is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS03-00
• Product type: Top End Piston Kit
• Bore size: 67.0 mm
• Bore type: Standard
• Piston diameter: 66.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 break-in coating
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-40312
• Head gasket: 11141-16300
• Base gasket: 11241-41100-H17
• Intake gasket: 13156-41100-H17
• Intake gasket: 13125-40000
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki PE250
