TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5
  • TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5
  • TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5
  • TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5
  • TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5
TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5

TOP END PISTON KIT 77-78 SUZUKI RM 125 55.5mm OVER VINTCO KTS01-1.5

£167.13 GBP
Taxes included. Shipping calculated at checkout.

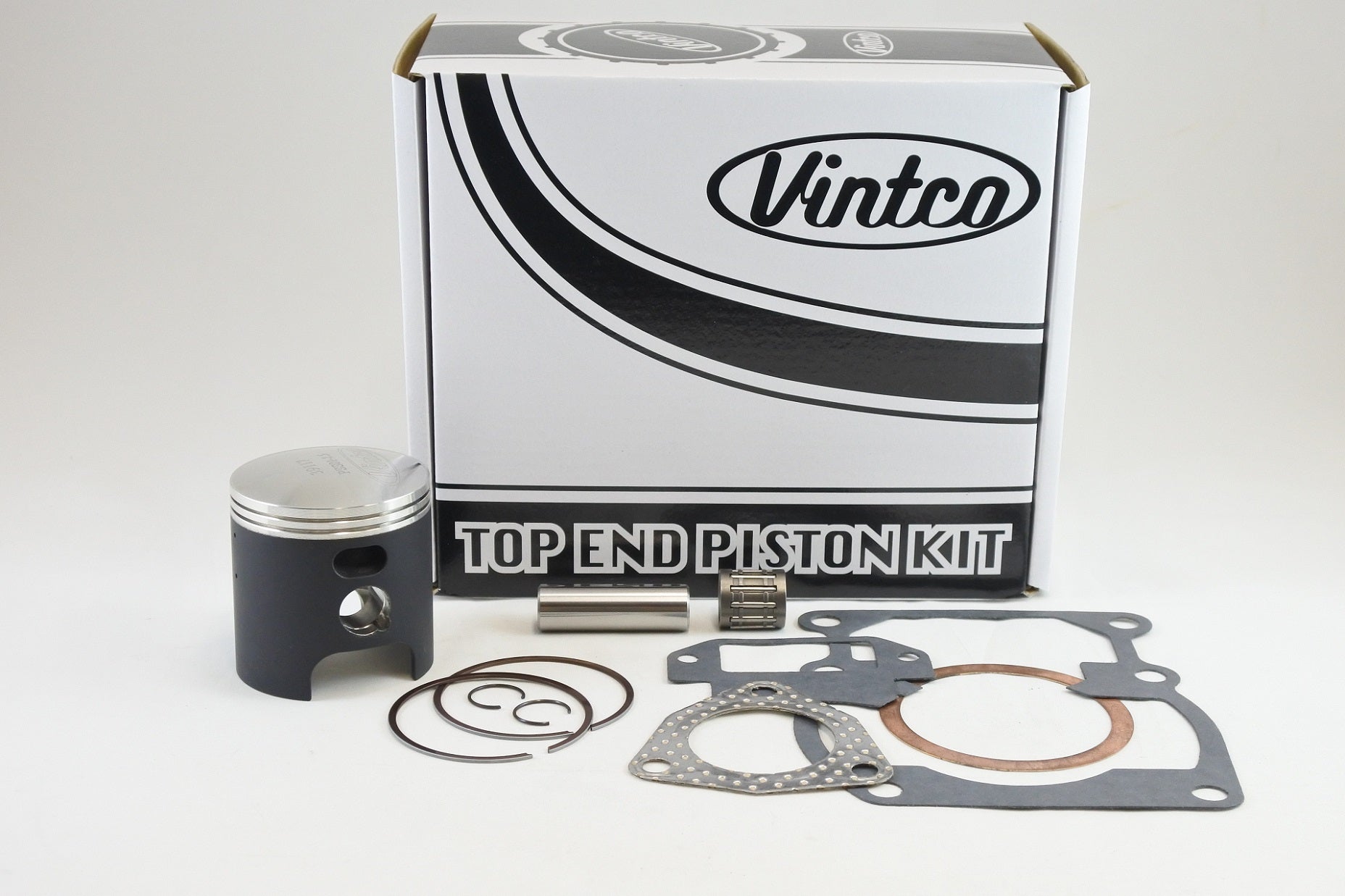

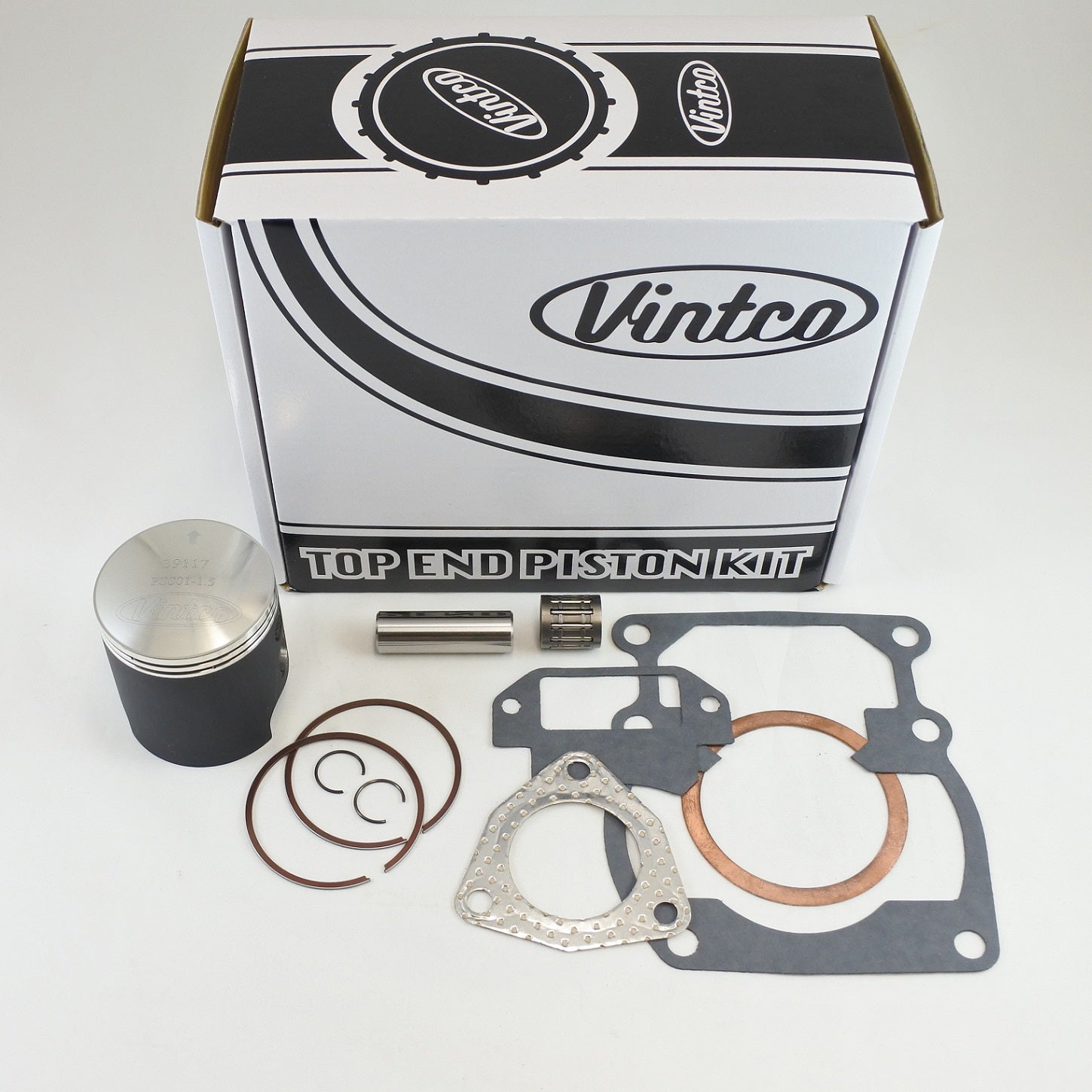

This top end piston kit is for the 1977–1978 Suzuki RM125 and is intended for top end rebuilds. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods and are supplied with OEM cross-reference part numbers for fitment verification.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes top end bearing
  • Includes full top-end gasket kit
  • Contains head gasket, base gasket, intake gasket and exhaust gasket
  • Forged piston with MoS2 coating for running-in
  • Designed for OEM-equivalent fitment and performance
  • Kit price reflects a 10% saving compared with purchasing the items individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTS01-1.5
  • Product type: Top End Piston Kit
  • Nominal piston size: 55.5 mm
  • Oversize: +1.5 mm
  • Piston measurement: 55.44 mm
  • Clearance: 0.06 mm
  • Piston manufacture: Germany

Cross-Reference OEM Part Numbers

  • Head gasket: 11141-41300
  • Base gasket: 11241-41321
  • Intake gasket: 13156-41100-H17
  • Exhaust gasket: 14181-40200-H17
  • Wrist pin bearing: 13033-035

Vehicle Fitments

  • 1977 Suzuki RM125
  • 1978 Suzuki RM125
