TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5
TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5

TOP END PISTON KIT 77-77 SUZUKI RM 80 50.50mm 1.5mm OVER VINTCO KTS11-1.5

£124.62 GBP
Taxes included. Shipping calculated at checkout.

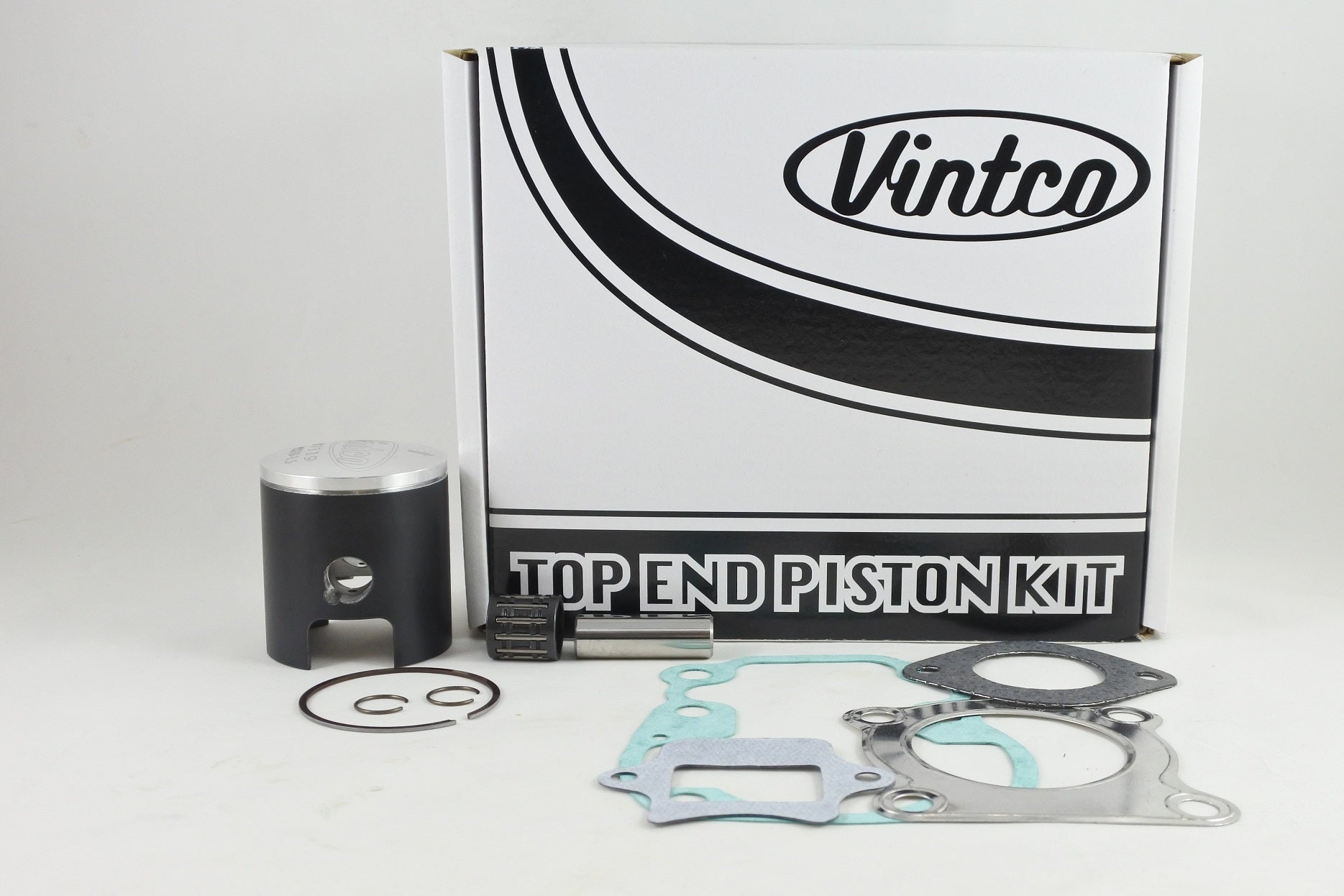

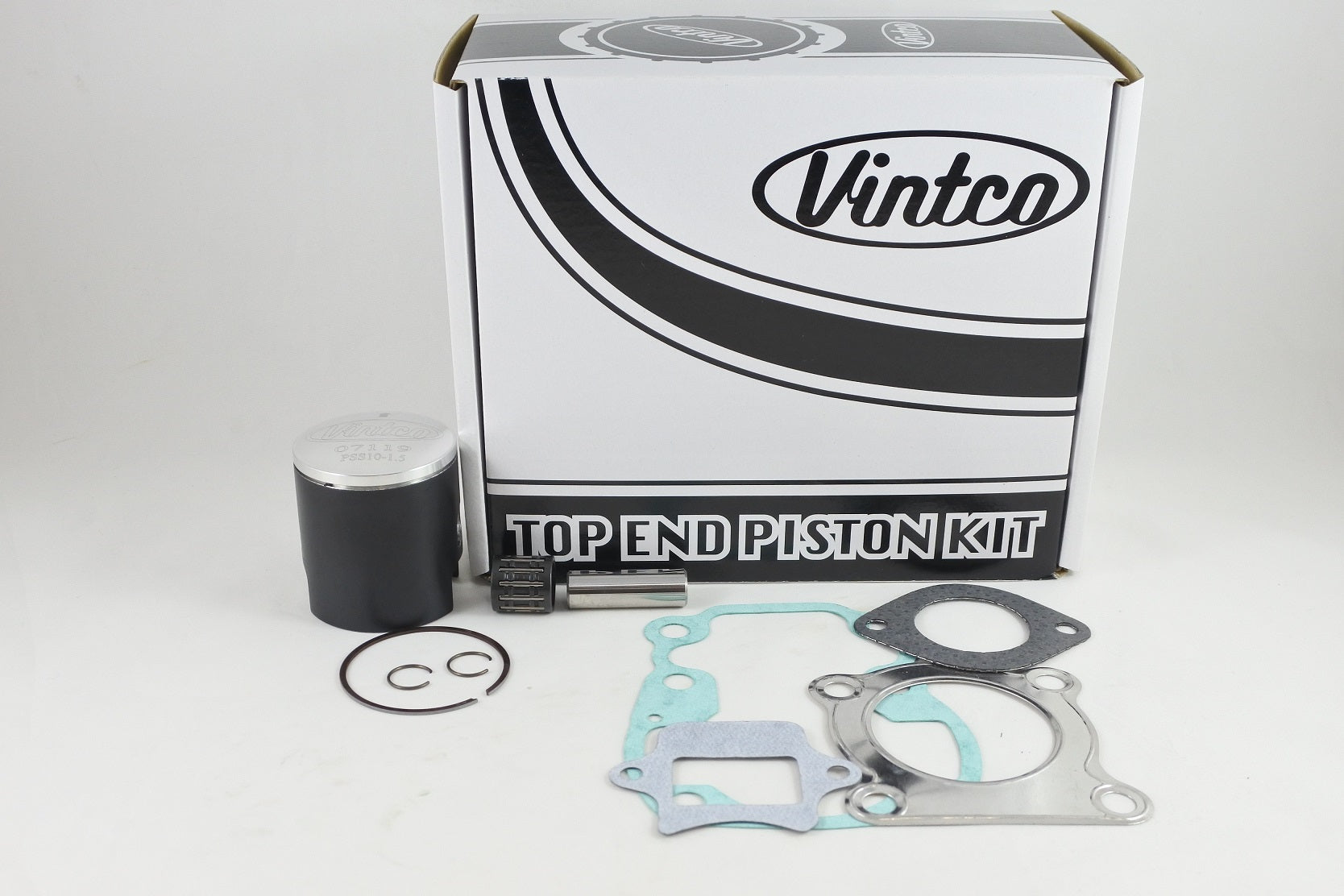

VintCo top-end piston kit for the 1977 Suzuki RM80 provides the components required for a complete top-end rebuild in one package. The kit includes a piston, rings, pin and clips, a top-end bearing, and a full top-end gasket set consisting of head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production techniques for OEM-equivalent or better fitment and performance.

Features

  • Complete top-end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes top-end bearing
  • Includes wrist pin bearing
  • Includes full top-end gasket kit
  • Head gasket included
  • Base gasket included
  • Intake gasket included
  • Exhaust pipe gasket included
  • OEM part numbers provided for exact fitment
  • Additional size options available
  • Kit price includes a 10% saving compared with purchasing the components individually

Specifications

  • VintCo Part Number: KTS11-1.5
  • Title size designation: 50.50 mm, 1.5 mm over
  • Description-stated piston size: 50.45 mm, +1.5 mm oversize
  • Piston clearance: 0.05 mm
  • Piston construction: Forged
  • Coating: German MoS2 break-in coating

Cross-Reference OEM Part Numbers

  • Head gasket: 11141-46082
  • Base gasket: 11241-46010
  • Intake gasket: 13156-46001-H17
  • Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

  • 1977 Suzuki RM80
