TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0
  • TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0
TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0

TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0

£124.62 GBP
Taxes included. Shipping calculated at checkout.

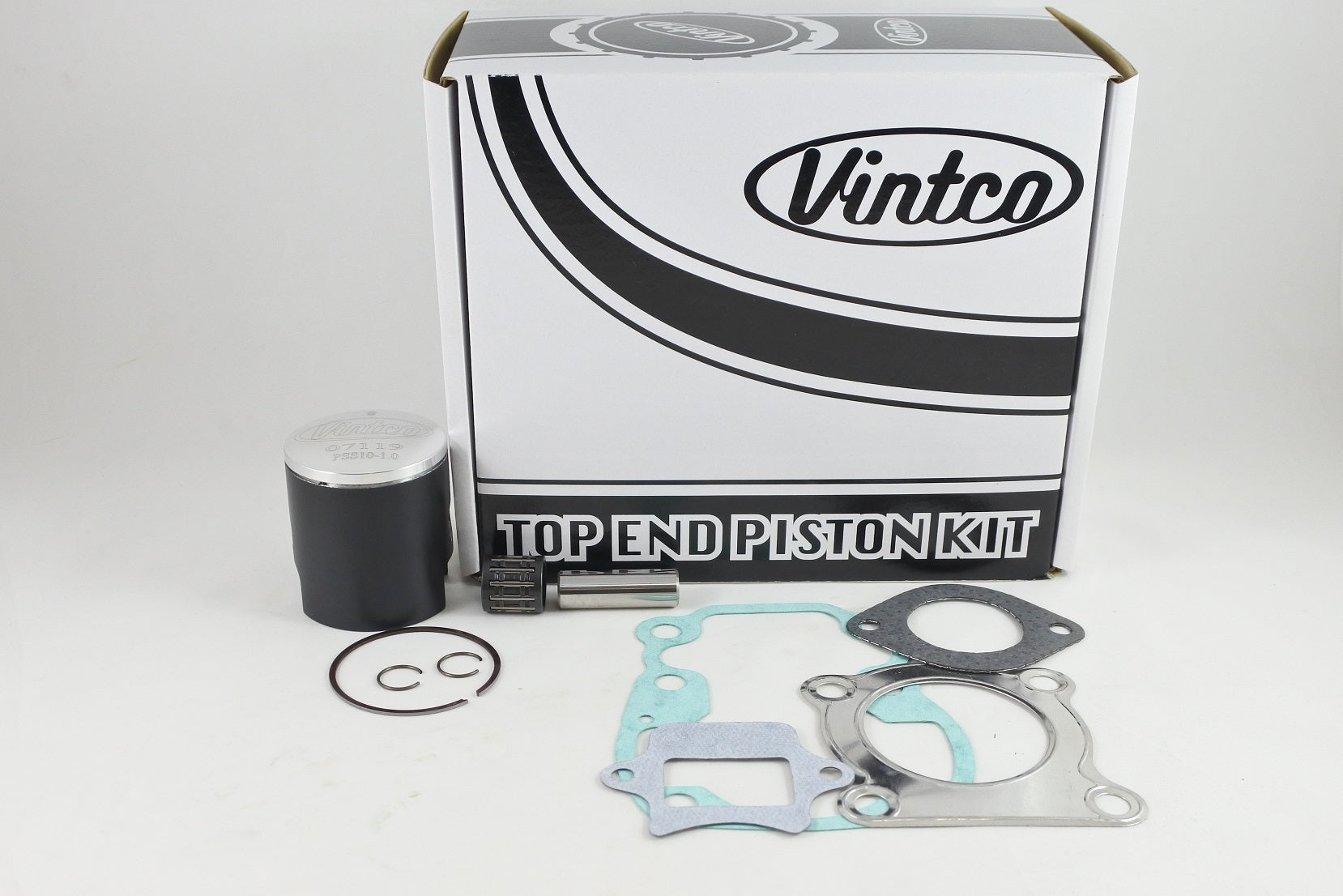

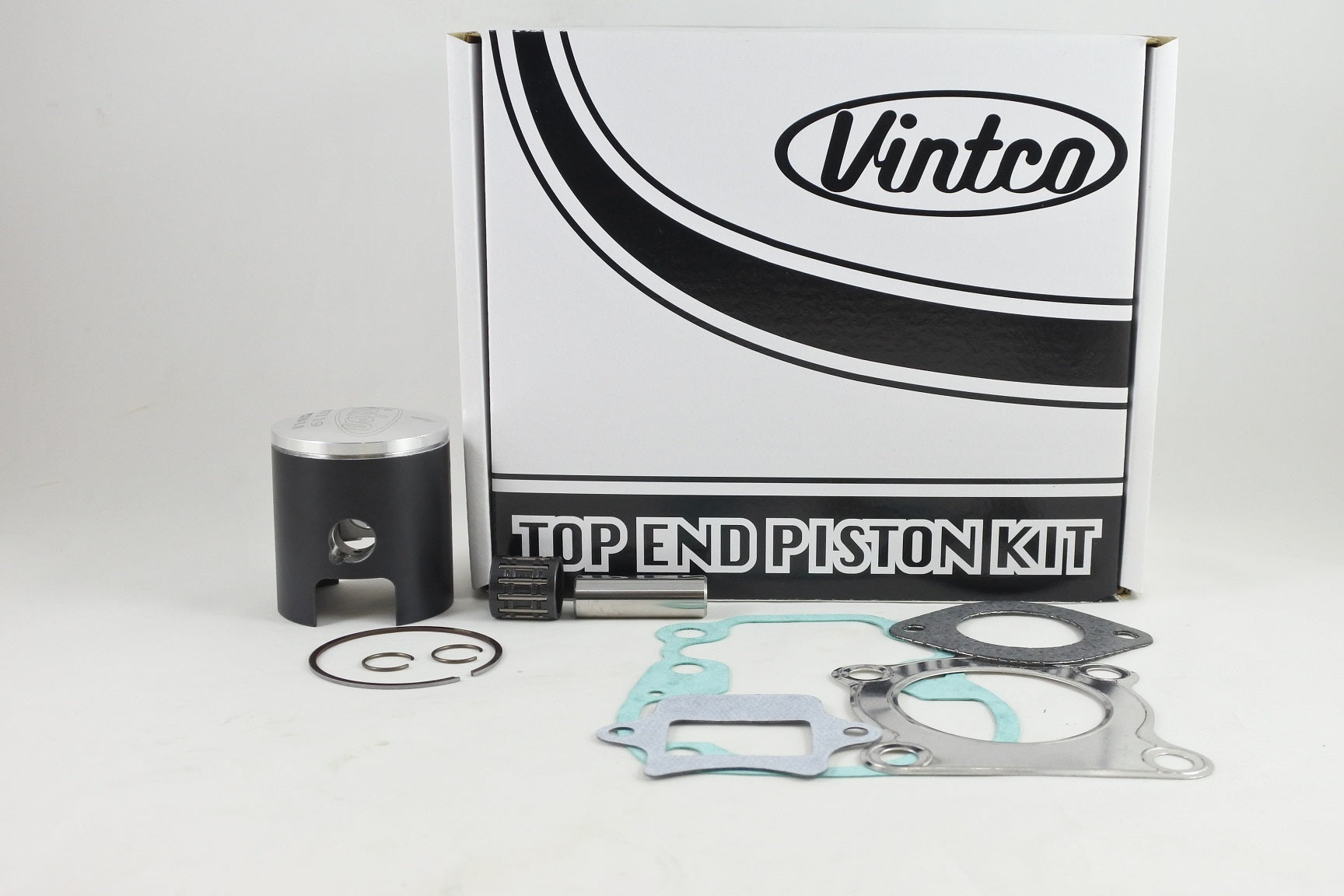

VintCo KTS11-1.0 is a complete top end piston kit for the 1977 Suzuki RM80, supplied for a 1.0 mm overbore rebuild. The kit includes a forged piston with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Manufactured with modern materials and production methods, it is intended to provide OEM-equivalent or better fit and performance while simplifying a top end rebuild.

Features

  • Complete top end rebuild kit
  • Includes piston, rings, pin and clips
  • Includes wrist pin bearing
  • Includes full top-end gasket kit
  • Supplied with head gasket
  • Supplied with base gasket
  • Supplied with intake gasket
  • Supplied with exhaust pipe gasket
  • Forged piston with German MoS2 coating for break-in
  • Designed for OEM-equivalent or better fit and performance
  • Kit price reflects a 10% saving compared with buying the components individually
  • Additional size options are available

Specifications

  • VintCo Part Number: KTS11-1.0
  • Product category: Top End Piston Kits
  • Nominal size: 50.00 mm
  • Piston size: 49.95 mm
  • Oversize: +1.0 mm
  • Clearance: 0.05 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 11141-46082
  • Base gasket: 11241-46010
  • Intake gasket: 13156-46001-H17
  • Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

  • 1977 Suzuki RM80
