TOP END PISTON KIT 77-77 SUZUKI RM 80 49.50mm 0.5mm OVER VINTCO KTS11-0.5

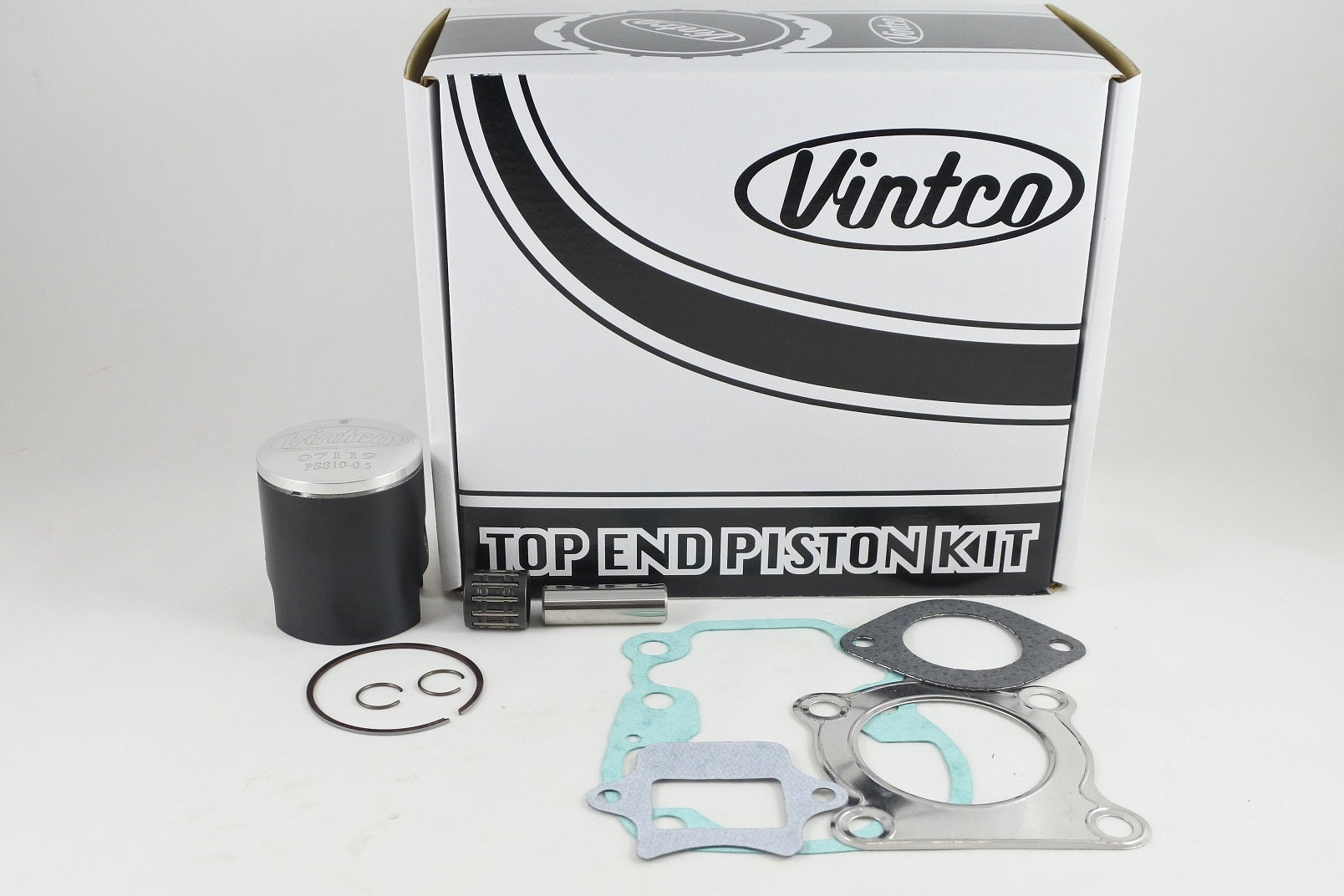

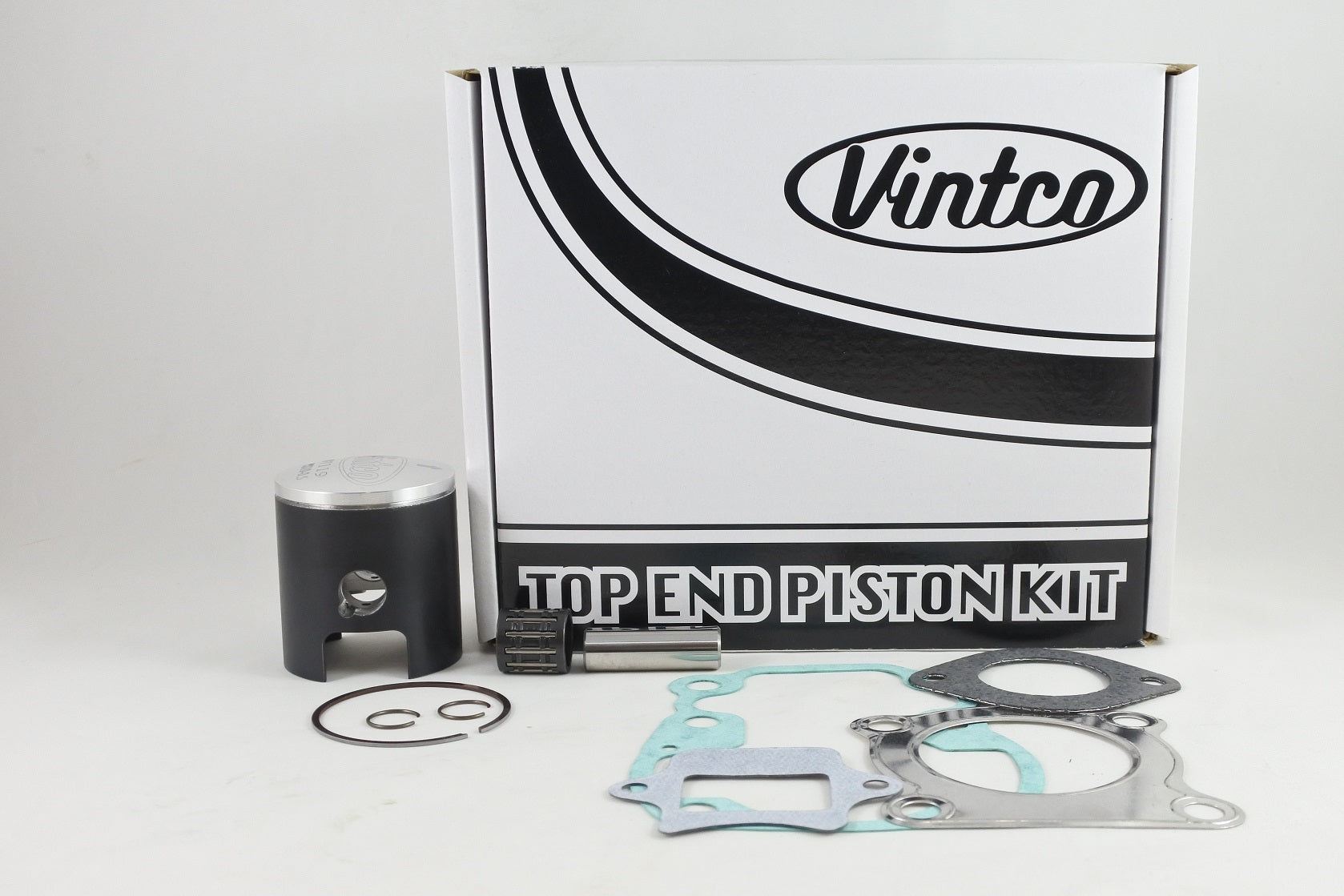

This VintCo top end piston kit is a complete rebuild set for the 1977 Suzuki RM80, supplied with the components required for a top end overhaul in 49.50 mm, +0.5 mm oversize form. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fitment and performance, and the kit is priced at 10% less than purchasing the items separately. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust gasket
• Intended for 1977 Suzuki RM80 top end rebuilding
• Kit pricing includes a 10% saving compared with individual items
• Additional size options available

Specifications

• VintCo Part Number: KTS11-0.5
• Piston size: 49.50 mm
• Oversize: +0.5 mm
• Listed piston measurement: 49.45 mm
• Oversize clearance: 0.05 mm
• Forged piston
• German MoS2 coated for running-in

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46010
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1977 Suzuki RM80
