TOP END PISTON KIT 76-78 HONDA CR 125 57.0mm 1.0mm OVER VINTCO KTH02-1.0

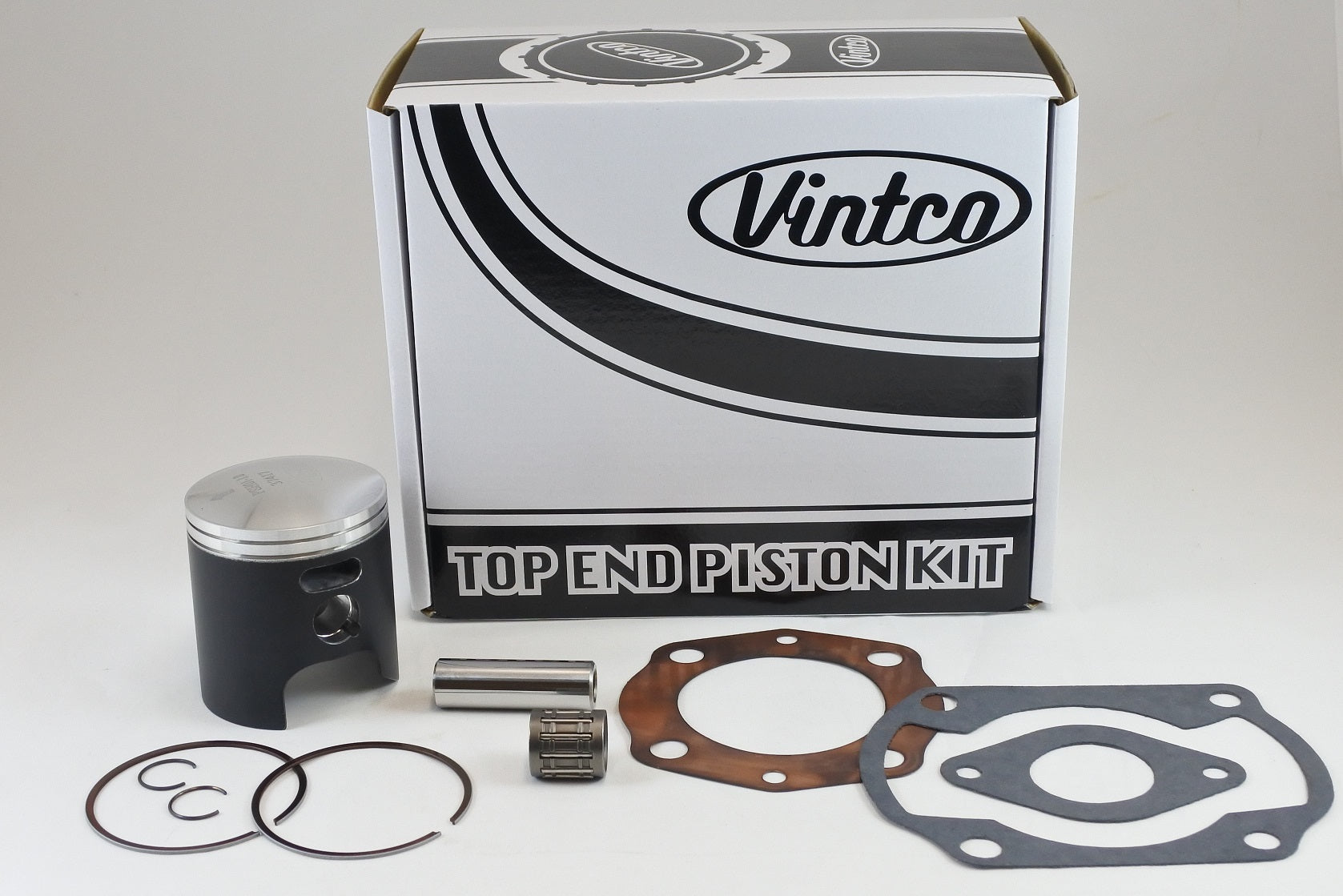

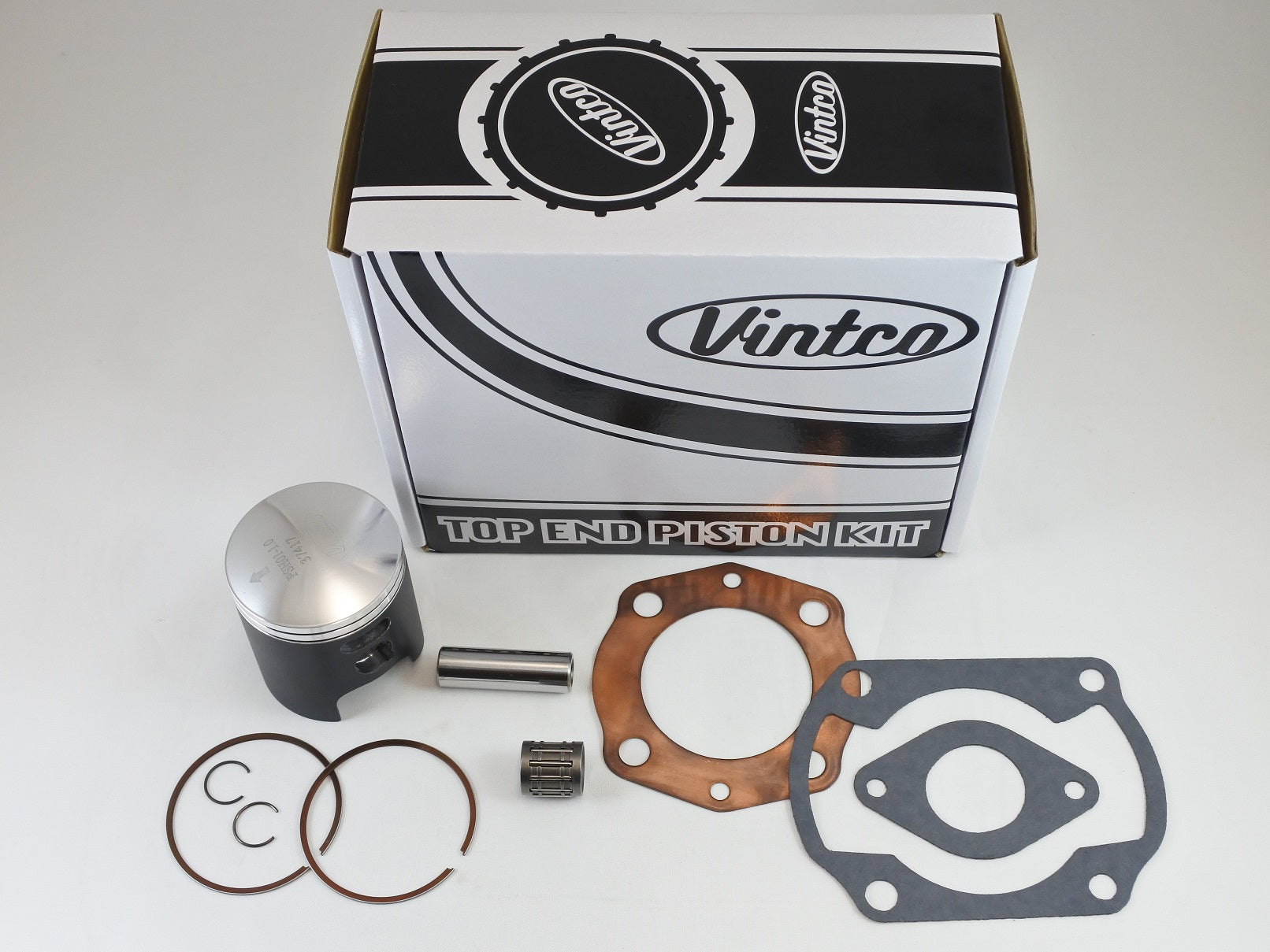

VintCo top end piston kit KTH02-1.0 is a complete rebuild set for 1976-1978 Honda CR125 models, supplied with a 57.0 mm piston in +1.0 mm oversize and the related top-end components required for service work. The kit includes a forged VintCo piston with rings, pin and clips, a top end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fitment and performance.

Features

• Complete top-end rebuild kit for Honda CR125 models
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended to simplify rebuild work
• OEM part number references supplied for exact fitment
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH02-1.0
• Piston size: 57.0 mm
• Oversize: +1.0 mm
• Piston measured diameter: 56.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13105-360-700
• Head Gasket: 12251-360-000
• Base Gasket: 12191-373-306
• Intake Gasket: 16212-360-306
• Wrist Pin Bearing: 91007-444-004

Vehicle Fitments

• 1976 Honda CR125
• 1977 Honda CR125
• 1978 Honda CR125
