Top End Piston Kit 76-78 Honda CR 125 56.0mm Standard Vintco KTH02-00

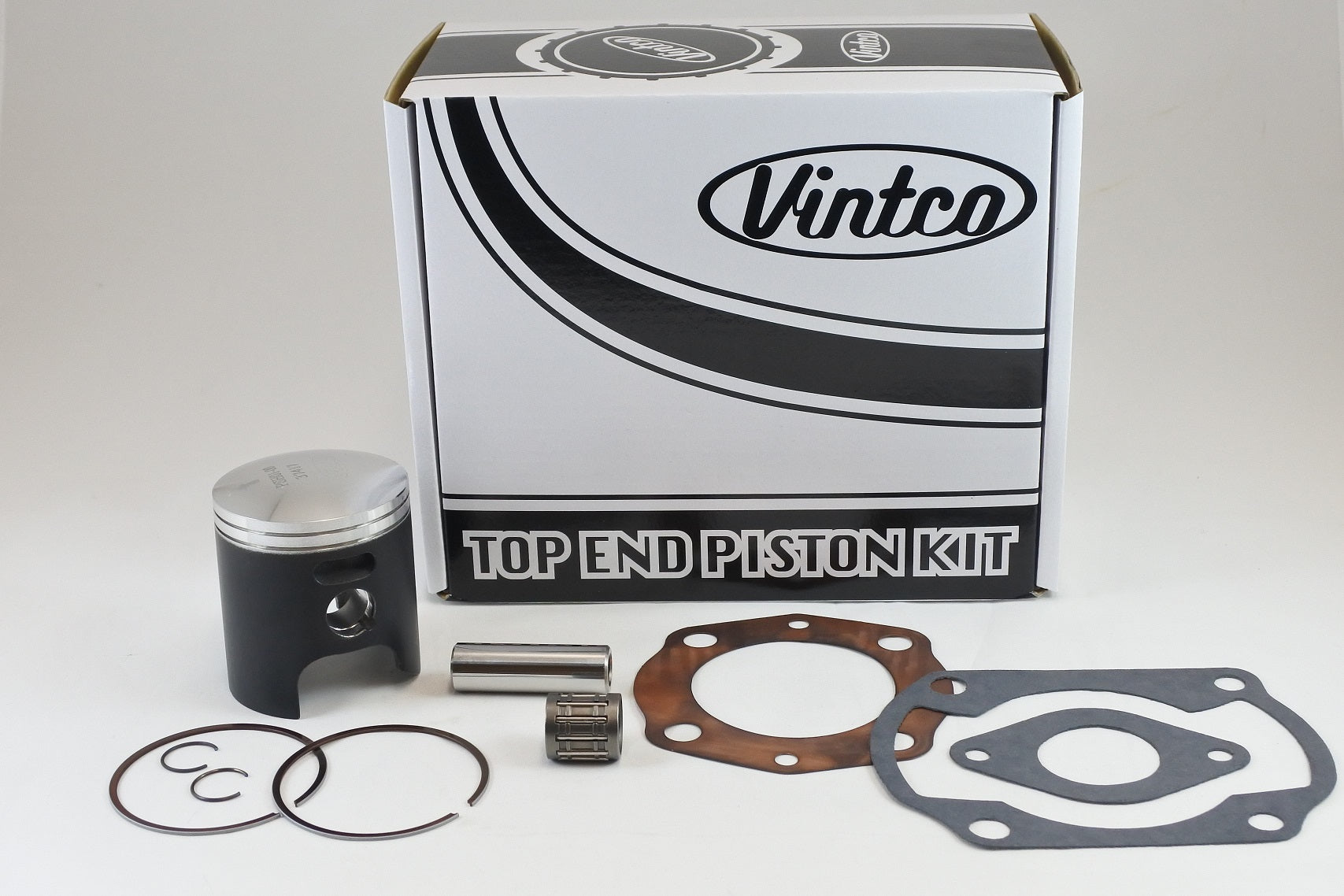

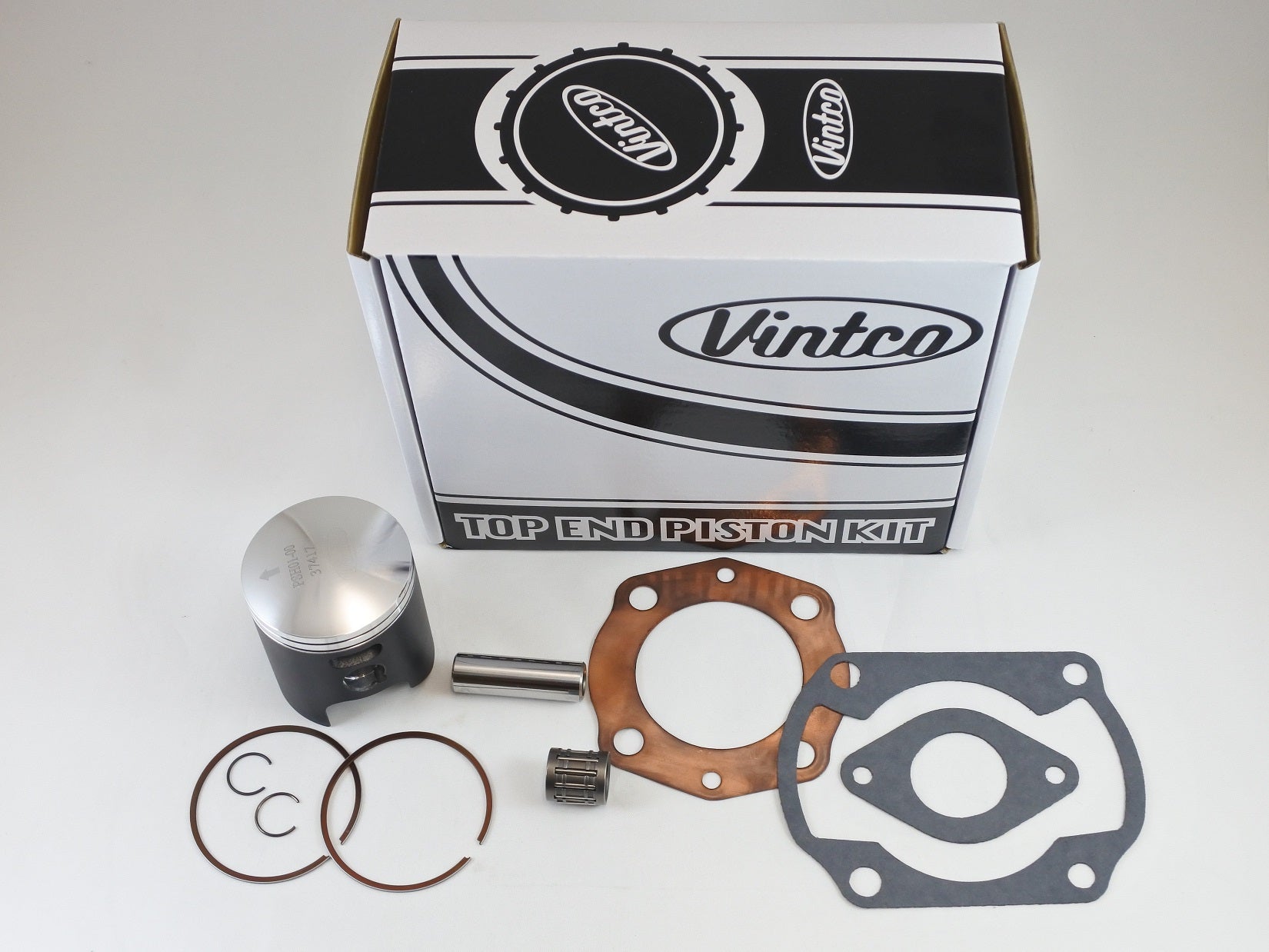

VintCo KTH02-00 is a top end piston kit for 1976–1978 Honda CR125 models with a 56.0 mm standard bore. The kit is intended for top-end rebuilds and includes a piston, rings, pin, clips, a top end bearing, and a full top-end gasket set comprising head, base, intake, and exhaust gaskets. Components are produced using modern materials and manufacturing methods for OEM-level or better fit and performance, and the kit price is 10% lower than purchasing the parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket kit includes head, base, intake and exhaust gaskets
• Designed for straightforward top-end rebuilds
• OEM-level or better fit and performance
• Kit price includes a 10% saving compared with buying components individually
• Additional size options are available
• MoS2-coated piston for running-in

Specifications

• VintCo Part Number: KTH02-00
• Bore size: 56.0 mm
• Bore type: Standard
• Piston diameter: 55.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 13101-360-700
• Head gasket: 12251-360-000
• Base gasket: 12191-373-306
• Intake gasket: 16212-360-306
• Wrist pin bearing: 91007-444-004

Vehicle Fitments

• 1976 Honda CR125
• 1977 Honda CR125
• 1978 Honda CR125
