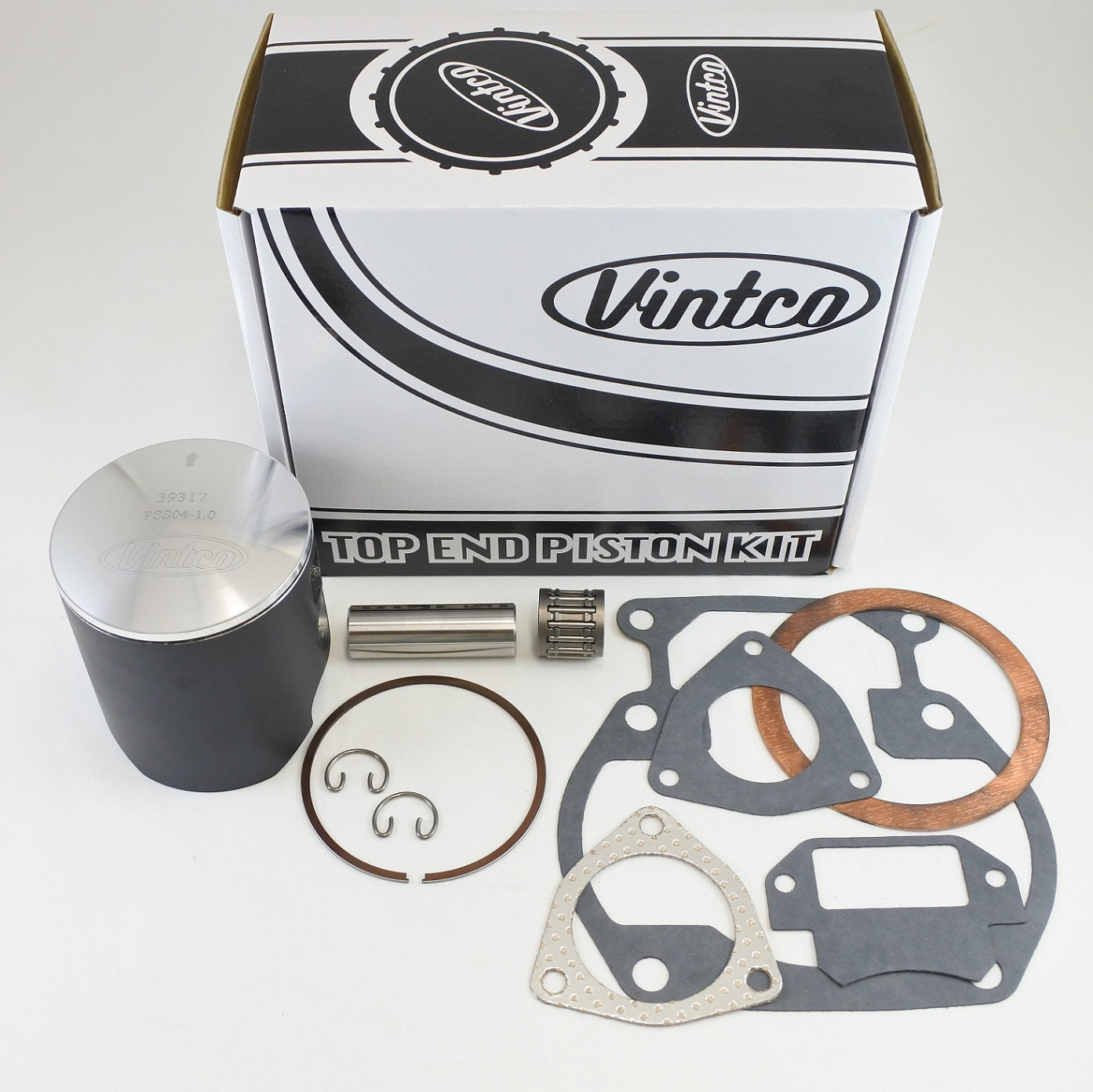

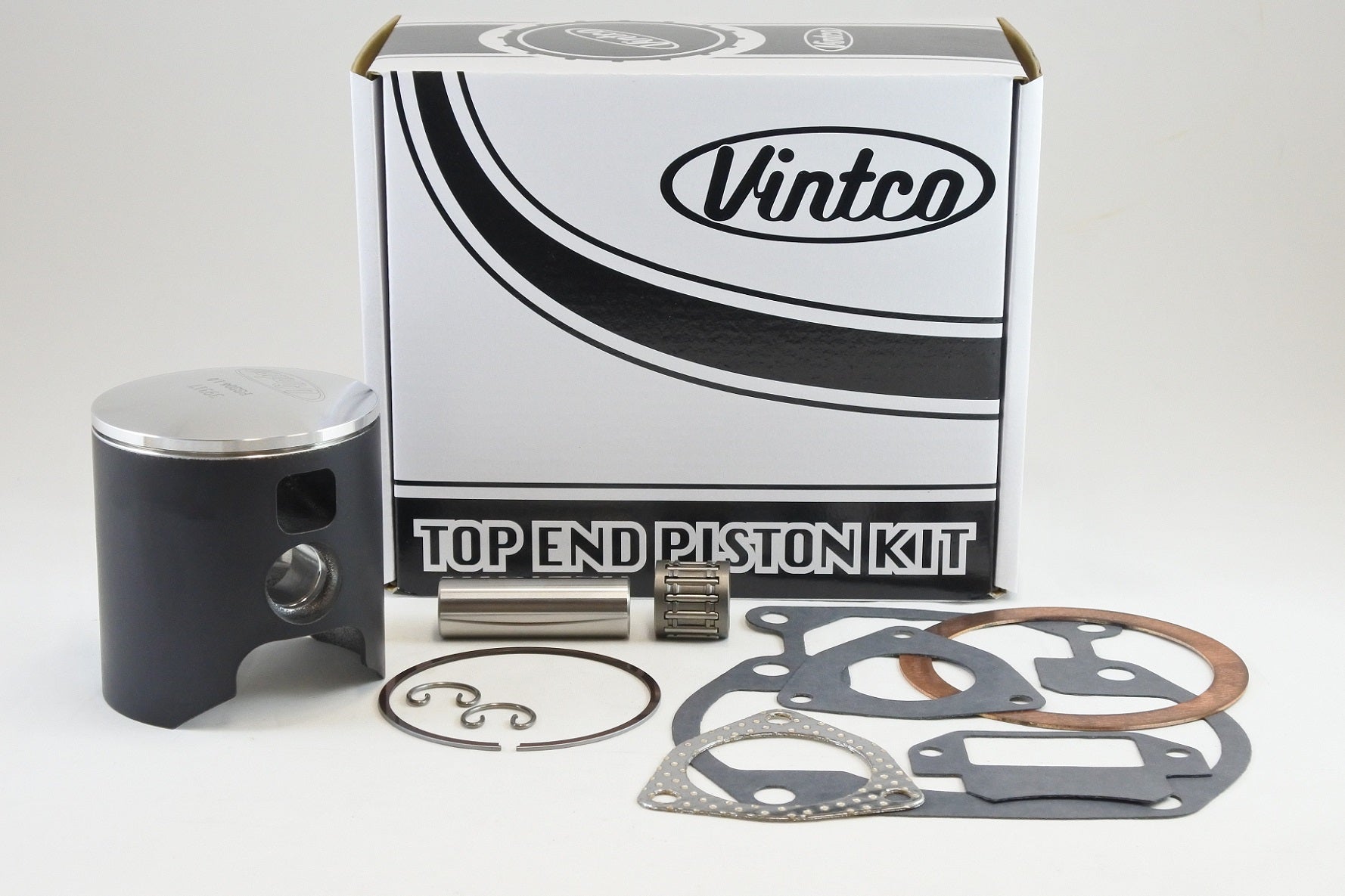

Top End Piston Kit 76-77 Suzuki RM 370 78.0mm 1.0mm Over Vintco KTS06-1.0

This VintCo top-end piston kit is for the 1976-1977 Suzuki RM370 and is supplied as a complete rebuild set for a 1.0 mm oversize application. The kit includes a piston, rings, pin, clips, top-end bearing, and a full top-end gasket set comprising head, base, intake, and exhaust gaskets. It is manufactured using modern materials and production methods to provide OEM-equivalent or better fit and performance, and it is supplied as a kit at a 10% lower cost than purchasing the components individually. Other size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top-end bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust gasket
• MoS2-coated piston for break-in
• OEM-referenced components for exact fit
• Other size options available
• Kit price is 10% lower than purchasing the items individually

Specifications

• VintCo Part Number: KTS06-1.0
• Product type: Top End Piston Kit
• Application: Suzuki RM370 1976-1977
• Nominal piston size: 78.0 mm
• Oversize: +1.0 mm
• Piston size: 77.92 mm
• Clearance: 0.08 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2

Cross-Reference OEM Part Numbers

• Head gasket: 11141-41210
• Base gasket: 11241-14200-H17
• Intake gasket: 13156-41100-H17
• Intake gasket: 13125-40000
• Exhaust gasket: 14181-41201-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1976 Suzuki RM370
• 1977 Suzuki RM370
