Top End Piston Kit 76-77 Suzuki RM 370 77.5mm 0.5mm Over Vintco KTS06-0.5

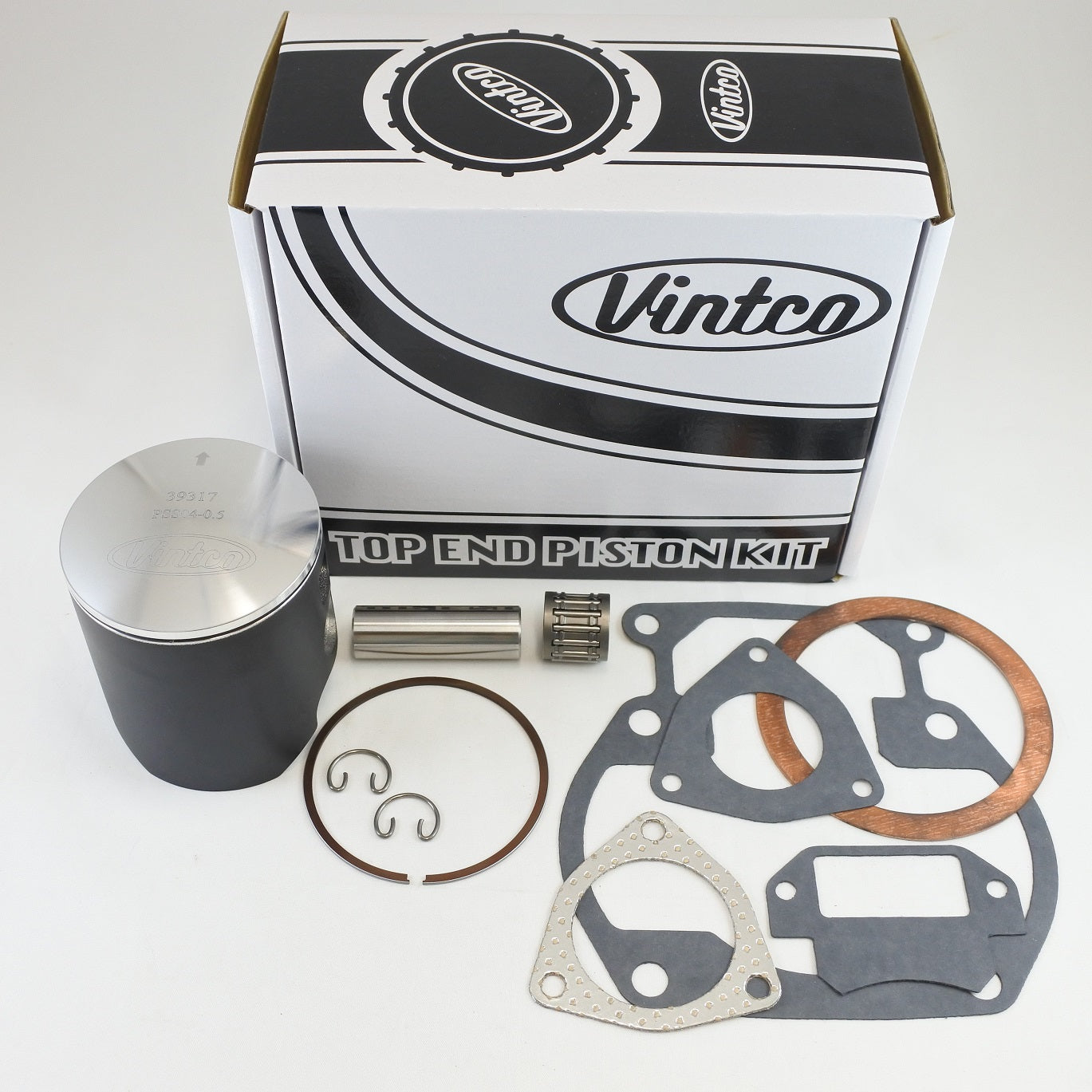

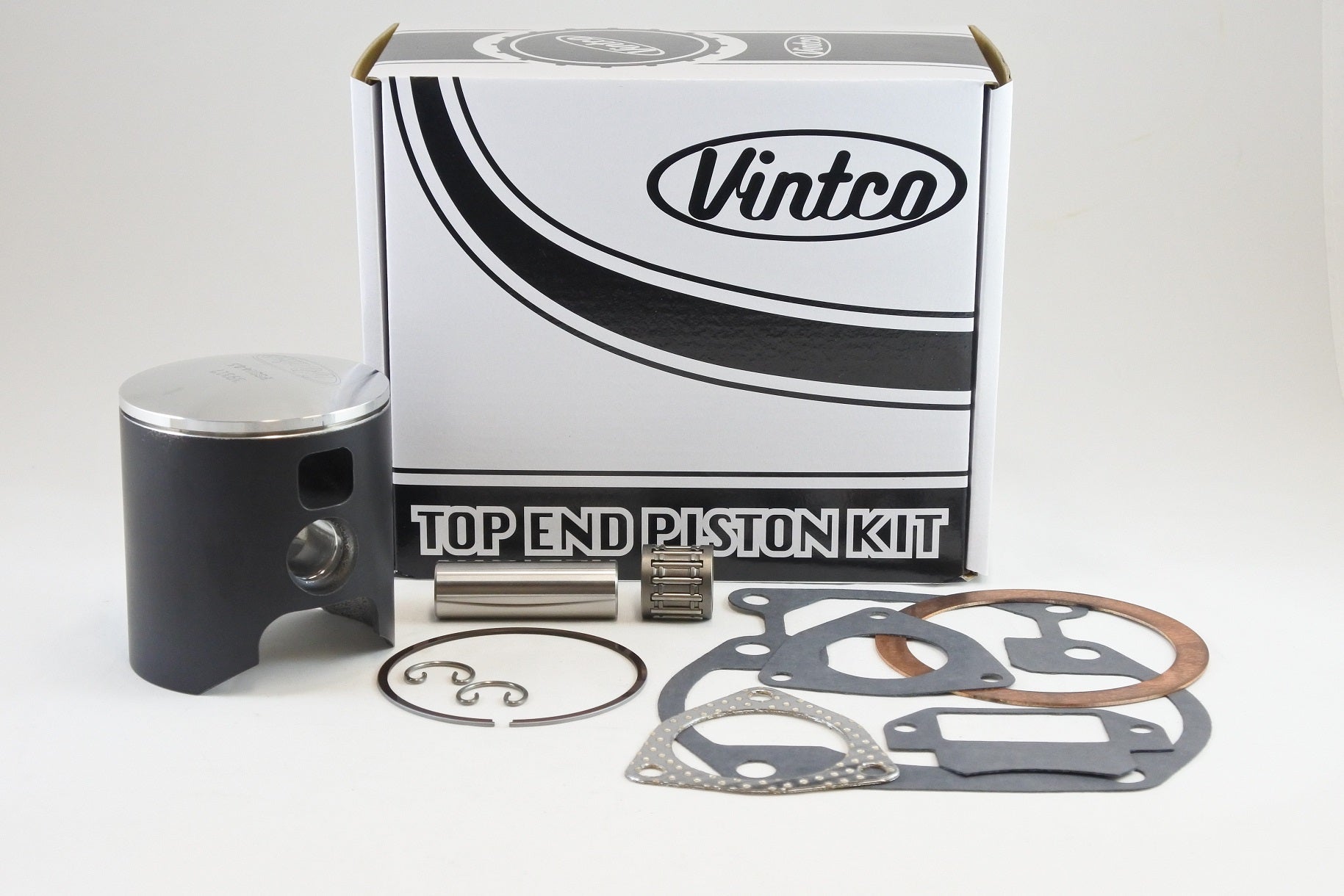

This top-end piston kit is a complete rebuild set for the 1976-1977 Suzuki RM370, supplied with a 77.5 mm piston in +0.5 mm oversize. The kit includes a VintCo piston assembly with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust. Components are manufactured using modern materials and production methods to provide OEM-equivalent fitment and performance.

Features

• Complete top-end rebuild kit for 1976-1977 Suzuki RM370 models
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Includes head gasket, base gasket, intake gaskets and exhaust gasket
• OEM-referenced components for exact fitment
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS06-0.5
• Kit type: Top End Piston Kit
• Piston size: 77.5 mm
• Oversize: +0.5 mm
• Piston measurement: 77.42 mm
• Piston clearance: 0.08 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Piston: 12110-41202-050
• Head gasket: 11141-41210
• Base gasket: 11241-14200-H17
• Intake gasket: 13156-41100-H17
• Intake gasket: 13125-40000
• Exhaust gasket: 14181-41201-H17
• Wrist pin bearing: 09263-18016

Vehicle Fitments

• 1976 Suzuki RM370
• 1977 Suzuki RM370
