TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0
  • TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0
  • TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0
  • TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0
  • TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0
TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0

TOP END PISTON KIT 76-76 YAMAHA YZ 175 68mm 2.0mm OVER VINTCO KTY68-2.0

£237.06 GBP
Taxes included. Shipping calculated at checkout.

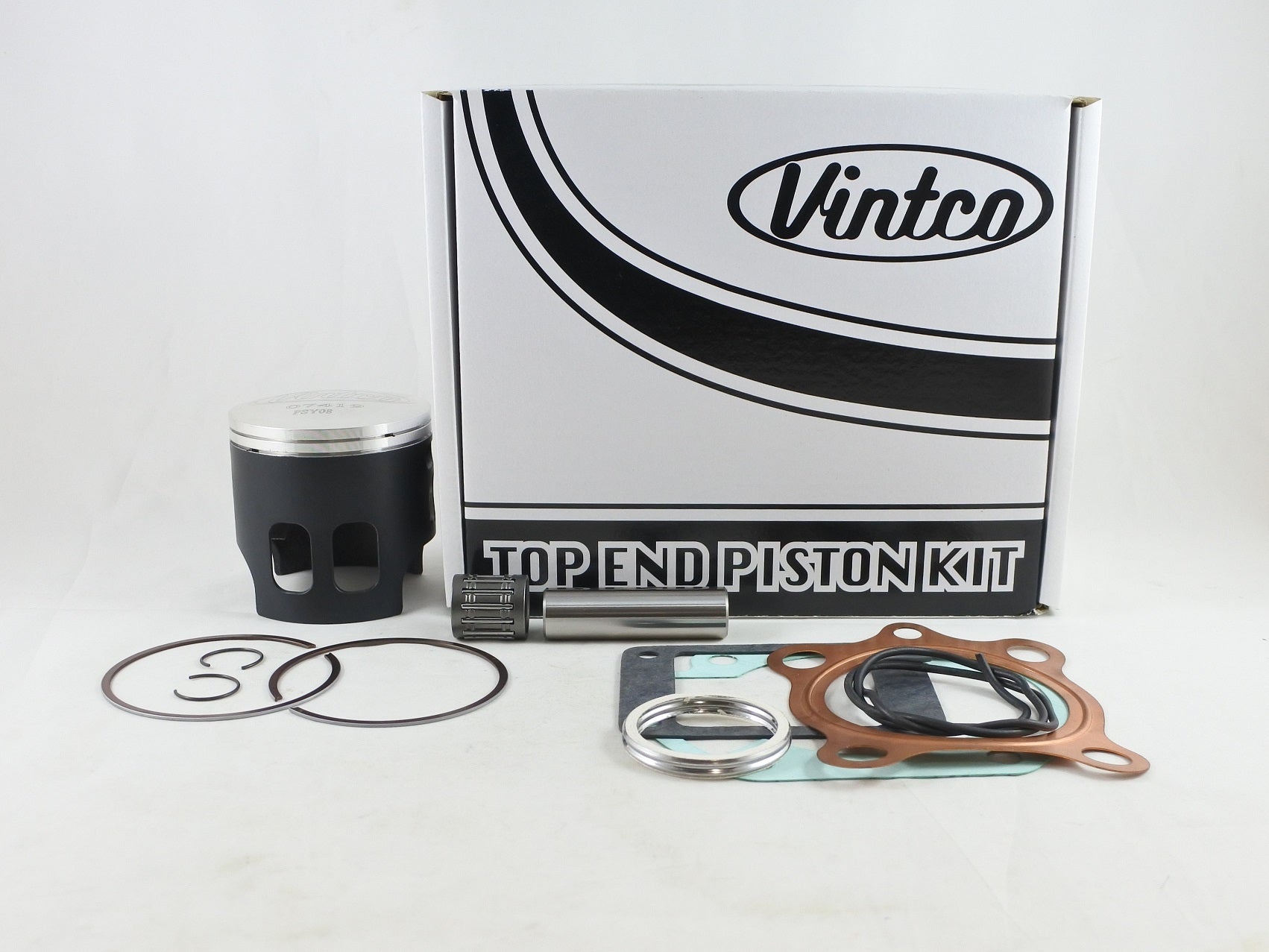

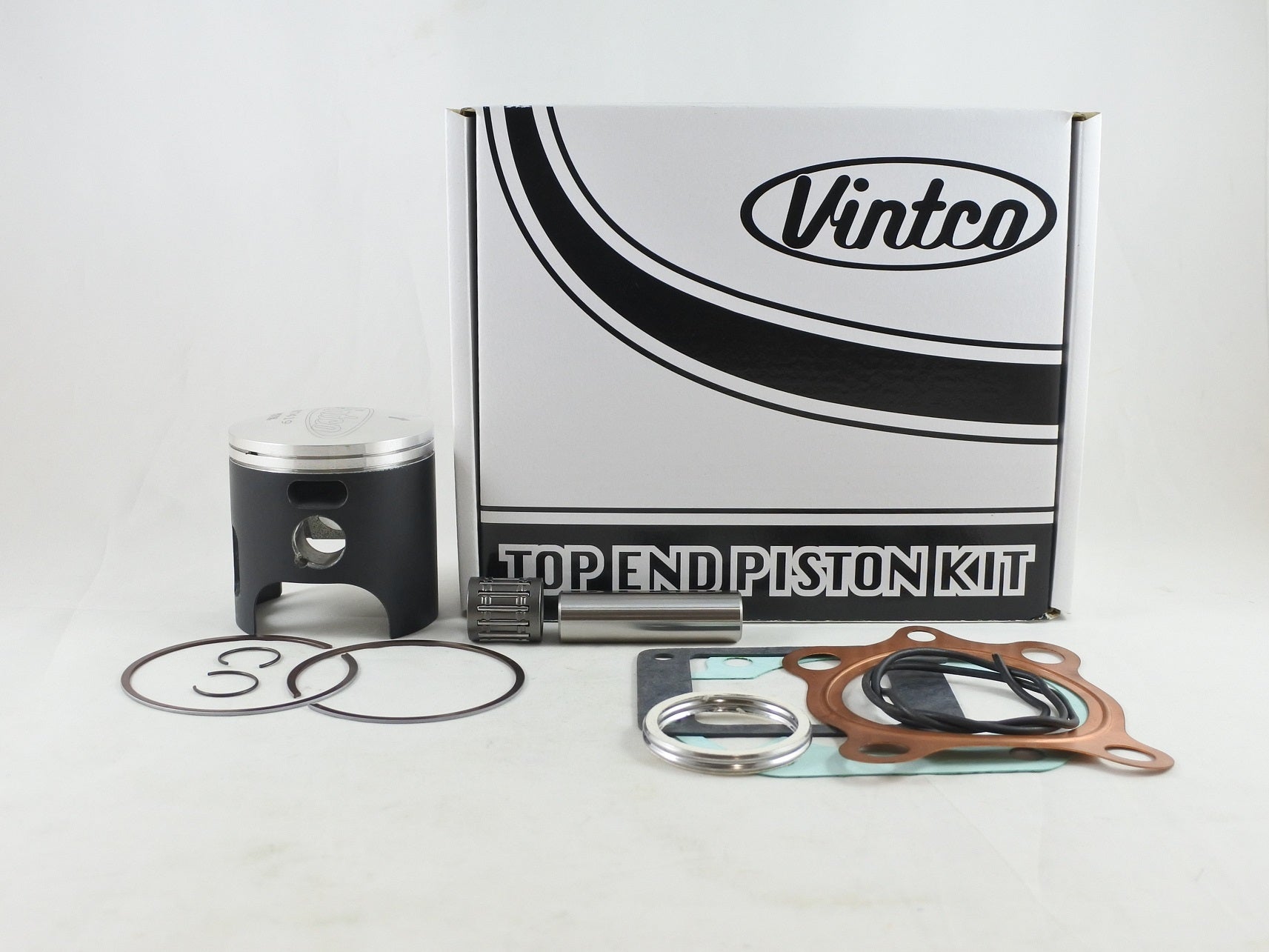

This top end piston kit is designed for the 1976 Yamaha YZ175 and includes the components required for a top-end rebuild in a 68 mm, 2.0 mm oversize configuration. The kit includes a forged piston, matched gaskets and a wrist pin bearing, with kit pricing set at 10% less than purchasing the items individually.

Features

  • Complete top end piston kit for top-end service
  • Includes forged piston
  • Piston supplied with break-in coating
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes exhaust pipe gaskets
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY68-2.0
  • Piston size: 68 mm
  • Oversize: 2.0 mm over
  • Actual piston diameter: 67.94 mm
  • Clearance: 0.06 mm
  • Piston construction: Forged
  • Country of manufacture: Germany
  • Piston coating: MOS2

Cross-Reference OEM Part Numbers

  • Cylinder Head Gasket: 1L8-11181-01-00
  • Cylinder Base Gasket: 1L8-11351-01-00
  • Intake Gasket: 3TT-13621-00-00
  • Exhaust Pipe Gasket: 3PA-14613-10-00
  • Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

  • 1976 Yamaha YZ175
