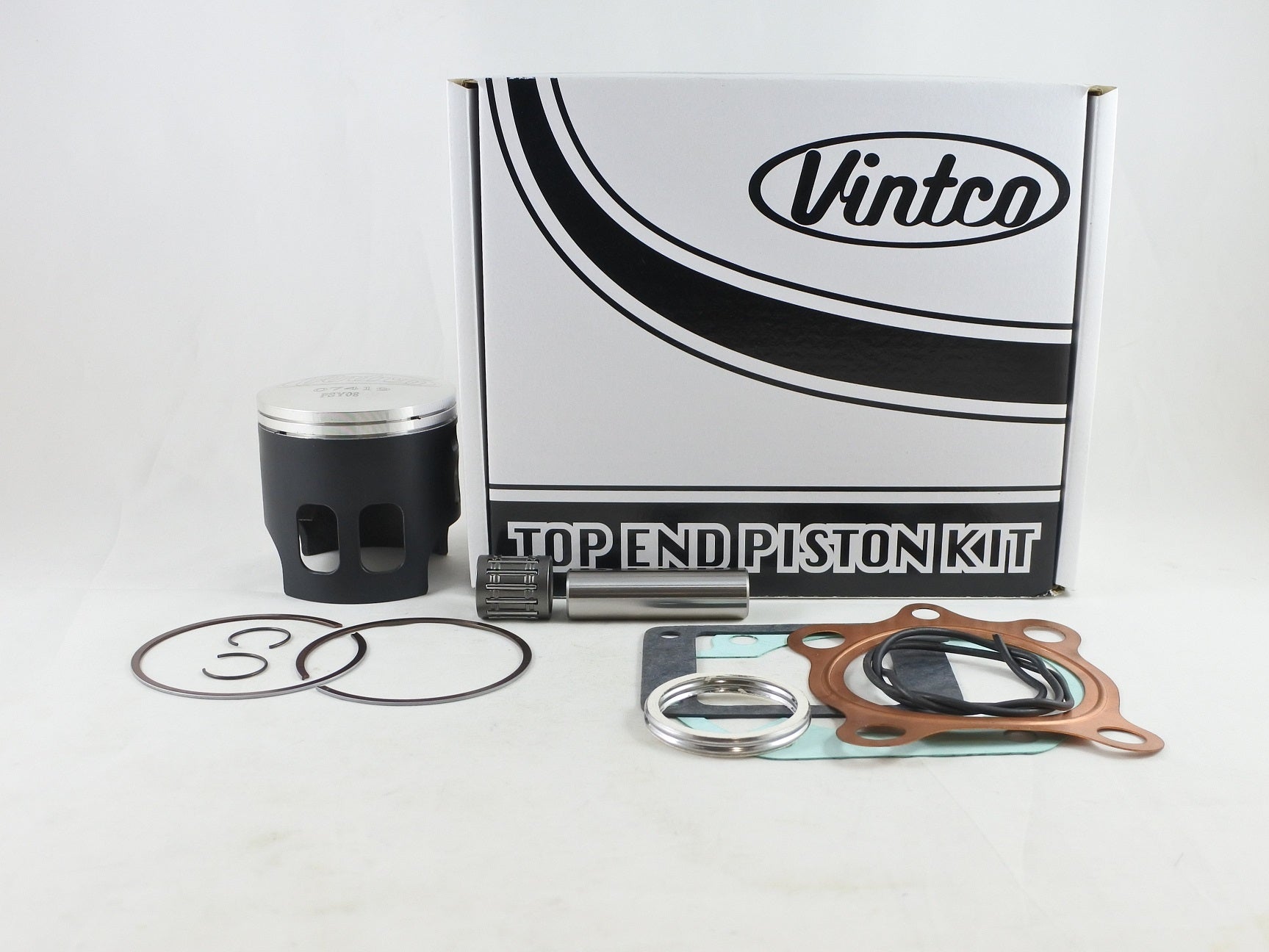

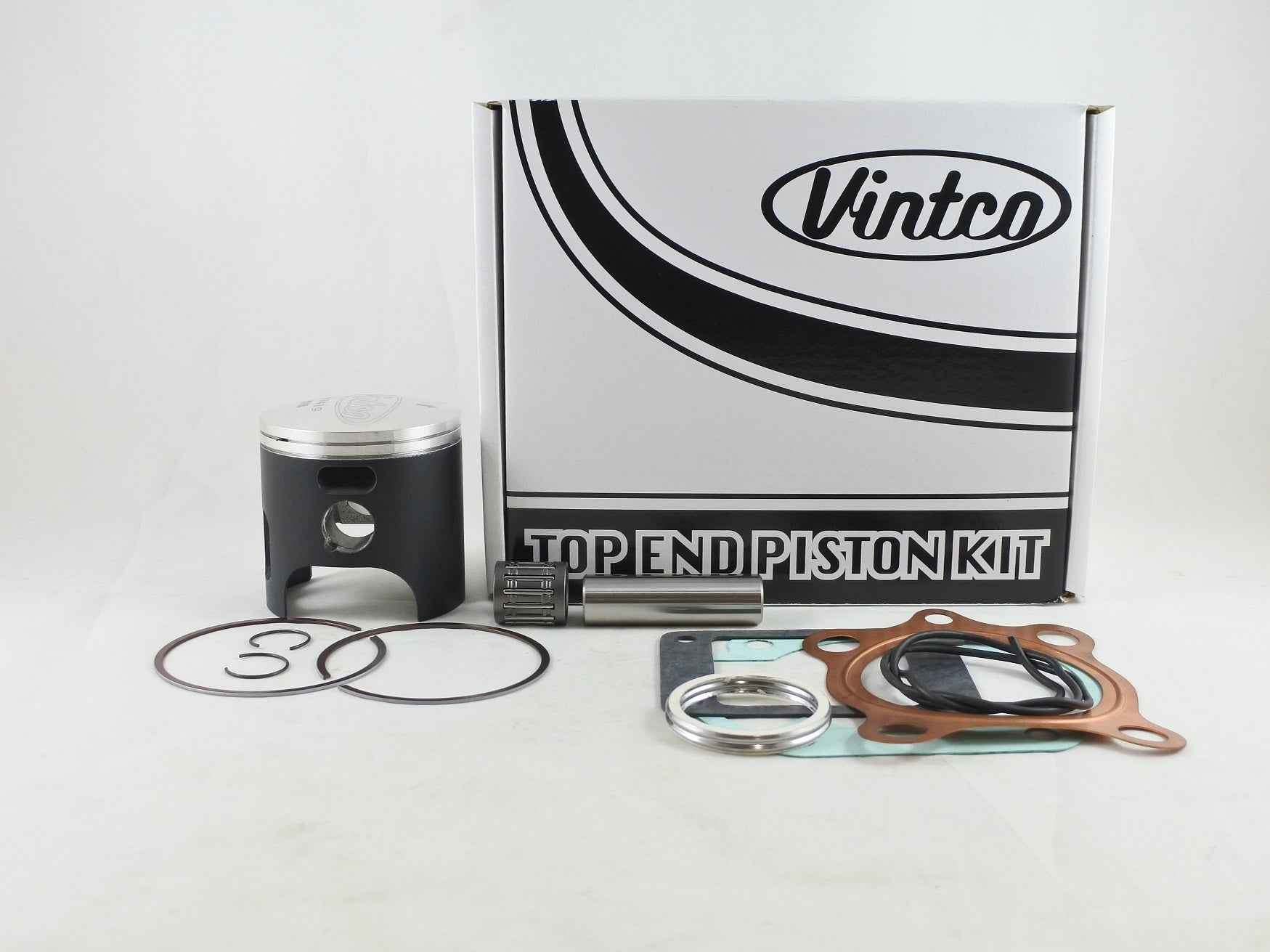

TOP END PISTON KIT 76-76 YAMAHA YZ 175 66.5mm 0.5mm OVER VINTCO KTY68-0.5

Top end piston kit for the 1976 Yamaha YZ175, supplied in 66.5 mm 0.5 mm over size. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, together with the required cylinder head gasket, cylinder base gasket, intake gasket, two exhaust pipe gaskets, and a wrist pin bearing. Kit pricing reflects a 10% reduction compared with purchasing the items individually.

Features

• Complete top end piston kit for top end rebuild work
• Forged piston
• Made in Germany
• MOS2 coated for running-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTY68-0.5
• Piston size: 66.5 mm
• Oversize: 0.5 mm over
• Piston measurement: 66.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 1L8-11181-01-00
• Cylinder Base Gasket: 1L8-11351-01-00
• Intake Gasket: 3TT-13621-00-00
• Exhaust Pipe Gasket: 3PA-14613-10-00
• Exhaust Pipe Gasket: 248-14623-10-00

Vehicle Fitments

• 1976 Yamaha YZ175
