Top End Piston Kit 76-76 Yamaha LB80IIA 47mm Standard Vintco KTY56-00

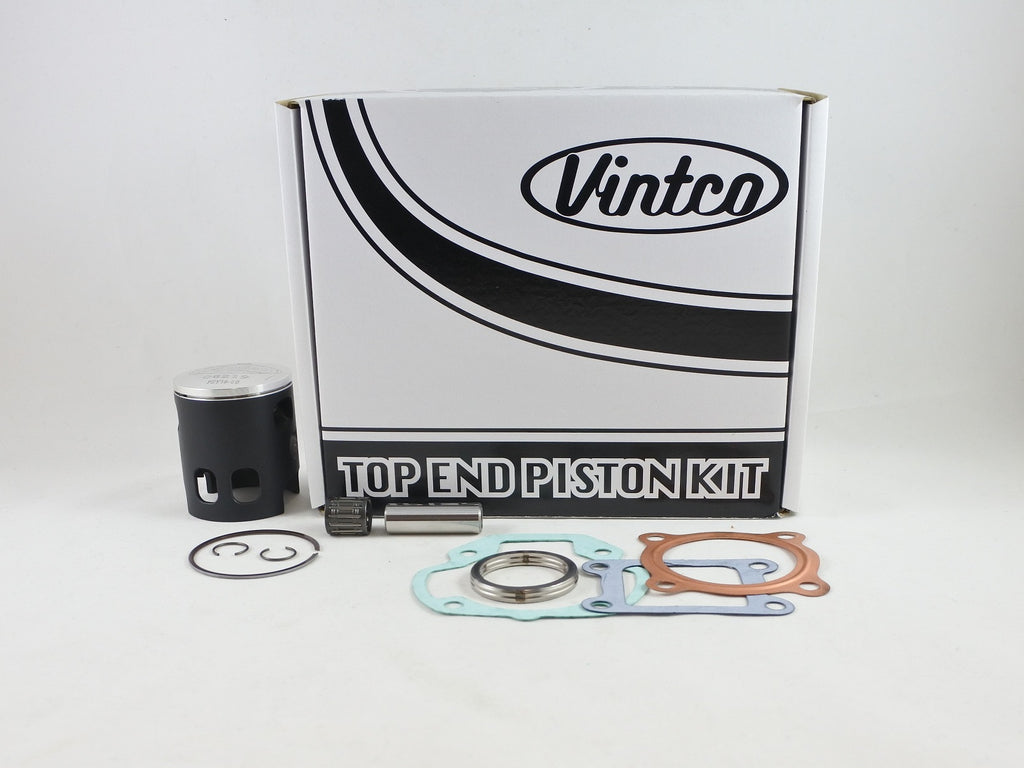

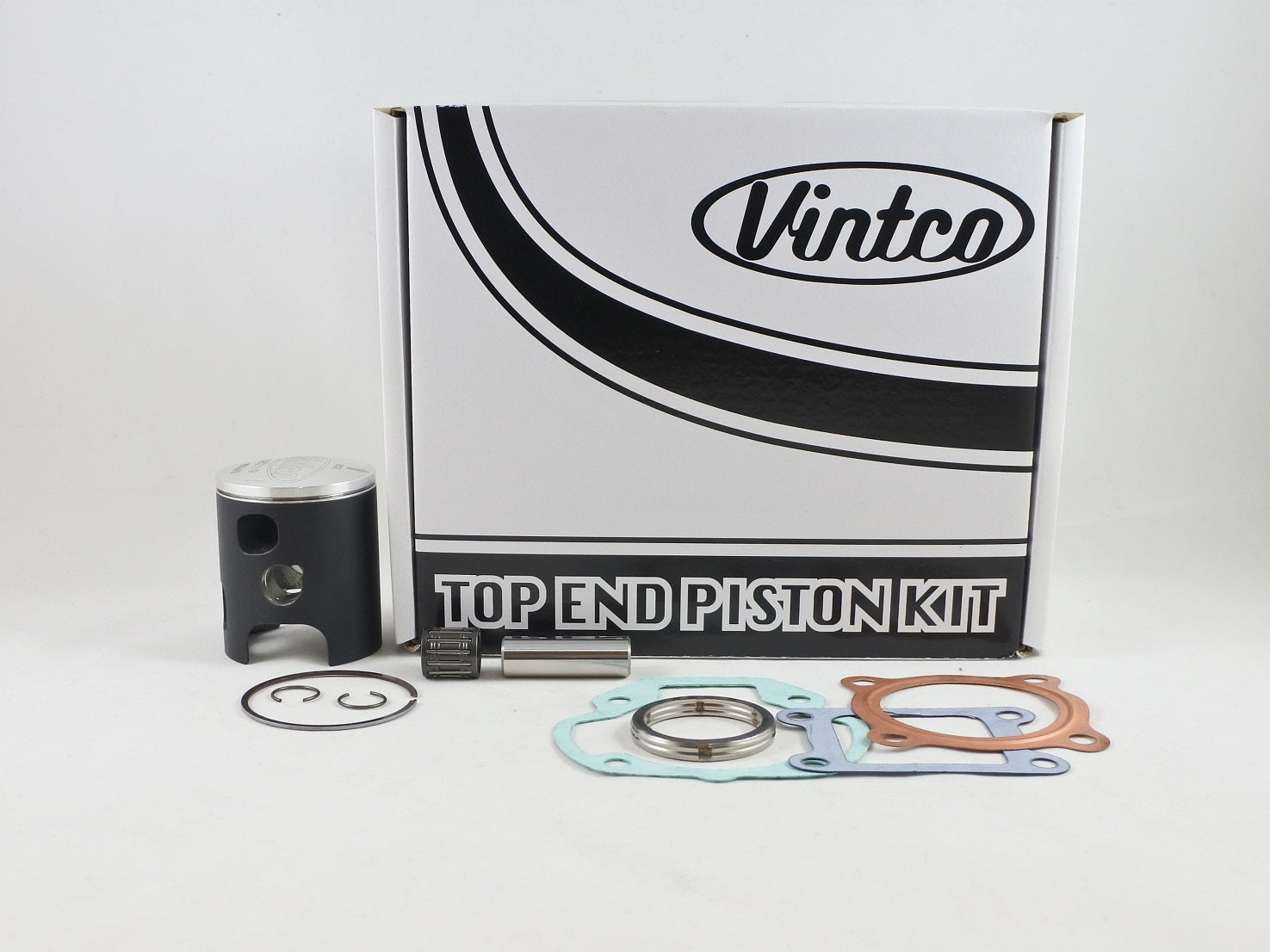

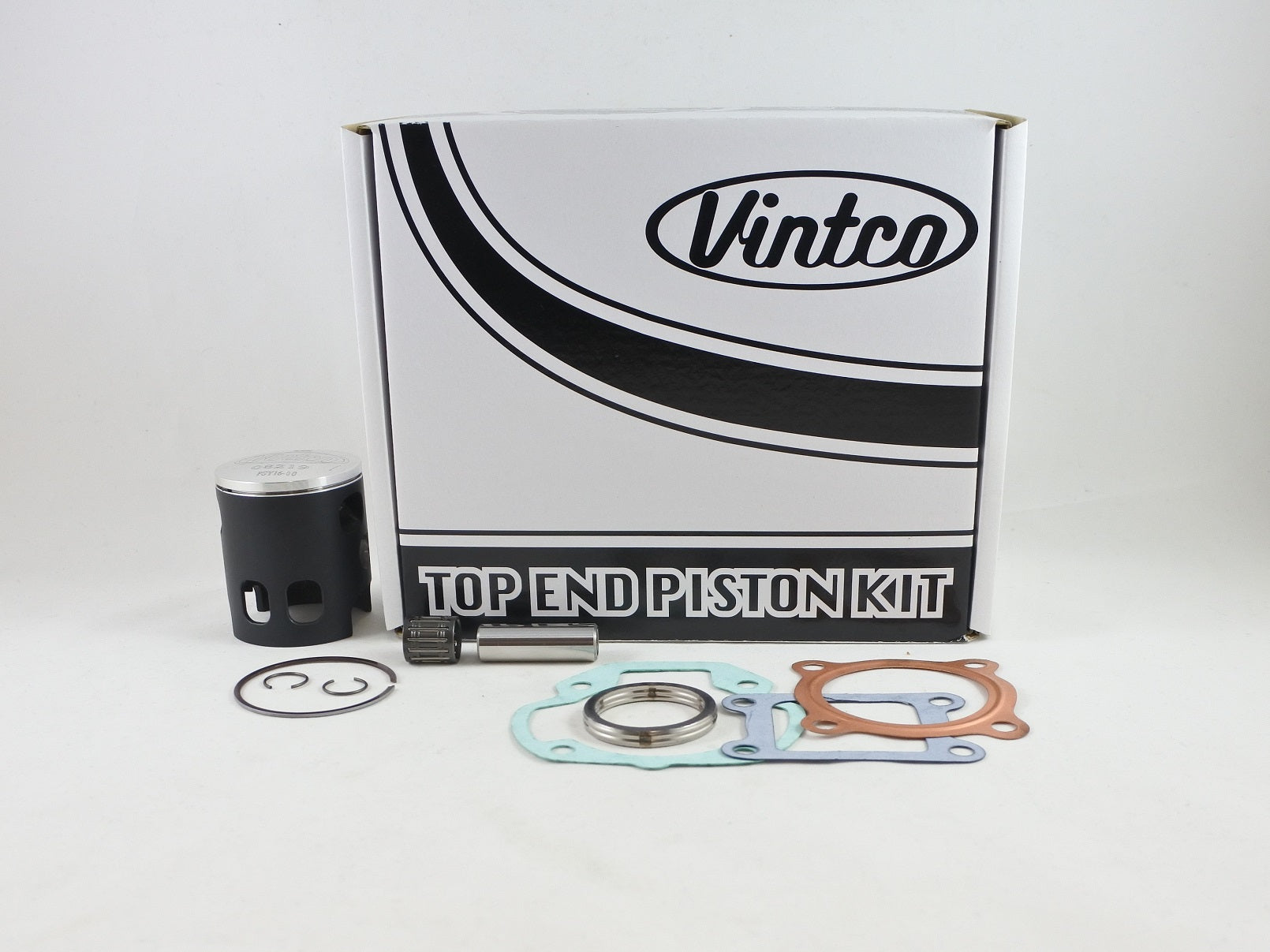

Top end piston kit for the 1976 Yamaha LB80IIA, supplied as a standard-size set with a forged piston, complete gasket set and wrist pin bearing for top-end service work. The piston is made in Germany and finished with an MOS2 coating to assist break-in, and the kit price includes a 10% discount compared with purchasing the included items individually.

Features

• Top end kit for engine service and rebuild work
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• MOS2 coating assists break-in
• Standard-size replacement kit
• Kit price includes 10% discount over individual items

Specifications

• VintCo Part Number: KTY56-00
• Piston size: 46.95 mm
• Nominal piston size: 47 mm standard
• Clearance: 0.05 mm
• Forged piston
• Made in Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 2F4-11181-00-00
• Cylinder Base Gasket: 440-11351-01-00
• Reed Valve Gasket: 3MT-13621-00-00
• Exhaust Pipe Gasket: 3MT-14613-00-00

Vehicle Fitments

• 1976 Yamaha LB80IIA
