Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0
  • Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0
  • Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0
  • Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0
  • Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0
Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0

Top End Piston Kit 76-76 Yamaha It YZ 400 86mm 1.0mm Over Vintco KTY50-1.0

£265.41 GBP
Taxes included. Shipping calculated at checkout.

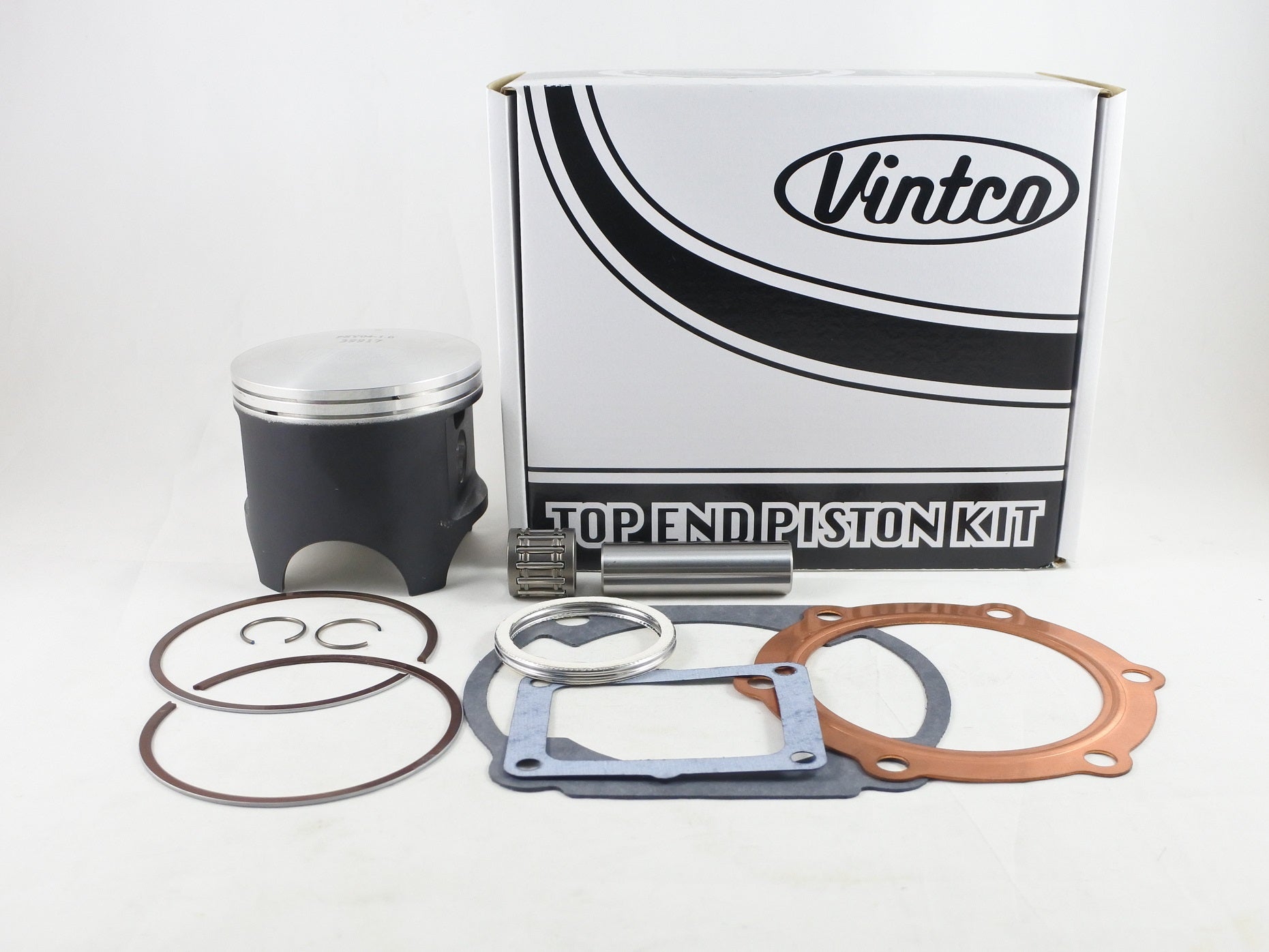

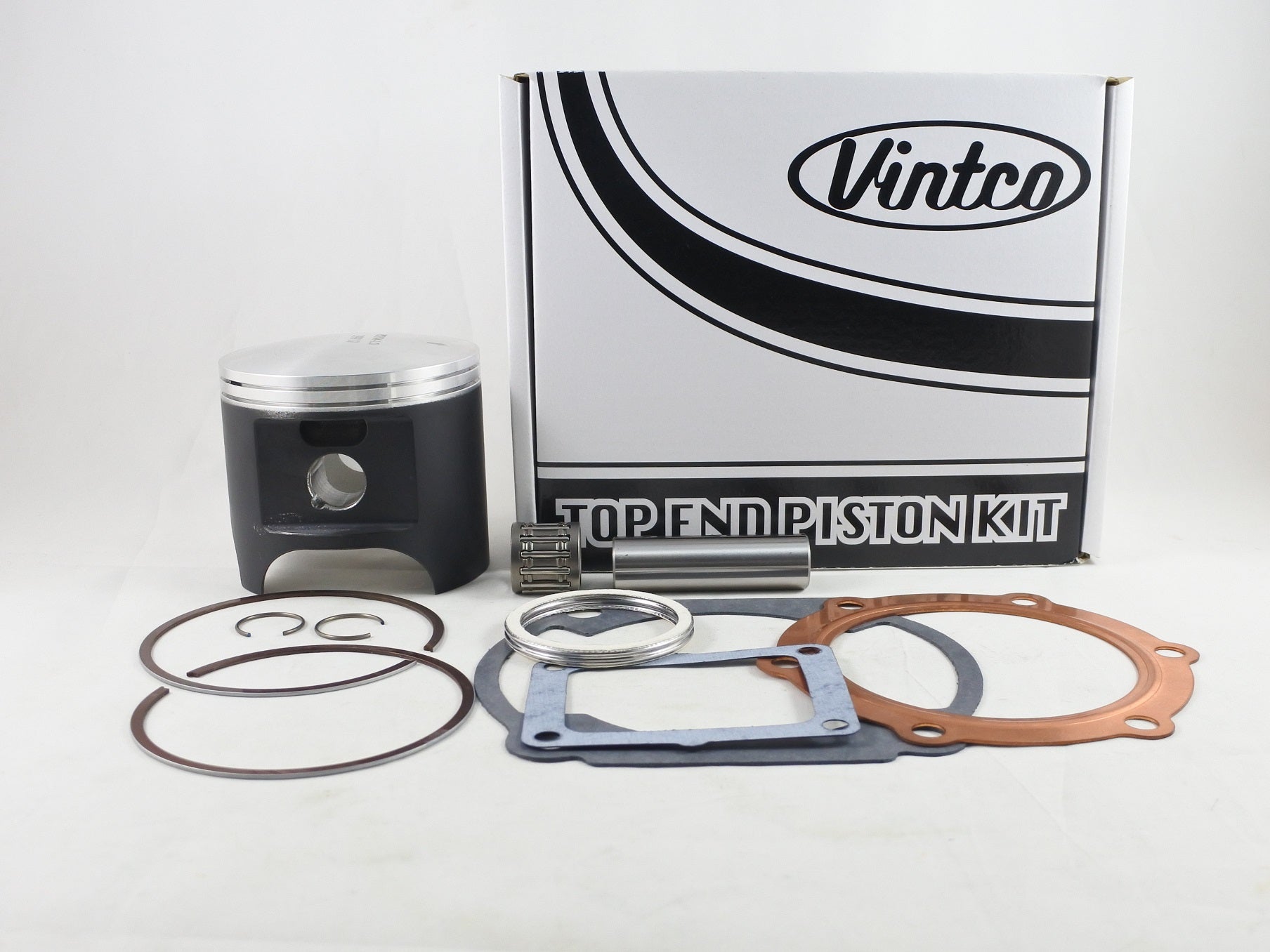

This VintCo top end piston kit is for 1976 Yamaha YZ400 and IT400 models and includes a forged piston, gasket set and wrist pin bearing for top end service. The kit is supplied as an 86 mm, 1.0 mm oversize assembly, and the kit price includes a 10% discount compared with purchasing the items individually.

Features

  • Complete top end piston kit
  • Kit price includes 10% discount over individual items
  • Forged piston
  • Made in Germany
  • MOS2 coated for break-in
  • Includes cylinder head gasket
  • Includes cylinder base gasket
  • Includes intake gasket
  • Includes two exhaust pipe gaskets
  • Includes wrist pin bearing

Specifications

  • VintCo Part Number: KTY50-1.0
  • Piston size: 86 mm
  • Oversize: 1.0 mm over
  • Piston measurement: 85.92 mm
  • Clearance: 0.08 mm

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 500-11181-00-00
  • Cylinder base gasket: 500-11351-09-00
  • Intake gasket: 8Y7-13556-01-00
  • Exhaust pipe gasket: 214-14613-09-00
  • Exhaust pipe gasket: 248-14623-10-00

Vehicle Fitments

  • 1976 Yamaha YZ400
  • 1976 Yamaha IT400
