TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5
  • TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5
  • TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5
  • TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5
  • TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5
TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5

TOP END PISTON KIT 76-76 YAMAHA DT 125 57.5mm 1.5mm OVER VINTCO KTY70-1.5

£156.75 GBP
Taxes included. Shipping calculated at checkout.

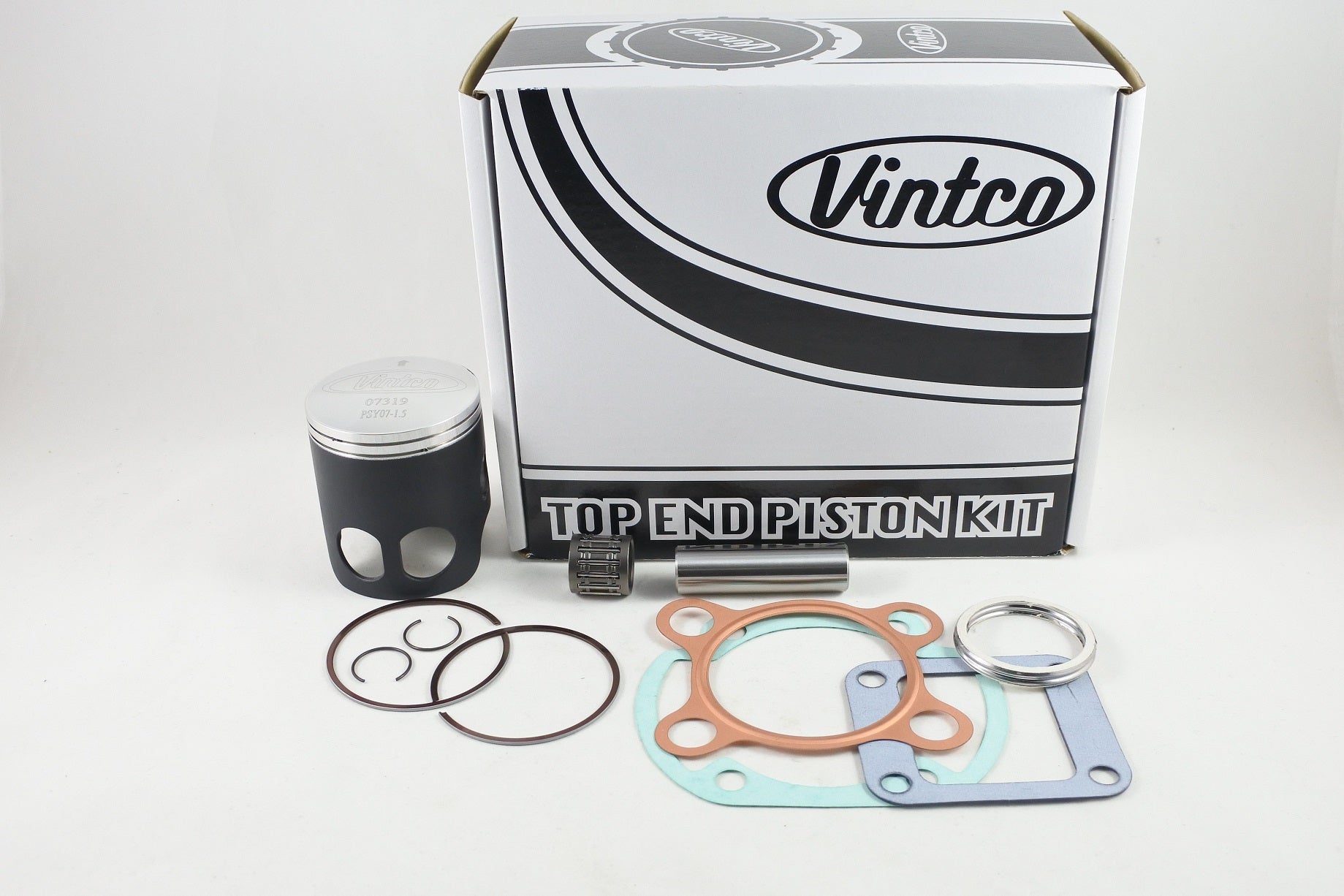

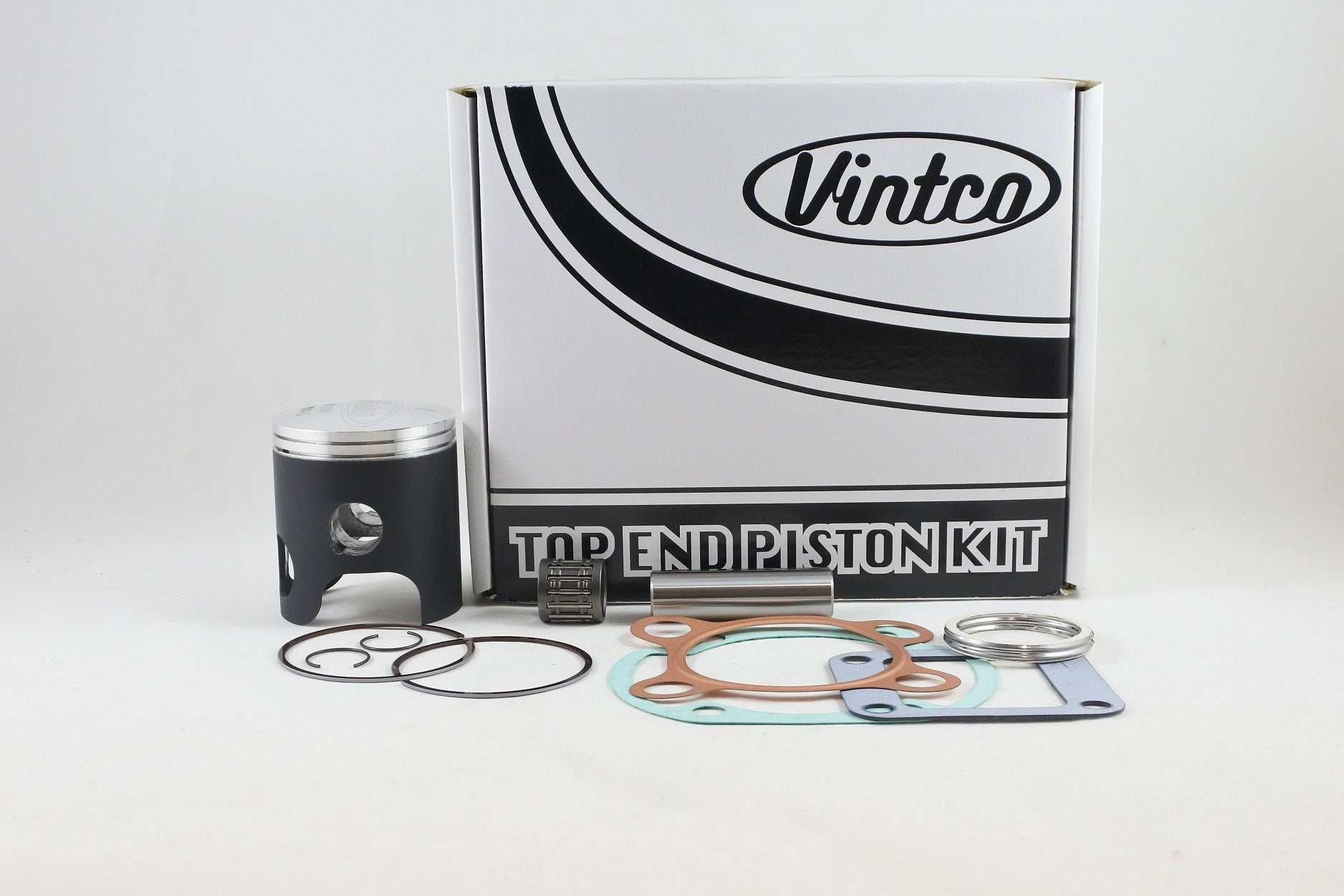

This top end piston kit is designed for the 1976 Yamaha DT125 and provides the main components required for a top-end rebuild in a 1.5 mm oversize configuration. The kit includes a forged piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

  • Top end piston kit for engine top-end rebuilds
  • Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
  • MOS2-coated piston to assist during break-in

Specifications

  • VintCo Part Number: KTY70-1.5
  • Piston construction: Forged
  • Country of manufacture: Germany
  • Coating: MOS2
  • Oversize: 1.5 mm
  • Piston size: 57.5 mm
  • Piston diameter: 57.44 mm
  • Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

  • Head gasket: 248-11181-00-00
  • Base gasket: 1WE-11351-00-00
  • Reed valve gasket: 87A13621-00-00
  • Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

  • 1976 Yamaha DT125
