TOP END PISTON KIT 76-76 YAMAHA DT 125 56mm STANDARD VINTCO KTY70-00

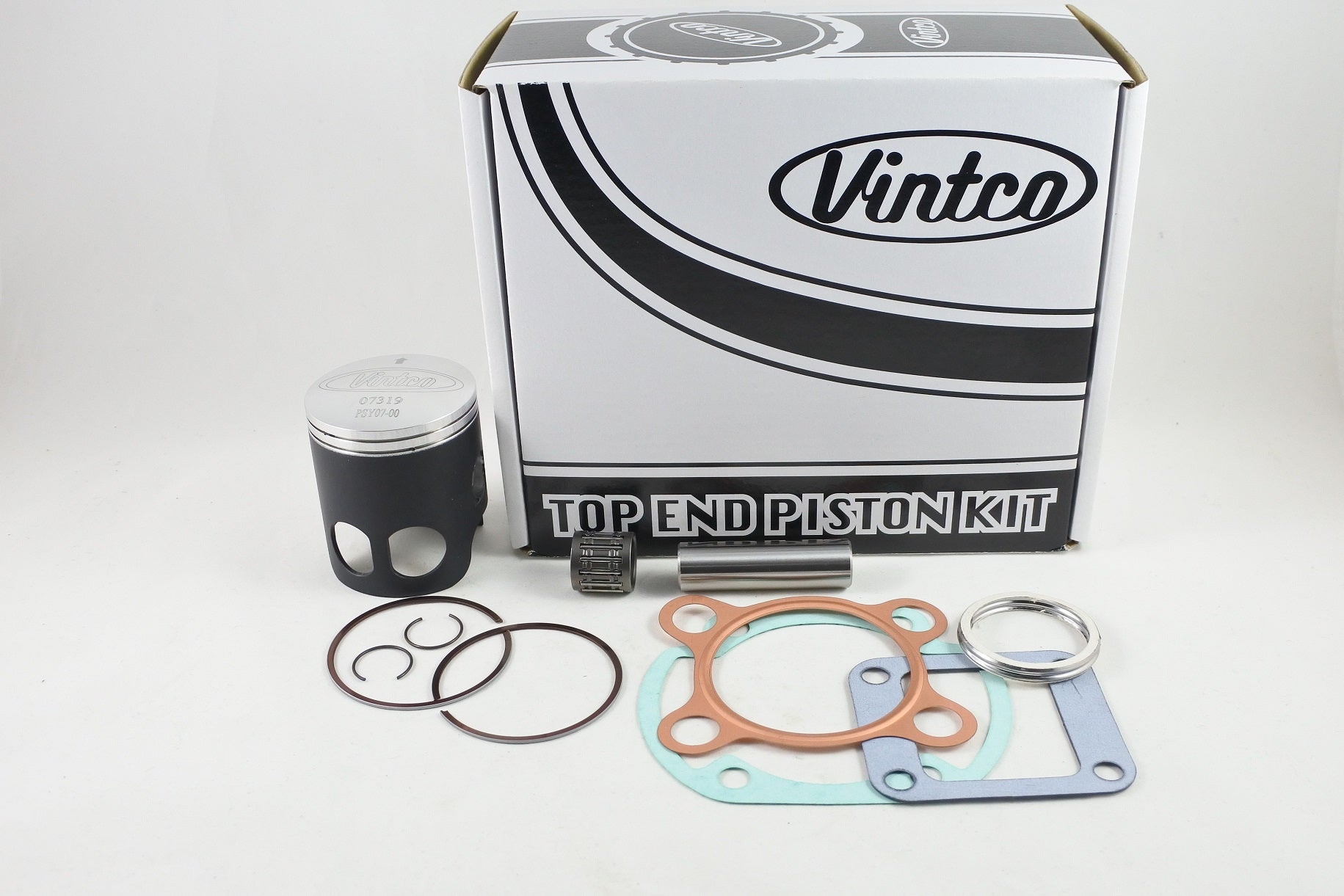

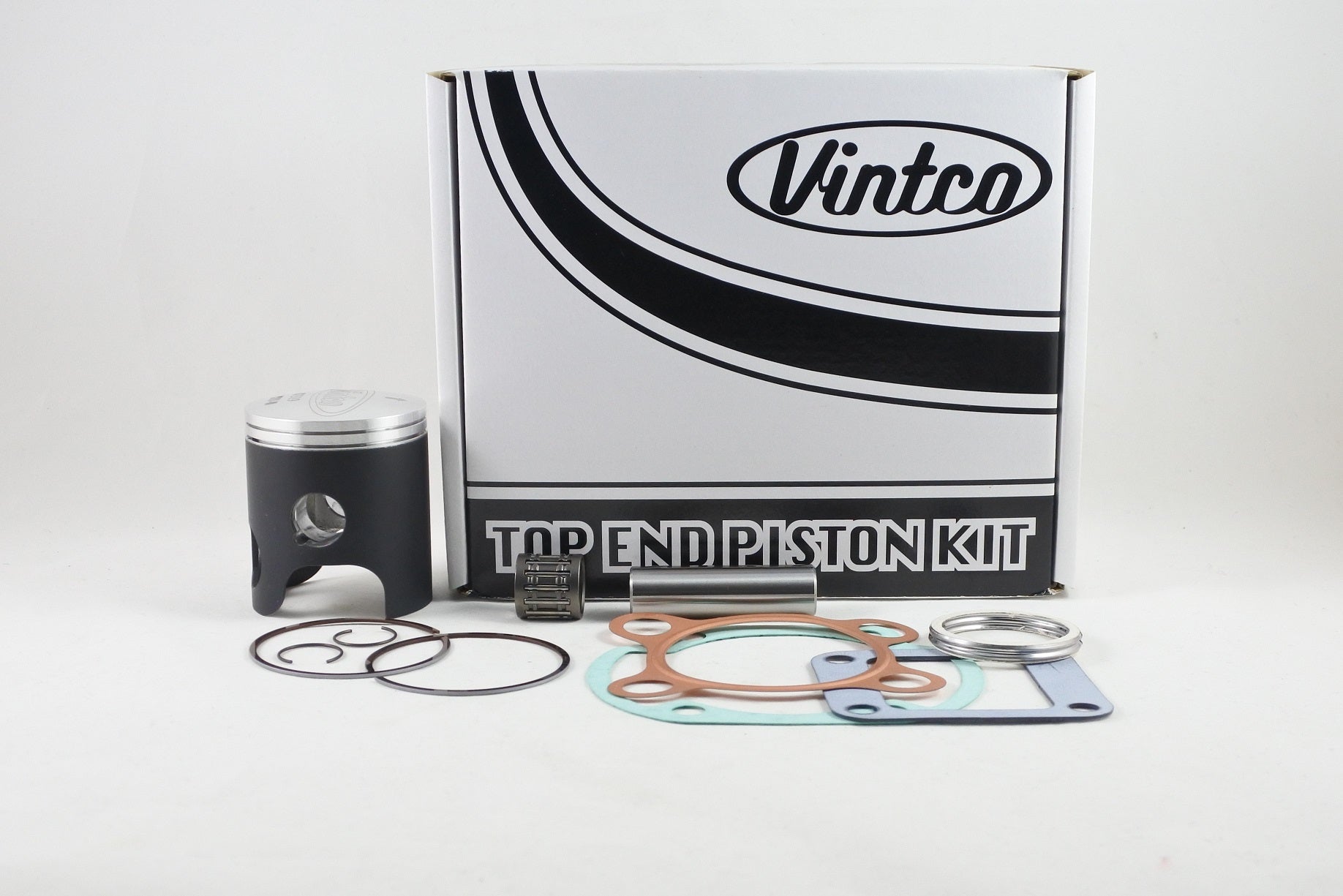

This top end piston kit is for the 1976 Yamaha DT125 and is supplied as a standard-size 56 mm assembly. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, along with the required head, base, reed valve and exhaust pipe gaskets, plus a wrist pin bearing. The kit price reflects a 10% reduction compared with purchasing the individual items separately.

Features

• Complete top end kit for standard-size rebuild work
• Includes piston, head gasket, base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
• Supplied for top end service on the specified model

Specifications

• VintCo Part Number: KTY70-00
• Piston size: 56 mm standard
• Piston diameter: 55.94 mm
• Clearance: 0.06 mm
• Piston type: Forged
• Coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 248-11181-00-00
• Base gasket: 1WE-11351-00-00
• Reed valve gasket: 87A13621-00-00
• Exhaust pipe gasket: 3PA-14613-10-00

Vehicle Fitments

• 1976 Yamaha DT125
