TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5
  • TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5
  • TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5
  • TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5
  • TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5
TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5

TOP END PISTON KIT 75-76 YAMAHA DT 400 85.5mm 0.5mm OVER VINTCO KTY48-0.5

£265.41 GBP
Taxes included. Shipping calculated at checkout.

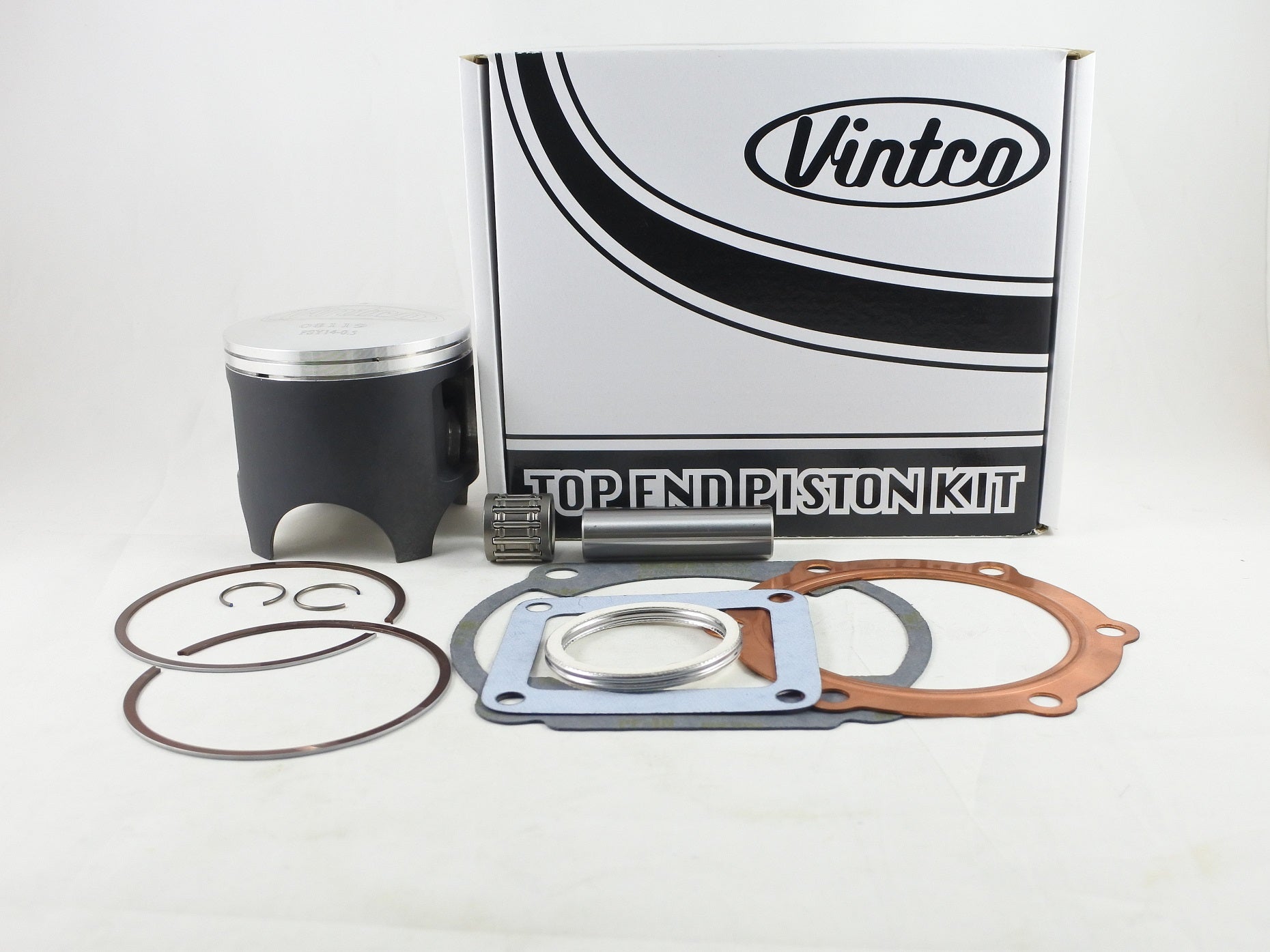

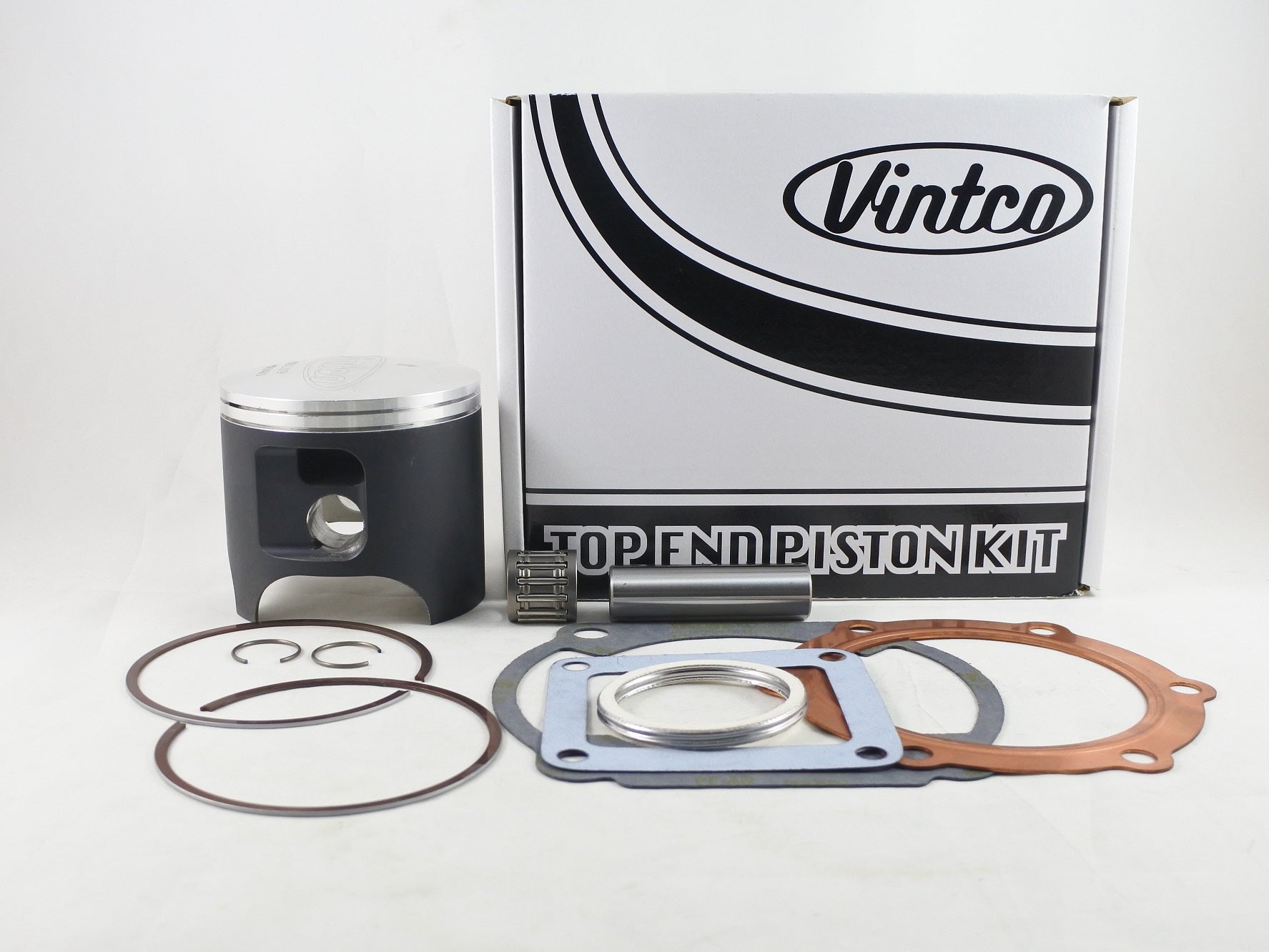

This top end piston kit is for 1975-1976 Yamaha DT400 models and includes the main components required for top-end service: a forged piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, and wrist pin bearing. The kit is supplied in 85.5 mm nominal size with 0.5 mm oversize, and the kit price reflects a 10% saving compared with purchasing the items individually.

Features

  • Complete top end kit for Yamaha DT400 models
  • Includes piston, cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, and wrist pin bearing
  • MOS2-coated piston to assist during break-in

Specifications

  • VintCo Part Number: KTY48-0.5
  • Nominal size: 85.5 mm
  • Oversize: 0.5 mm over
  • Piston diameter: 85.42 mm
  • Clearance: 0.08 mm
  • Forged piston
  • Made in Germany

Cross-Reference OEM Part Numbers

  • Cylinder head gasket: 500-11181-00-00
  • Cylinder base gasket: 500-11351-09-00
  • Intake gasket: 363-13621-01-00
  • Exhaust pipe gasket: 214-14613-09-00

Vehicle Fitments

  • 1975 Yamaha DT400
  • 1976 Yamaha DT400
