Top End Piston Kit 75-76 Honda CR 250 71.5mm 1.5mm Over Vintco KTH07-1.5

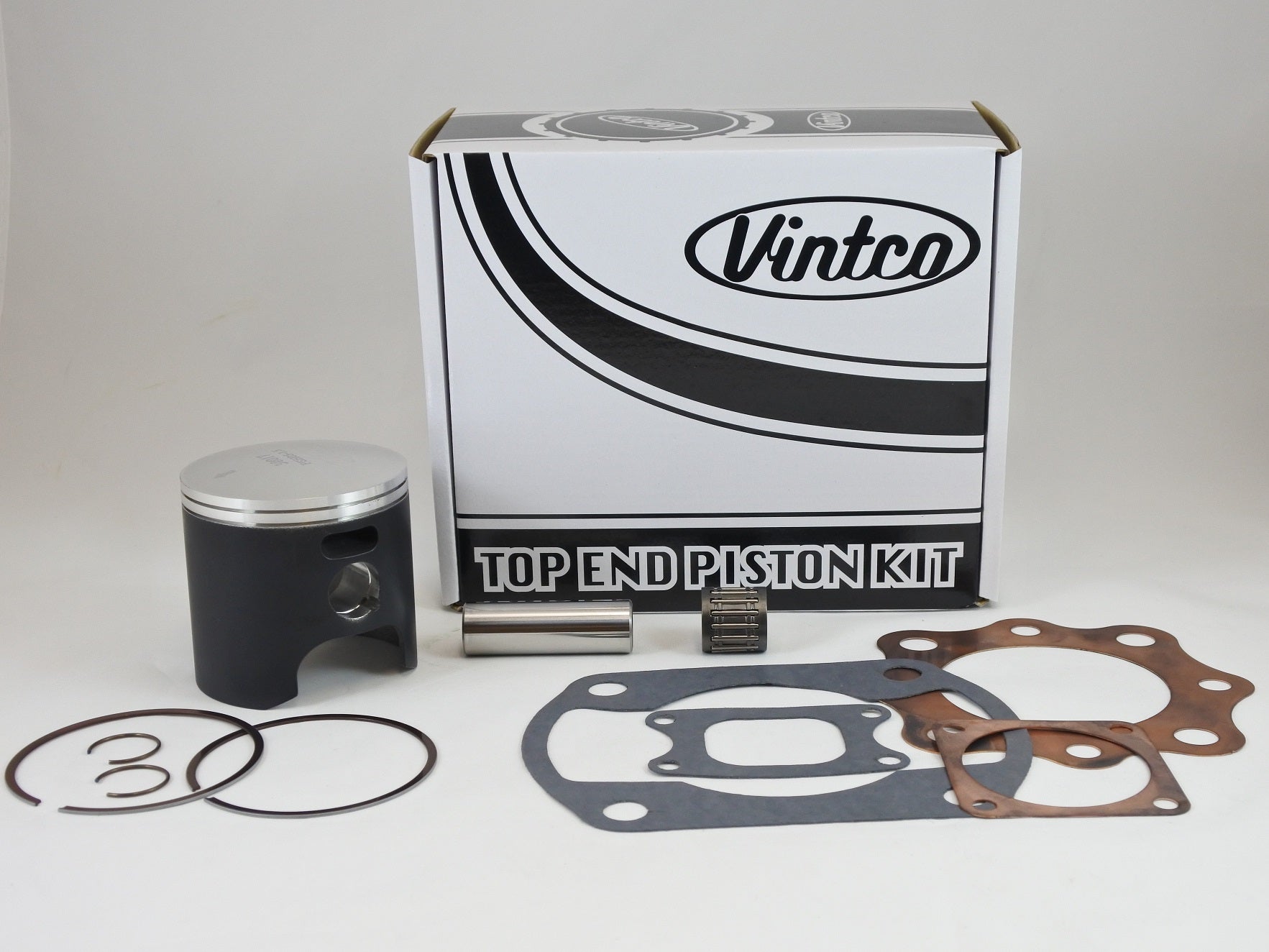

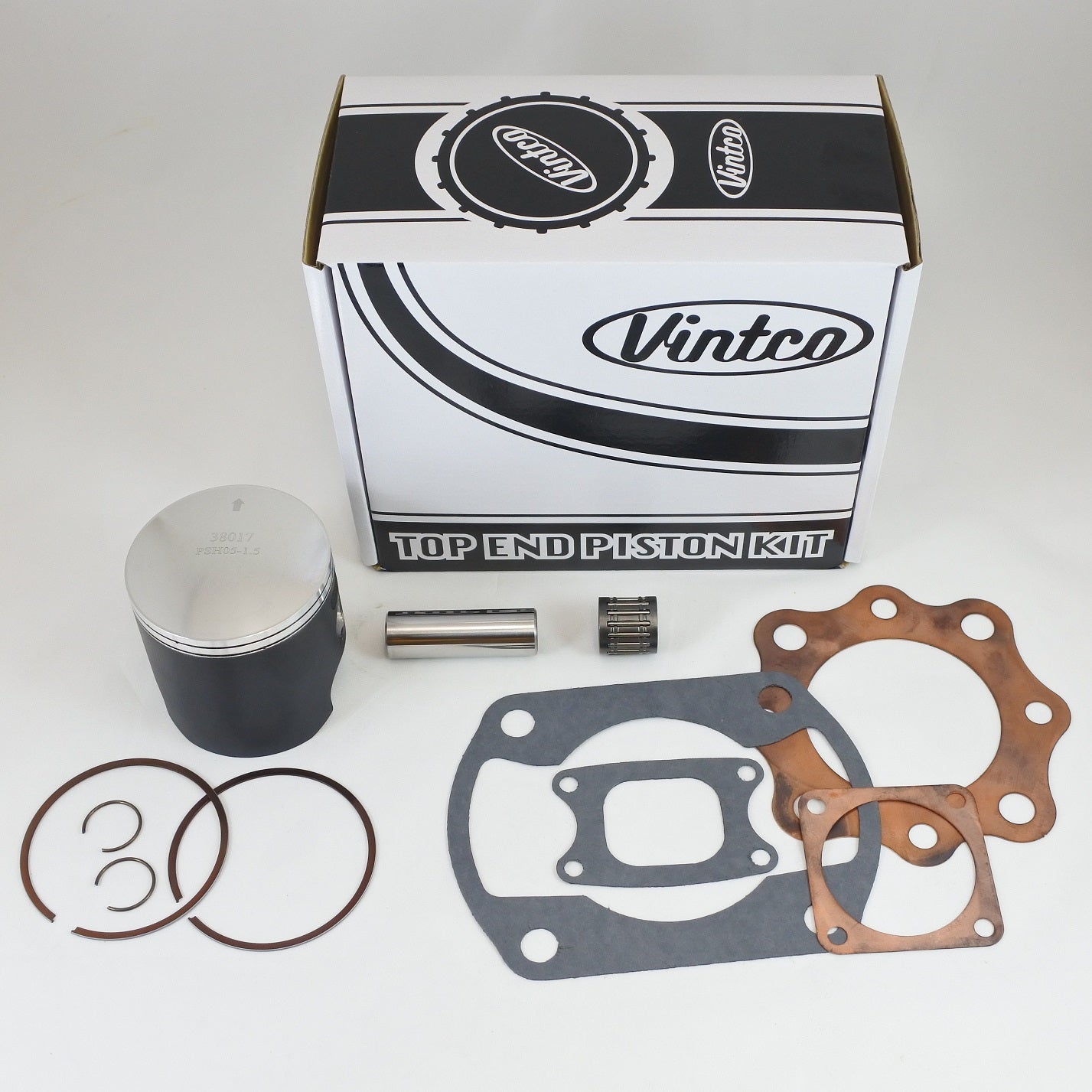

This new VintCo KTH07-1.5 top end piston kit is a complete rebuild set for the 1975-1976 Honda CR250, supplied for 71.5 mm (+1.5 mm oversize) applications. It includes a forged piston with rings, pin and clips, a top end bearing, and a full top-end gasket kit covering the head, base, intake and exhaust. The components are manufactured using modern materials and production methods to provide OEM-equivalent or better fitment and performance, and the kit pricing is 10% lower than purchasing the included items individually.

Features

• Complete top end rebuild kit
• Intended for 1975-1976 Honda CR250 models
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket kit includes head gasket, base gasket, intake gasket and exhaust gasket
• Designed for straightforward, cost-effective rebuild work
• Manufactured using modern materials and manufacturing techniques
• Produced for OEM-equivalent or better fitment and performance
• Additional size options are available
• Kit pricing is 10% lower than purchasing the included items individually

Specifications

• VintCo Part Number: KTH07-1.5
• Product type: Top End Piston Kit
• Piston size: 71.5 mm
• Oversize: +1.5 mm
• Piston measured size: 71.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2 coated for break-in
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-357-020
• Base gasket: 12191-381-306
• Intake gasket: 16222-381-000
• Exhaust gasket: 18359-357-000
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1975 Honda CR250
• 1976 Honda CR250
